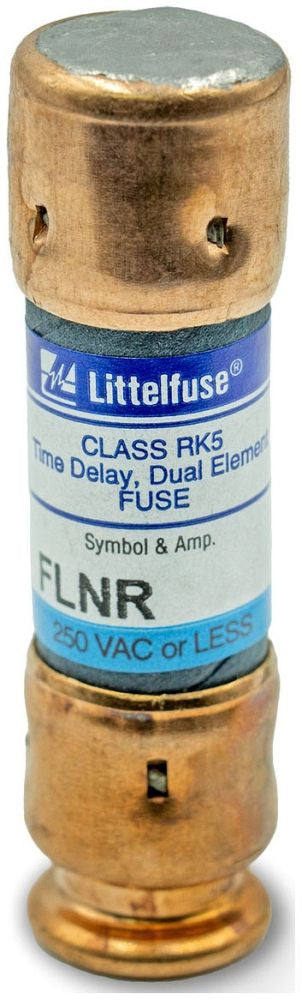

Littelfuse FLNR030 Time Delay Fuse 30 Amp 250 VAC 125 VDC Class RK5

Product Description

The Littelfuse FLNR030 is a reliable time delay fuse designed for general use in industrial applications. This fuse is rated at thirty amps and operates at two hundred fifty volts alternating current or one hundred twenty-five volts direct current. It is characterized as a Class RK5 dual-element time delay fuse, which offers superior protection for various electrical circuits, particularly those associated with motors and heavy machinery.

• Rated voltage: 250 VAC and 125 VDC
• High interrupting rating of 200,000 amps
• Time delay feature for reliable protection against transient overcurrents

Product Highlights

This fuse is suitable for service entrance switches, motor control mains, and switchboard applications. Its efficient design helps ensure safety by interrupting excessive current flows, thus protecting equipment from potential damage.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: FLNR030

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 250 VAC / 125 VDC
• Interrupting Rating: 200,000 A
• Type: Class RK5
• Response Time: 10 seconds
• Dimensions: 0.56 in diameter x 2 in length
• Terminal Type: Ferrule
• Application: General Purpose, Industrial Controls
• Special Features: Time-Delay
