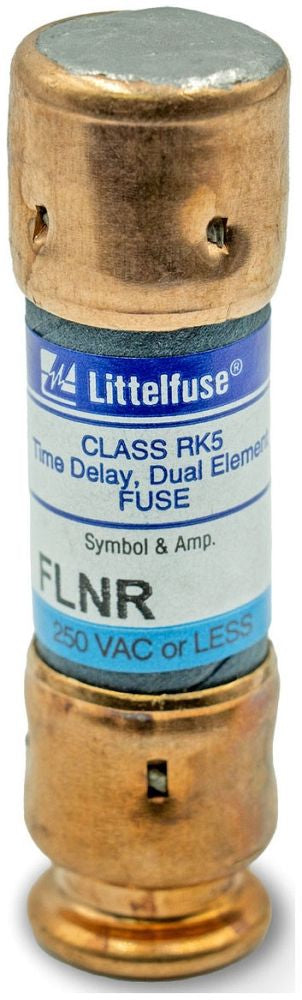

Littelfuse FLNR03.2 Class RK5 Dual Element Time-Delay Fuse 3.2A (2 in x 9/16 in) FRN-R

Product Description

The Littelfuse FLNR03.2 is a Class RK5 dual-element, time-delay (slo-blo) cartridge fuse rated 3.2 A for 250 V AC and 125 V DC applications. It provides current-limiting protection with an AC interrupt rating of 200,000 A and a DC interrupt rating of 20,000 A, and is sized 2 in long by 9/16 in diameter for use in rejection-style fuse holders and industrial cartridge fuse applications.

• Rated 3.2 A continuous; time-delay dual-element construction tolerates temporary inrush currents and motor starts
• Voltage rating 250 V AC / 125 V DC with interrupting rating 200 kA AC and 20 kA DC; current-limiting behavior
• Cylindrical fiberglass body, 2 in length x 9/16 in diameter; rejection-style mounting for fuse blocks, holders, or clips

Product Highlights

Class RK5, time-delay, current-limiting cartridge fuse for motor circuits, switchboard mains, distribution panels, and industrial control applications

Product Information

Standard Information

• Brand: LITTELFUSE
• Manufacturer Part Number: FLNR03.2
• Country of Origin: Mexico
