Littelfuse FLNR.800 Fuse 0.8A

Product Description

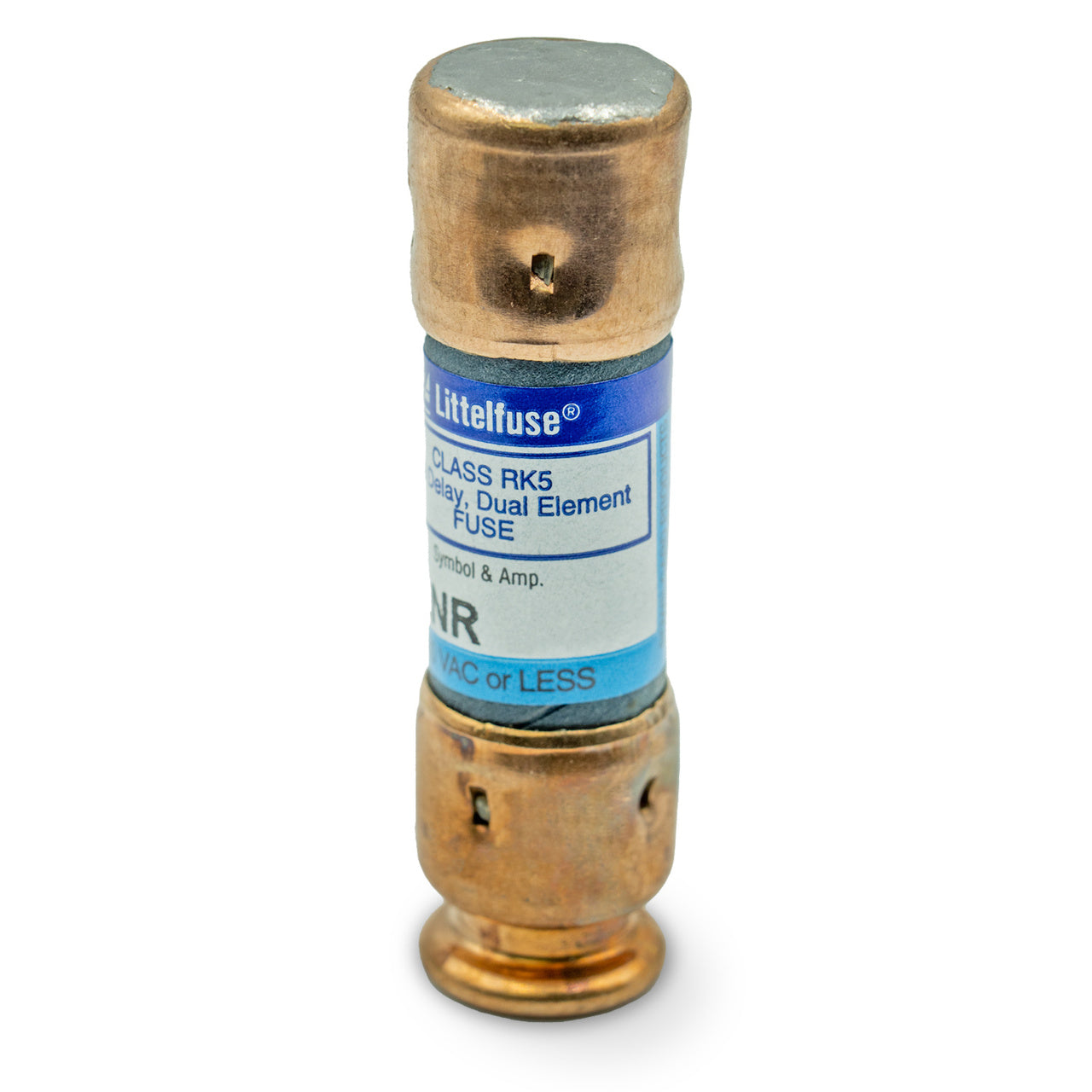

The Littelfuse FLNR.800 is a Class RK5 fuse with an ampere rating of 0.8 and cartridge-style construction. The dual-element design provides advanced short circuit and overload protection. It has an interrupting rating of 300kA AC and 20kA DC, suitable for industrial applications.

• Class RK5 fuse
• Dual-element design for short circuit and overload protection
• Time Delay

Product Highlights

The Littelfuse FLNR.800 fuse is ideal for industrial applications requiring reliable circuit protection.

Product Information

Standard Information

• Brand: Littelfuse
• Manufacturer Part Number: FLNR.800

Technical Specifications

• Current Rating (Continuous) in Amps: 0.8
• Interrupting Rating: 300 kA Ac; 20 kA Dc
• Opening: Slo-Blo/Time Lag (T)/Time Delay
• Maximum AC Voltage (V): 250
• Maximum DC Voltage (V): 125
• Size: Industrial Cartridge
• Family style: Dual Element Fuse
• Fuse Class: Class RK5
• Indicating: No
• Mounting Method: Fuse Block / Clip / Holder
• Manufacturer: Littelfuse
• Part Number: FLNR.800
• Amps: 0.8 Amps
• Brand: Littelfuse
• Series: POWR-GARD FLNR
• Applications: Electrical, Industrial
• Class: RK5
• Part Status: Active
• Approval Agency: CE, CSA, QPL, UL
• Breaking Capacity @ Rated Voltage: 200kA AC, 20kA DC
• Fuse Type: Cartridge
• Package / Case: Cartridge, Non-Standard
• Current Rating (Amps): 800mA
• Size / Dimension: 0.563" Dia x 2.000" L (14.30mm x 50.80mm)
• Voltage Rating - AC: 250 VAC
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): 1 (Unlimited)
• HTSUS: 8536.10.0040
• REACH Status: REACH Unaffected
• Voltage Rating - DC: 125 VDC
• Response Time: Slow Blow
