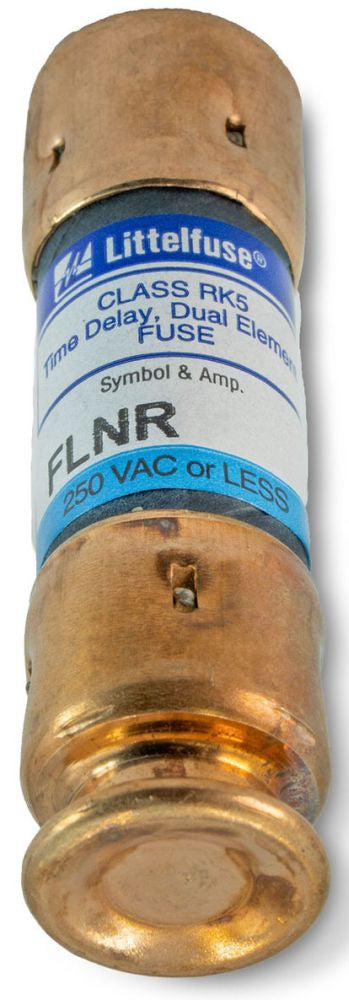

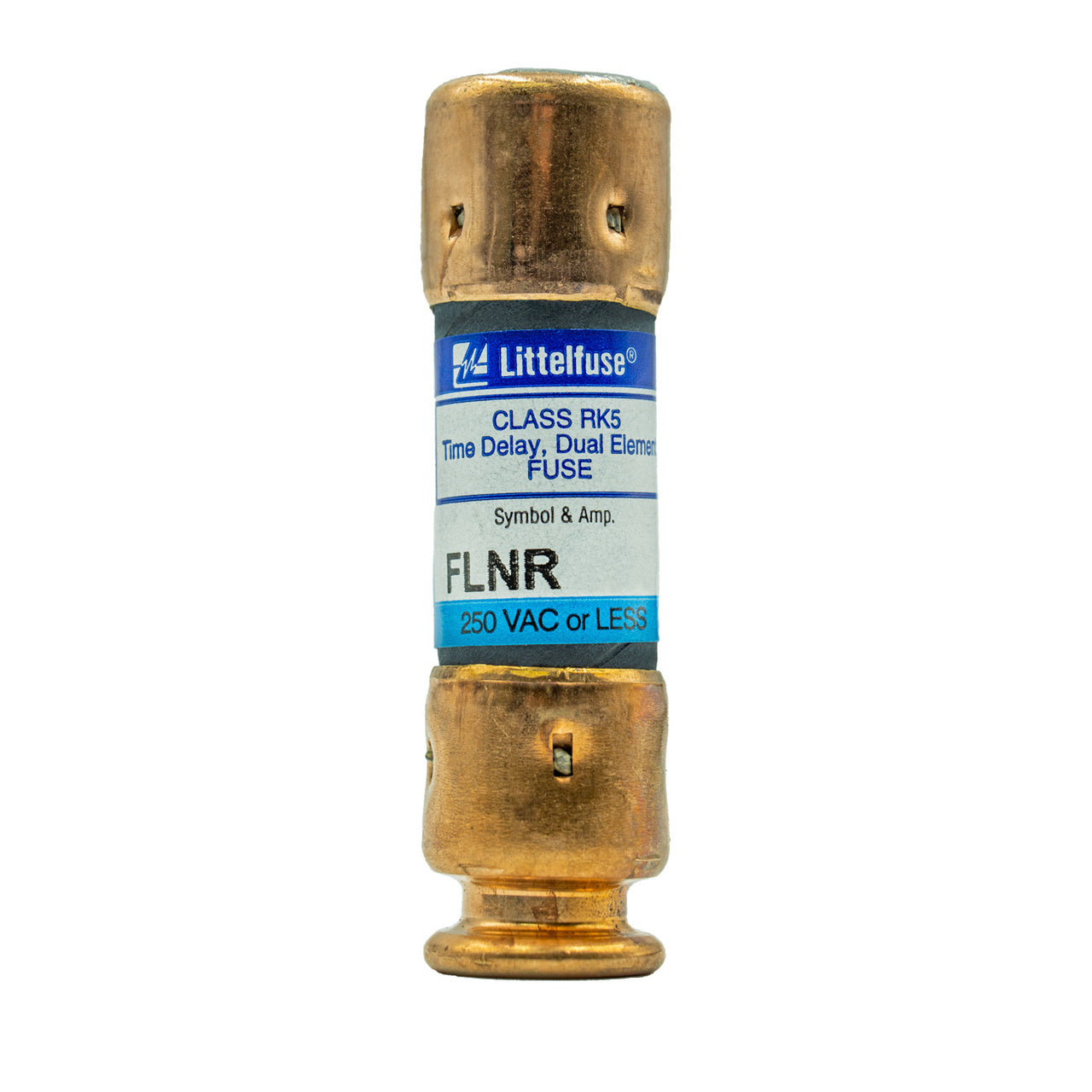

Littelfuse FLNR.250 1/4Amp 250V RK5 Time Delay Fuse

Product Description

The Littelfuse FLNR.250 is a 1/4Amp 250V RK5 time delay fuse. It provides reliable interruption of over currents up to 200 kA and offers faster short circuit protection. Automated manufacturing ensures accurate response to overloads and short circuits. This fuse is UL 248-12 and CSA LR29862 certified.

• Reliable interruption of all over currents up to 200 kA
• Faster acting short circuit protection
• Accurate and reliable response to overloads and short circuits

Product Highlights

The Littelfuse FLNR.250 is a 1/4Amp 250V RK5 time delay fuse with reliable interruption and accurate overload response.

Product Information

Standard Information

• Brand: LITTELFUSE
• Manufacturer Part Number: FLNR.250
• Country of Origin: MX

Technical Specifications

• Voltage Rating: 250 VAC/125 VDC
• Current Rating: 0.25 Ampere
• Class: RK5
• Interrupt Rating: 200/20 kA
• Terminal Type: Ferrule
• Body Size: 9/16 in Dia x 2 in L
• Body Type: Cylindrical
• Element: Dual
• Frequency Rating: 50/60 Hz
• Indicating/Non-Indicating: Non-Indicating
• Mounting Type: Holder
• Rejection/Non-Rejection: Rejection
• Response Time: 10 s
• Series: FLNR
• Type: Time Delay
• Application: Service Entrance Switches, Transformers, Switchboard Mains and Feeders, Motor Control Central Mains, Motor Branch Circuits and All General Purpose Circuits Applications
• Opening: Time Delay
• Maximum AC Voltage (V): 250
• Size: Industrial Cartridge
• Fuse Class: Class RK5
• Interrupt Amperage: 200000
• Interrupt Voltage: 250
