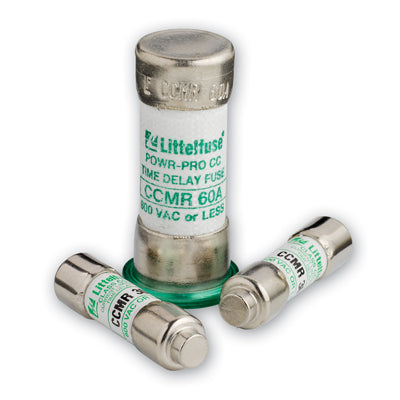

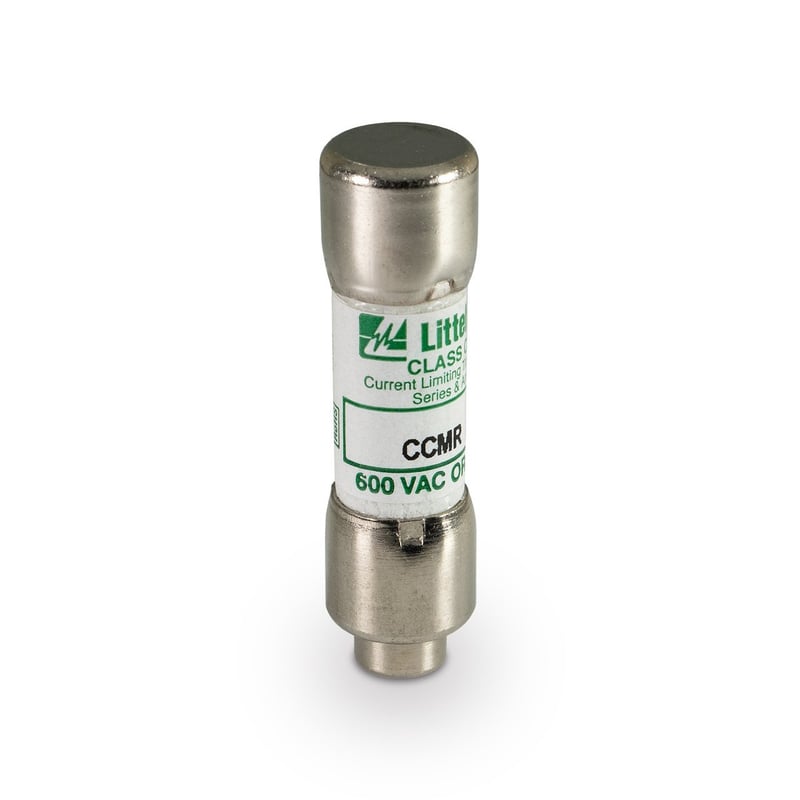

Littelfuse CCMR03.5TXP Time Delay Fuse 600V 3.5A

Product Description

The Littelfuse CCMR03.5TXP is a time delay fuse designed for motor and motor branch circuit protection applications. It has an amperage rating of three point five amps and operates at a voltage of six hundred volts AC or three hundred volts DC. This fuse features a dual element design, allowing it to withstand sustained starting currents from small motors effectively.

• Compact design suitable for motors up to 40 horsepower
• Time delay rating for reliable performance under high inrush conditions
• UL Listed Class CC fuse known for current limiting capabilities

Product Highlights

This fuse offers enhanced protection for motors, minimizing the risk of overload and short circuits. Its compact and efficient design is ideal for a wide range of applications that use electric motors.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: CCMR03.5TXP

Technical Specifications

• Amperage Rating: 3.5 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 20/200 kA
• Frequency Rating: 50/60 Hz
• Body Type: Cartridge
• Body Size: 0.41 in Dia x 1.5 in L
• Class: CC
• Element: Dual
• Terminal Type: Ferrule
• Mounting Type: Holder
