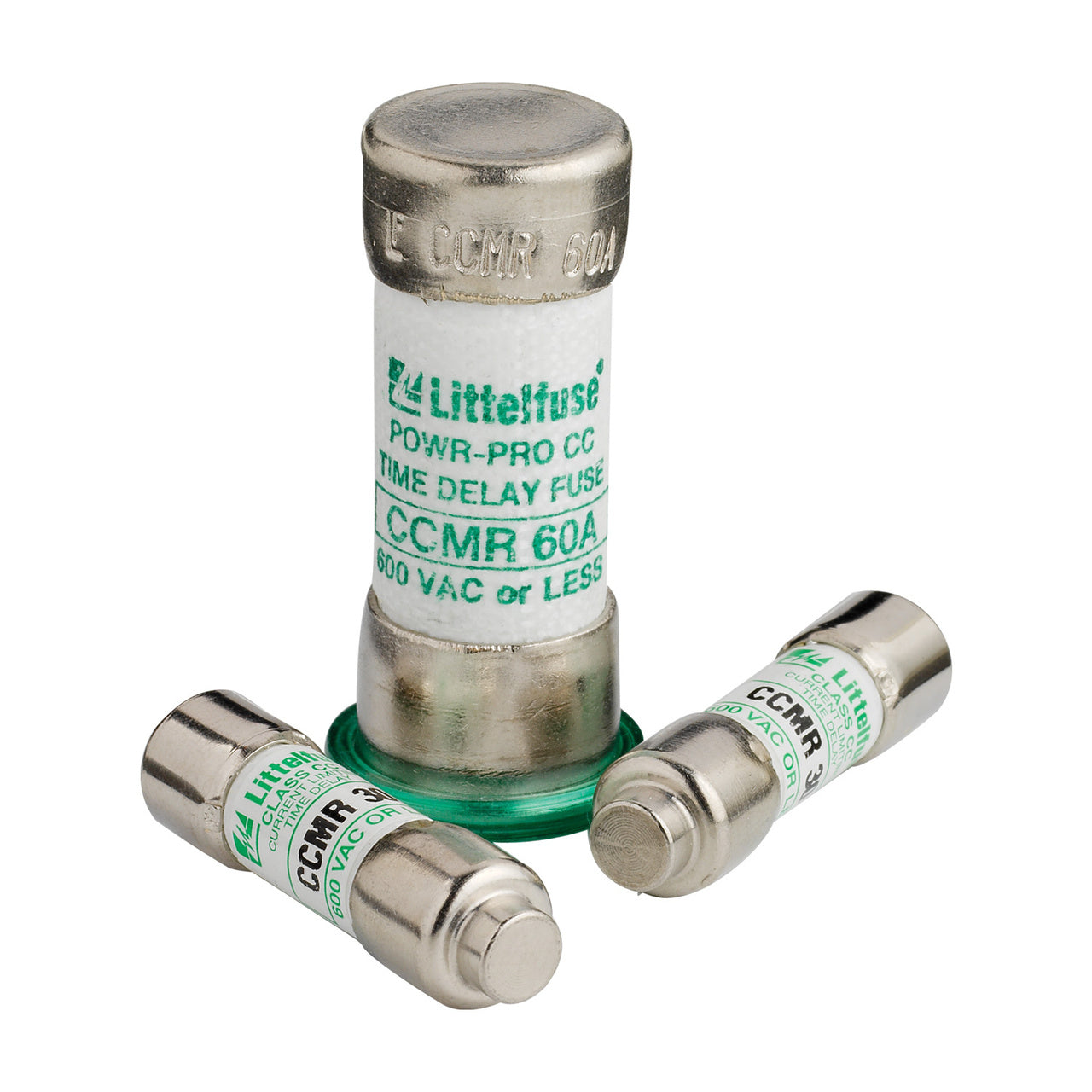

Littelfuse CCMR010.TXP Time Delay Fuse 600V 10 Amp Class CC

Product Description

The Littelfuse CCMR010.TXP is a Time Delay Class CC Fuse designed for reliable circuit protection in industrial environments. Ideal for motor circuits up to 40 HP, this dual-element fuse offers superior performance with its compact design.

• 600V voltage rating with a 10 Amp current rating
• Time delay feature for transient and temporary overload protection
• Compact design suitable for space-constrained applications

Product Highlights

Manufactured by Littelfuse, the CCMR010.TXP features a time-delay mechanism that enhances motor protection by allowing temporary inrush currents to pass without tripping. Its highly current-limiting design minimizes the effects of short-circuit currents, providing faster protection than mechanical devices.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: CCMR010.TXP
Date First Available: June 22, 2017

Technical Specifications

• Voltage Rating: 600VAC/250VDC
• Amperage Rating: 10 Amp
• Interrupting Rating: 200,000A@600VAC
• Type: Time Delay/Class CC
• Dimensions: 0.41 in Dia x 1.5 in L
