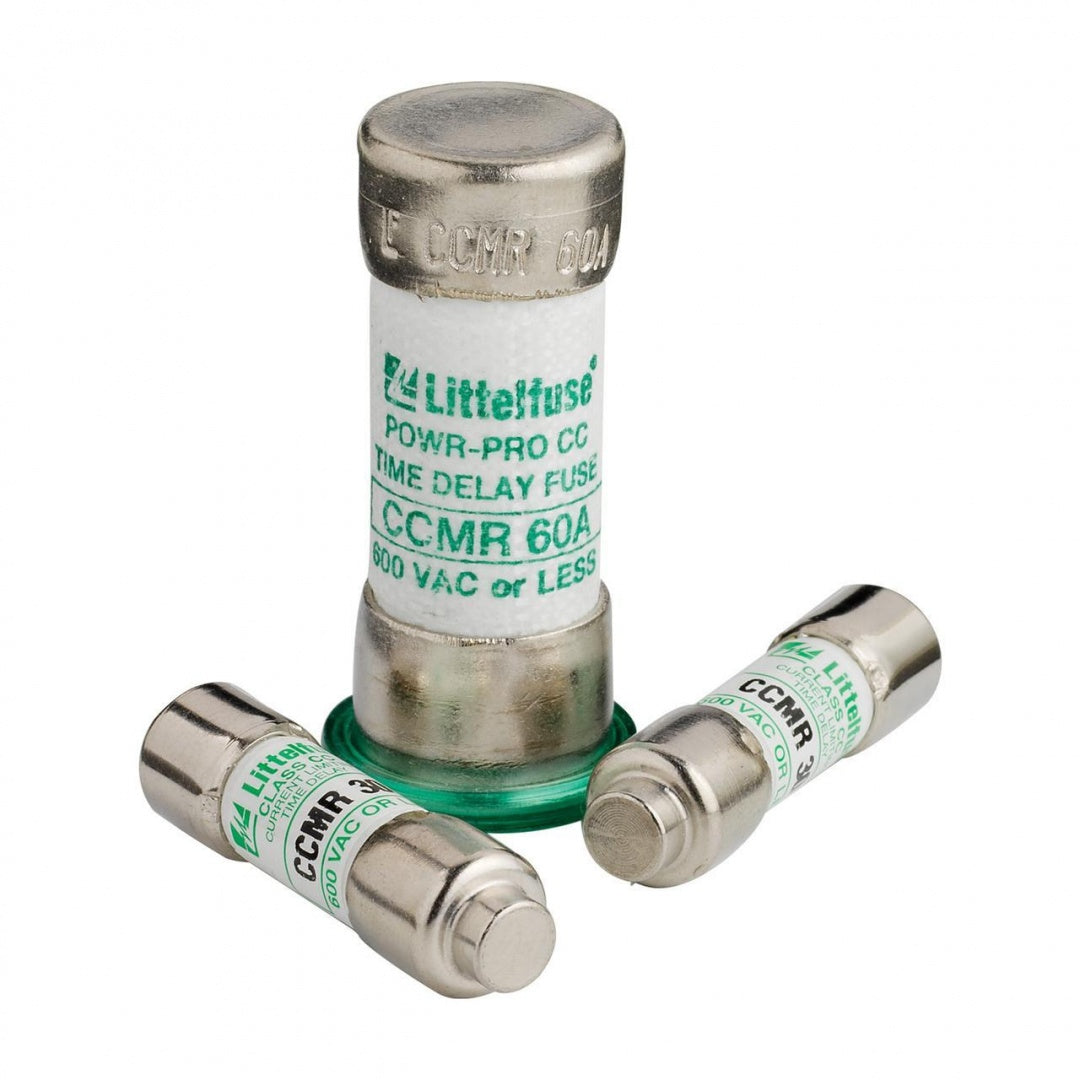

Littelfuse CCMR01.8TXP Class CC Dual Element Time Delay Fuse - ROHS

Product Description

Littelfuse CCMR01.8TXP is a Class CC dual element time delay fuse designed for effective circuit protection. This fuse operates at an amperage rating of one point eight Amps and can handle voltage ratings of six hundred VAC and two hundred fifty VDC.

• Type: Time Delay Fuse
• Class: CC
• Interrupt Rating: 20/200 kA

Product Highlights

This fuse is ideal for various motor and motor branch circuit protection applications. It features POWR-PRO performance, which offers high current limiting capabilities, making it suitable for demanding electrical environments.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Product Name: Class CC Dual Element Time Delay Fuse - ROHS

Technical Specifications

• Amperage Rating: 1.8 A
• Voltage Rating: 600 VAC/250 VDC
• Frequency Rating: 50/60 Hz
• Body Size: 0.41 in Diameter x 1.5 in Length
• Body Type: Cartridge
• Element: Dual
• Type: Non-Indicating
• Terminal Type: Ferrule
• Mounting Type: Holder
• Series: CCMR
• Interrupt Rating: 20/200 kA
