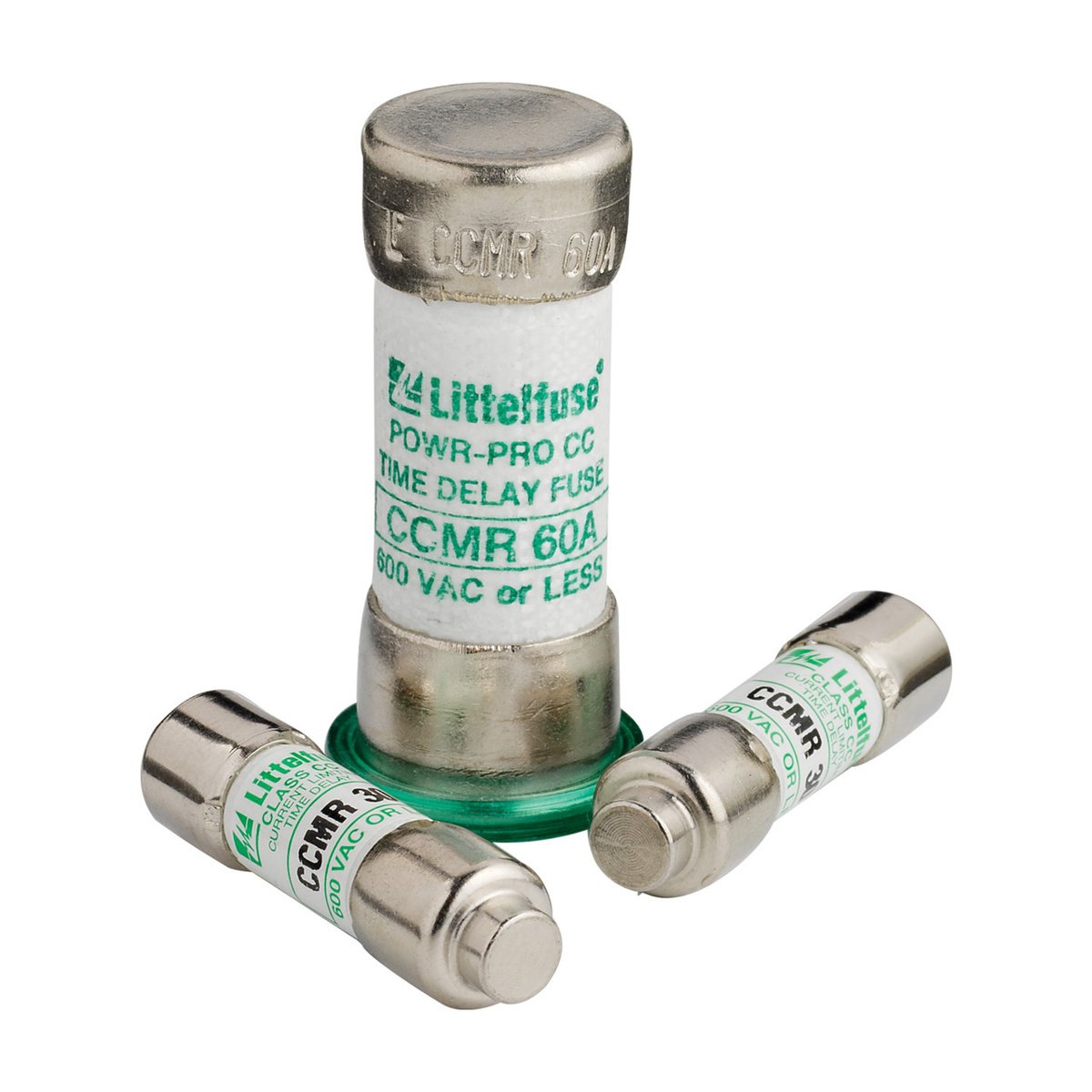

Littelfuse CCMR008.TXP Time Delay Fuse 8 AMP 600 VAC

Product Description

Littelfuse CCMR008.TXP is a time delay fuse designed for the protection of electrical circuits in motors up to forty horsepower. This fuse is suitable for applications that require sustained starting currents, providing reliable protection in compact spaces.

• Suitable for motors and branch circuits
• Rated for eight amperes with a voltage capability of six hundred volts AC
• Features dual element design for enhanced current limiting

Product Highlights

The CCMR series delivers superior protection against current surges while minimizing space requirements. These fuses are ideal for use in various electrical applications, ensuring compliance with UL and CSA standards.

Product Information

Standard Information

• Catalog Number: CCMR008.TXP
• Manufacturer: Littelfuse

Technical Specifications

• Amperage Rating: 8 A
• Voltage Rating: 600 VAC / 250 VDC
• Interrupting Rating: 200 kA
• Body Size: 0.41 inches diameter x 1.5 inches length
• Application: Motors and branch circuits
• Special Features: Time-delay operation
• Standards: UL 248-4, CSA Certified
• Country of Origin: Mexico
