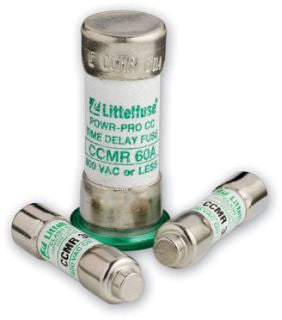

Littelfuse CCMR007.TXP Time Delay Fuse, 7 A, 600 VAC/250 VDC, 20/200 kA Interrupt, Class: CC

Product Description

Littelfuse offers the CCMR007.TXP Time Delay Fuse, which is designed for applications requiring a reliable fuse solution for motors and branch circuits. This fuse is rated at seven amperes and operates at six hundred volts AC and two hundred fifty volts DC. With a twenty to two hundred kA interrupt rating, it provides essential protection in various electrical systems.

• Time-delay feature for better handling of inrush currents
• Non-indicating design
• Compact fuse body measuring 0.41 inches in diameter and 1.5 inches in length

Product Highlights

The Littelfuse CCMR series is highly effective for applications in motor protection and other circuits that require a time delay to prevent nuisance blowing.

Product Information

Standard Information

• Catalog Number: CCMR007.TXP
• Manufacturer: Littelfuse

Technical Specifications

• Amperage Rating: 7 A
• Application: Motors and branch circuit
• Interrupting Rating: 200,000 Amperes
• Type: Class CC
• Voltage Rating: 600 VAC / 250 VDC
• Body Size: 0.41 inches diameter x 1.5 inches length
• Frequency Rating: 50/60 Hz
• Terminal Type: Ferrule
