Littelfuse BLS005 Midget Fuse Fast Acting 5 A 600 VAC

Product Description

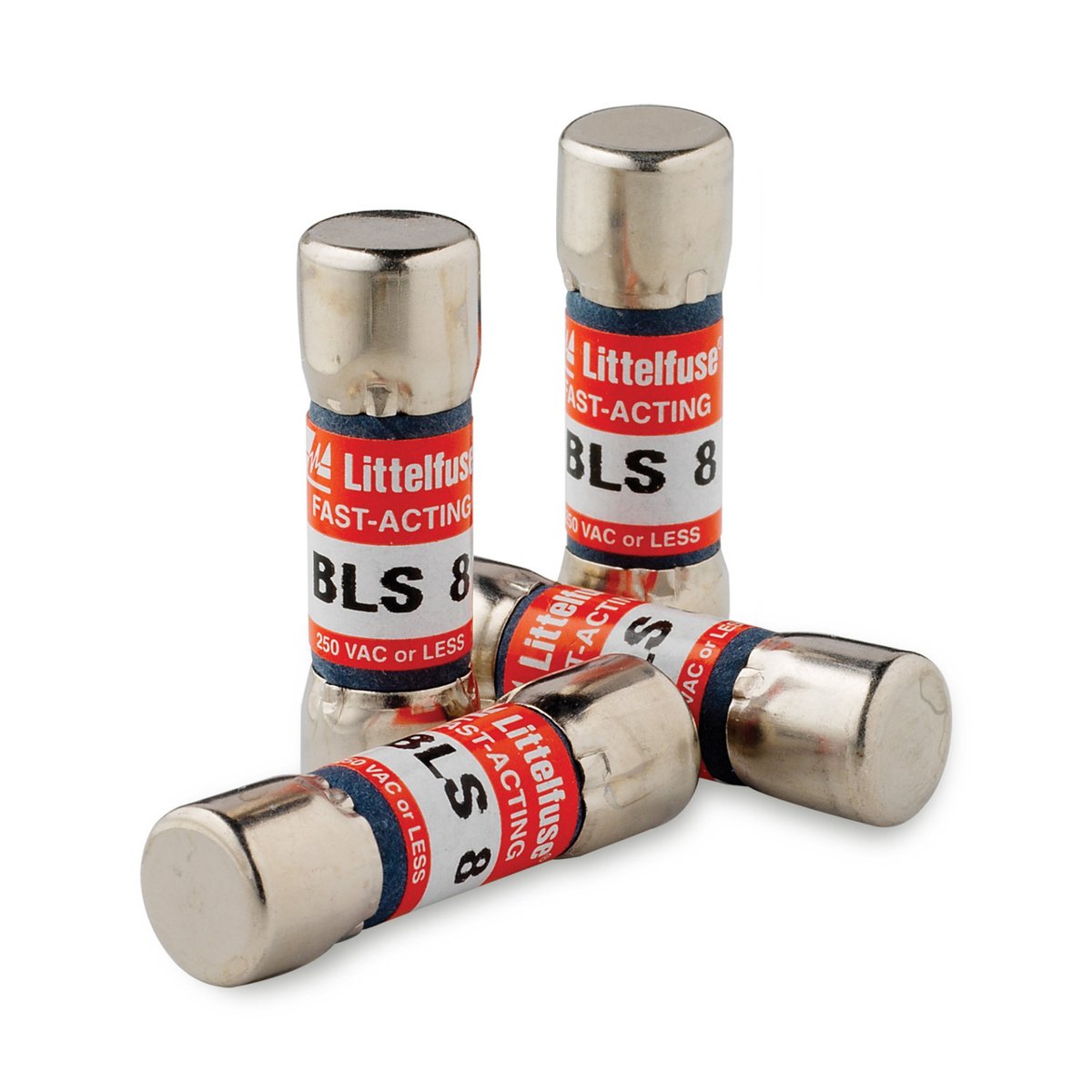

Littelfuse BLS005 is a fast-acting midget fuse designed for applications requiring reliable overcurrent protection. This fuse measures one and three-eighths inches in length and is suitable for various low amp circuits including street lighting and control systems. It features a cylindrical body with ferrule terminal for clip mounting.

• Fast-acting protection for low amperage applications
• Rated at 5 Amps and 600 Volts
• Compact size for space-saving installation

Product Highlights

This fuse protects electrical circuits from overloads while ensuring space efficiency in crowded installations.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: BLS005

Technical Specifications

• Amperage Rating: 5 A
• Voltage Rating: 600 VAC
• Interrupt Rating: 10 kA
• Response Time: 12 seconds
• Body Size: 13/32 inches diameter x 1-3/8 inches long
• Terminal Type: Ferrule
• Application: Supplementary protection for control circuits
• Standards/Approvals: RoHS Compliant, UL E10480, CSA LR29862
