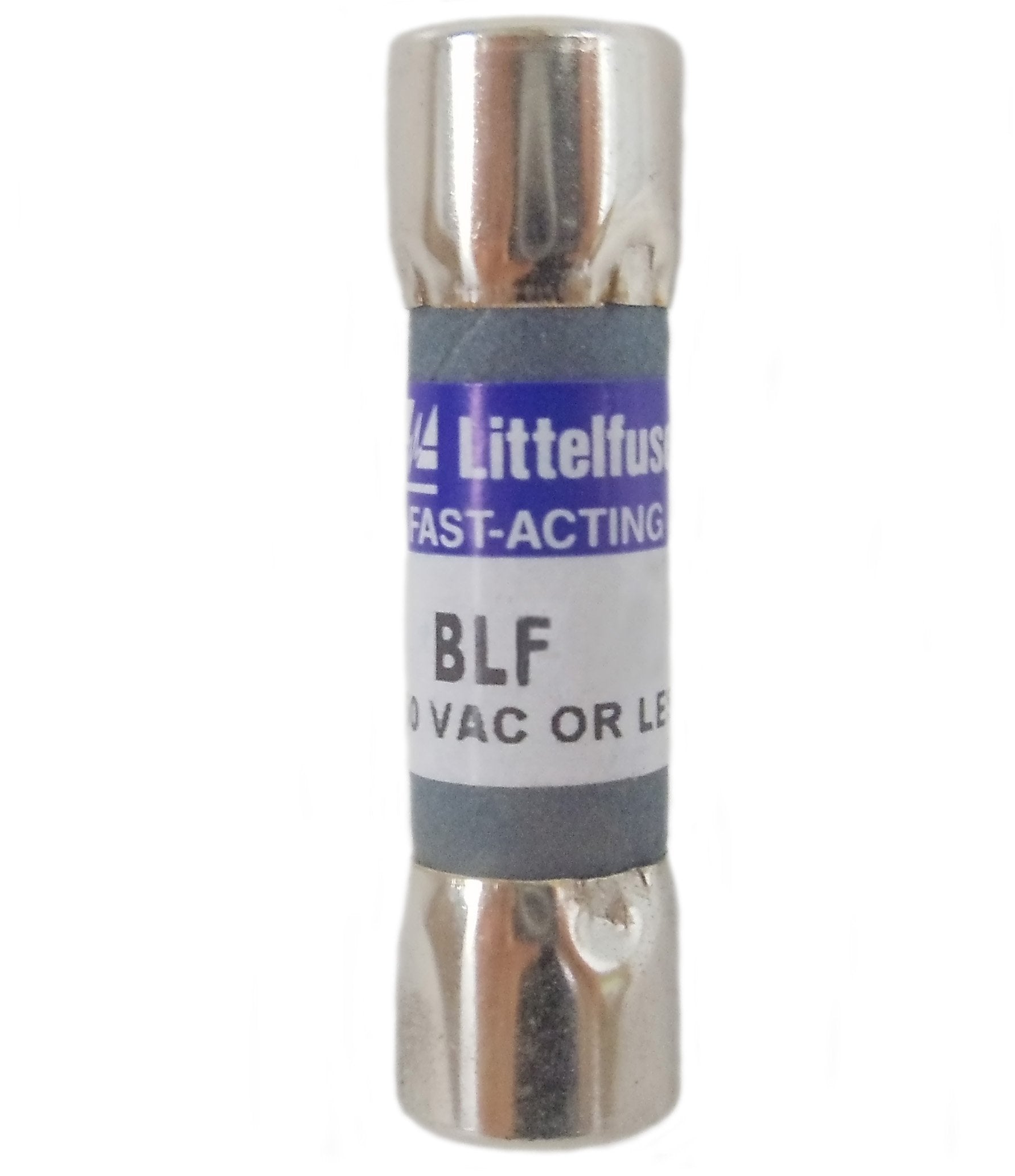

Littelfuse BLF004 Fast-Acting Midget Fuse 4 A (1-1/2 in x 13/32 in) BAF-4

LITTELFUSE
Brand: LITTELFUSE
SKU: BLF004
Availability: In Stock

Ships same day if ordered by 12 pm
$19.01
$19.01
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Littelfuse BLF004 is a 4 A, 250 VAC fast-acting midget (5AG) cartridge fuse designed for supplementary overcurrent protection. The BLF004 features a 10,000 A AC interrupting rating, a cylindrical fiberglass body and a 13/32 in diameter by 1-1/2 in length form factor for clip or cartridge mounting. It is non-indicating and intended for control circuits, street lighting, computers, DC circuits, solenoids, small motors and transformer protection.

  • Fast-acting 4 A rating at 250 VAC with 10,000 A AC interrupting rating
  • Cylindrical fiberglass body, 13/32 in diameter x 1-1/2 in length; midget/5AG size
  • Non-indicating, single-element design with ferrule terminal; clip or fuse block mounting

Product Highlights

Supplementary overcurrent protection for control circuits and small loads; compatible with common midget fuse holders

Product Information

Standard Information

  • Brand: LITTELFUSE
  • Manufacturer Part Number: BLF004
  • Country of Origin: Mexico
Technical Specifications
Manufacturer
Littelfuse
Manufacturer Part Number
BLF004
Brand
Littelfuse
Series
BLF
Type
Fast-Acting (fast-blow) midget fuse
Current Rating
4 A
Voltage Rating
250 VAC
Interrupting Rating (AC)
10,000 A (AC RMS symmetrical)
Body Material
Fiberglass
Body Type
Cylindrical (midget / 5AG)
Diameter
13/32 in (0.406 in / 10.31 mm)
Length
1-1/2 in (1.50 in / 38.1 mm)
Dimensions
0.406 in x 1.50 in (10.31 x 38.1 mm)
Element
Single
Indicating
Non-indicating
Terminal Type
Ferrule
Mounting Type
Cartridge / Clip / Fuse block
Fuse Size / Class
Midget / 5AG
DC Voltage Rating
Not rated
Standards / Approvals
UL (E10480) | CSA (LR29862) | UL Listed; CSA Certified; RoHS compliant
Compatible Fuse Blocks / Holders
Compatible with L600M fuse block series; fits common clip-style holders
Equivalent / Replacement MPNs
Bussmann BAF-4; Mersen OTM (functionally equivalent)
Country of Origin
Mexico
