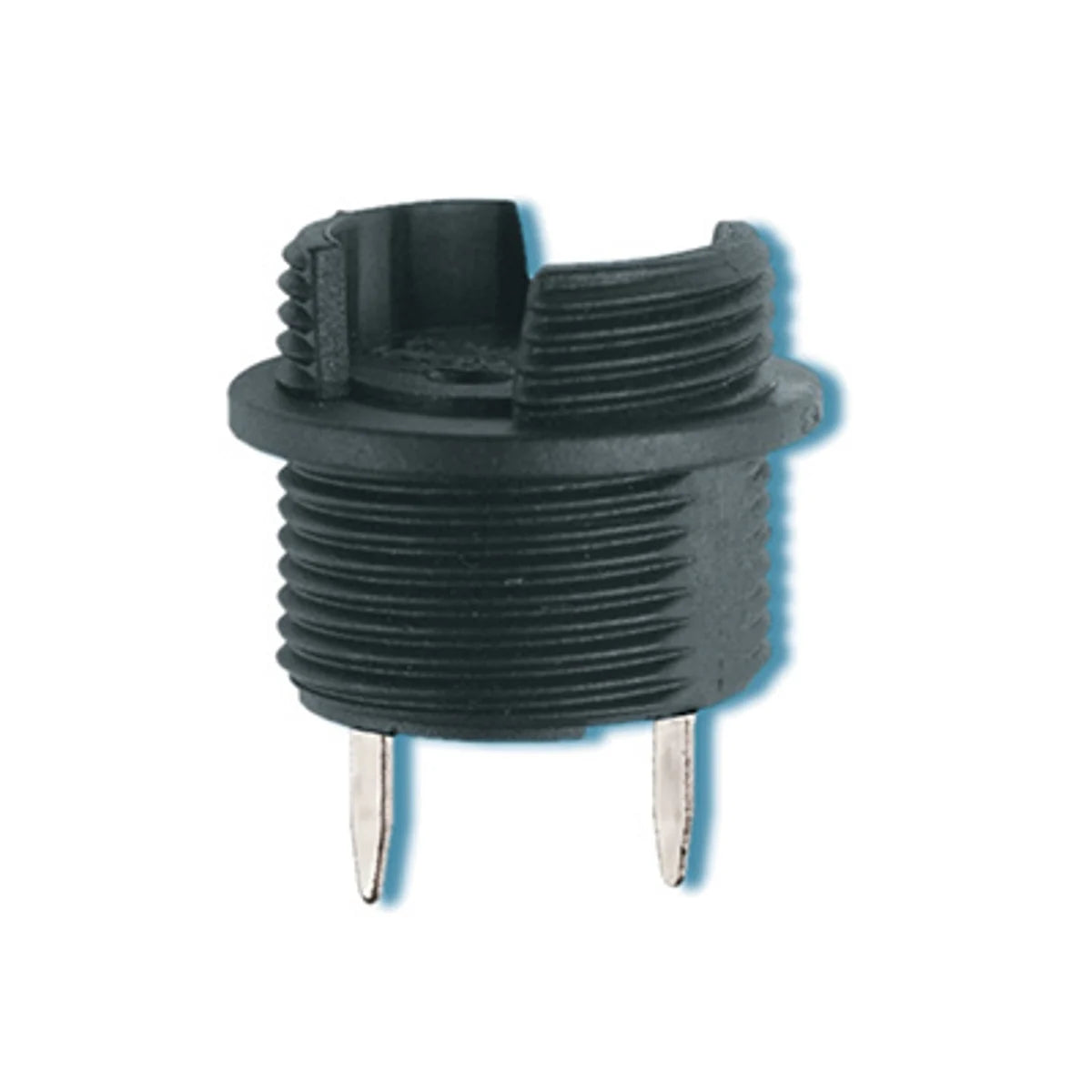

Littelfuse 571007 Panel Mount Fuseholder Midget 1-13/32-1-1/2

Product Description

Littelfuse 571007 is a panel mount fuseholder designed for Class CC and Midget fuses. This fuseholder ensures safe and efficient circuit protection in a variety of applications. It features a rejection mechanism that prevents the use of inappropriate fuses that do not meet voltage or current ratings.

• Designed for supplementary Class CC circuit protection.
• Constructed from durable thermoplastic material.
• Suitable for both solder and quick-connect installations.

Product Highlights

This fuseholder is engineered for durability and performance in demanding electrical environments. It is UL Listed for safety and compliance with product standards.

Product Information

Standard Information

• Catalog Number: 571007
• Brand: Littelfuse

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 VAC/VDC
• Fuse Length: 1-13/32 to 1-1/2 inches
• Fuse Diameter: 13/32 inches
• Type: Standard
• Connection: Combination Solder/Quick-Connect
• Material: Thermoplastic
• Mounting Type: Panel
• Country of Origin: Mexico
