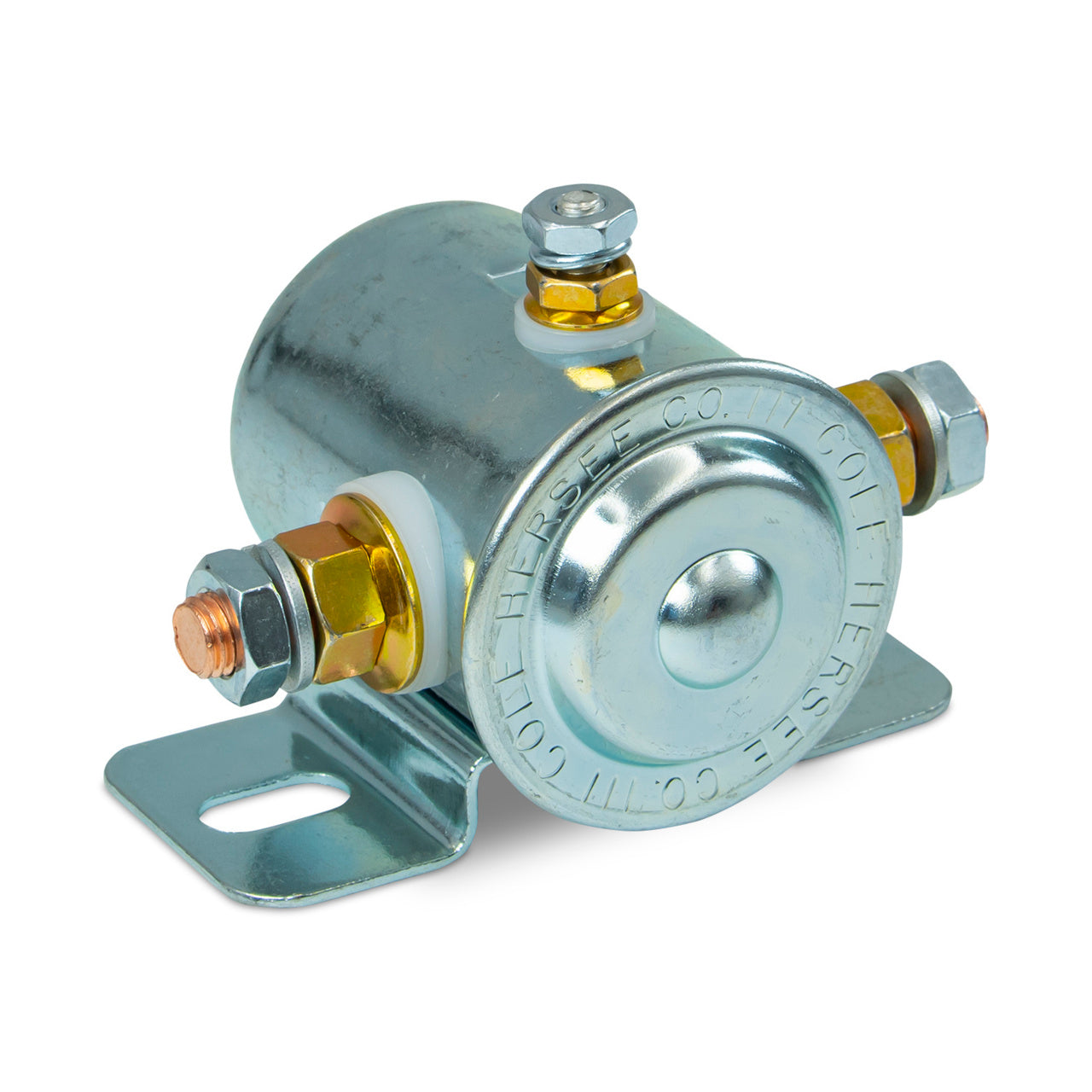

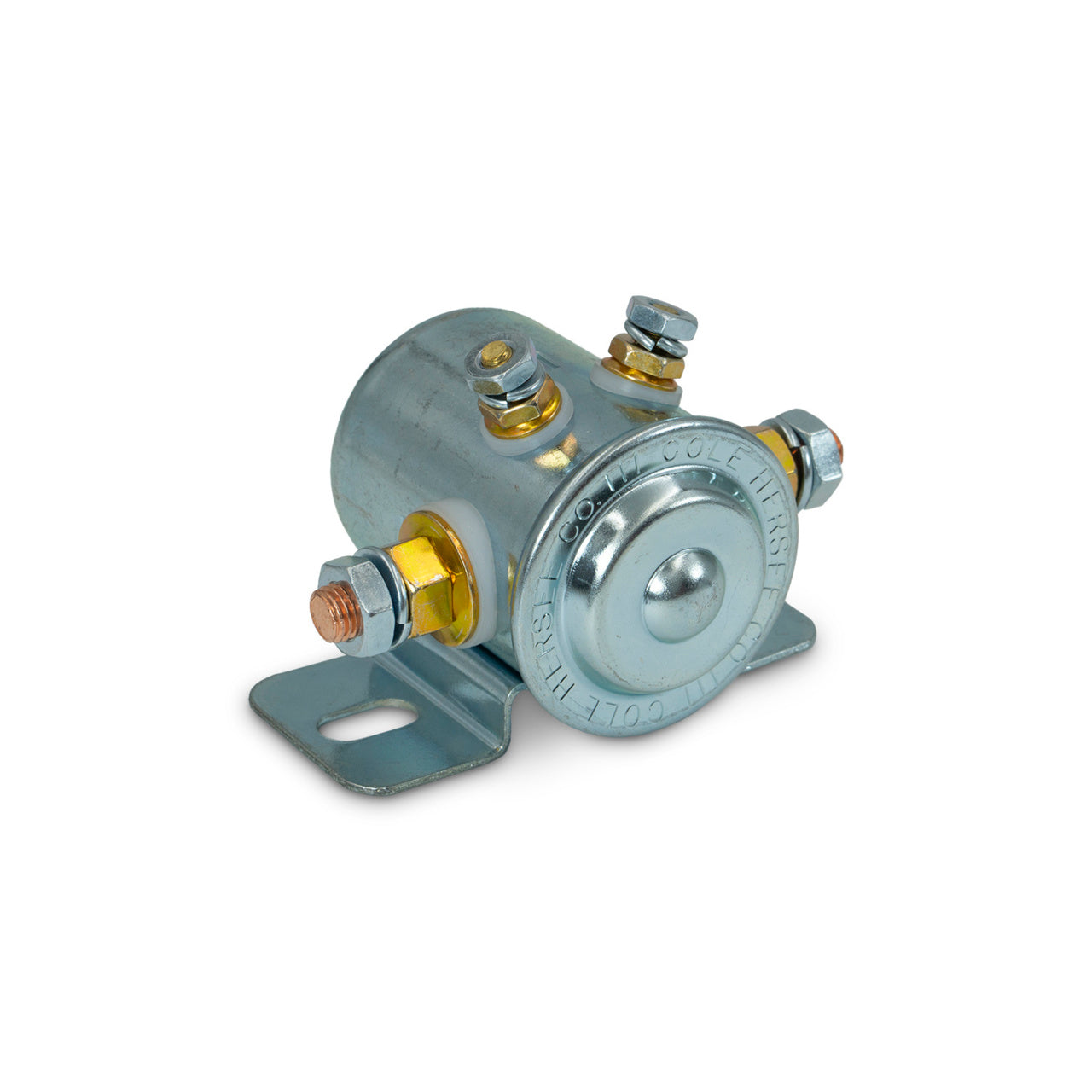

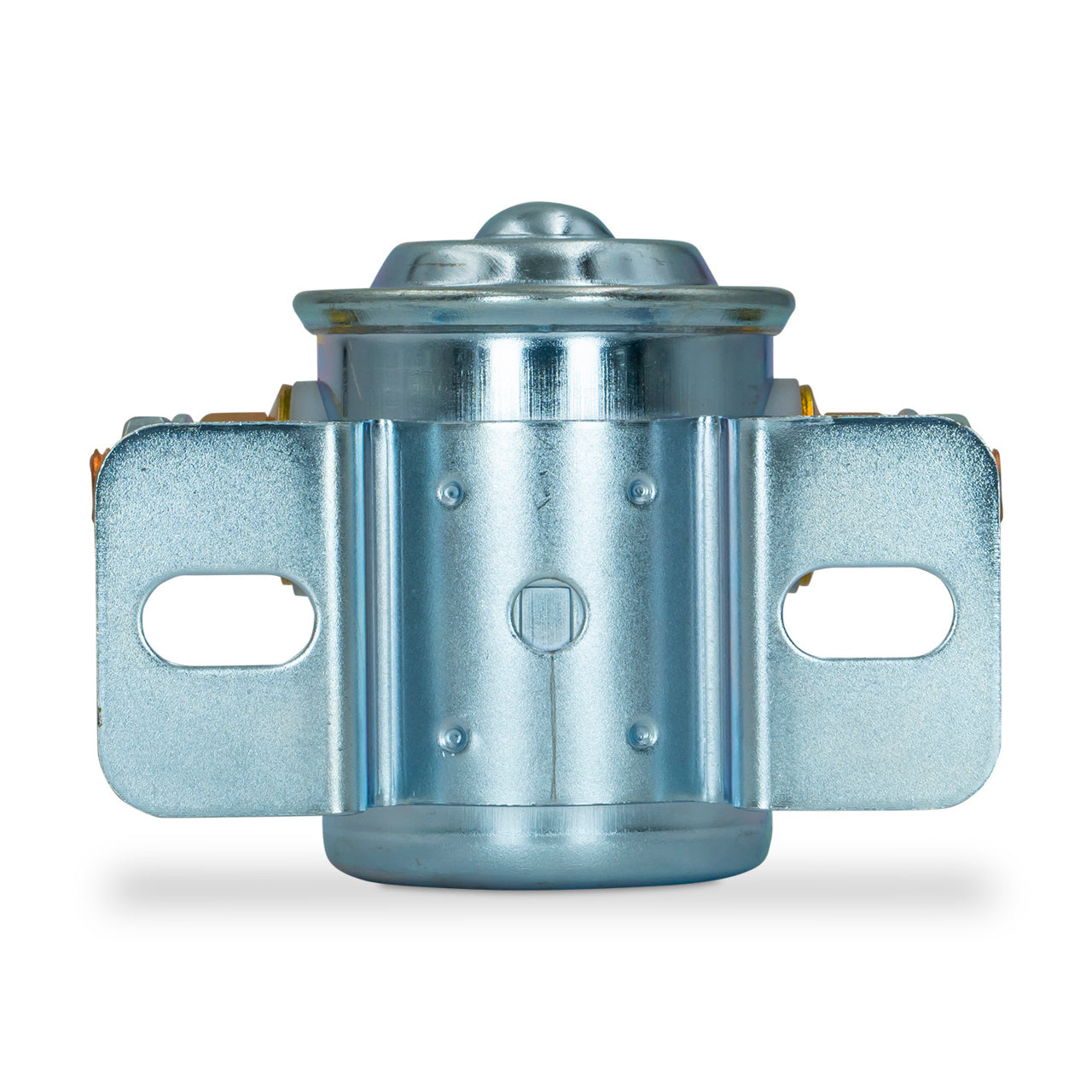

Littelfuse 24021 Solenoid 12V SPST

Product Description

The LITTELFUSE 24021 is an Intermittent-Duty SPST Series Solenoid Relay suitable for remote-switching and starting applications in heavy-duty vehicles. This four-stud, normally open solenoid features a 12 V dc grounded coil with a coil impedance of 3.8 ohms and is rated for 500 A make, 100 A break. It has a natural molded phenolic case and plated steel parts.

• 500 A make, 100 A break rating
• 12 V dc grounded coil with a coil impedance of 3.8 ohms
• Four-stud solenoid with a natural molded phenolic case and plated steel parts

Product Highlights

The LITTELFUSE 24021 solenoid relay is designed for heavy-duty applications, offering reliable remote switching and starting capabilities.

Product Information

Standard Information

• Brand: LITTELFUSE
• Manufacturer Part Number: 24021
• Country of Origin: MX

Technical Specifications

• Circuitry: SPST
• Contacts: Copper
• Housing: Phenolic
• Coil Type: Solenoid
• Intermittent Time: 10 sec On - 20 min Off
• Contact terminal: 5/16" -24 thread
• Bracket mounting holes: 9/32 x 1/2", 2 13/64" on centers (7.2 x 12.7, 56.0mm)
