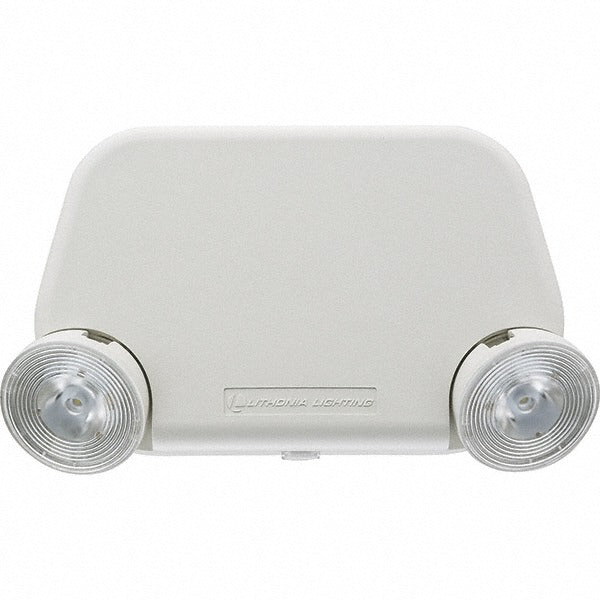

Lithonia Lighting 263X1T 2 Head Led Emergency Lighting Unit

Product Description

The LITHONIA LIGHTING 263X1T is a two-head LED emergency lighting unit designed for life-safety applications in commercial and institutional buildings. It operates on 120 or 277 VAC and draws only 0.33 watts during normal standby operation. The unit uses a sealed nickel cadmium (NiCd) battery to maintain illumination during a power outage. The thermoplastic housing is finished in white, making it suitable for surface mounting in corridors, stairwells, and exit pathways. Licensed electricians typically install this unit as part of a compliant emergency egress lighting system in accordance with NFPA 101 and NEC requirements.

The 263X1T is intended for use in commercial, institutional, and light industrial settings where code-compliant emergency lighting is required. Typical installations include office corridors, retail spaces, educational facilities, healthcare facilities, and other occupancies governed by NFPA 101 life-safety codes. The dual-head design allows the installer to aim each lamp head independently to maximize coverage of an egress path from a single mounting point. The white thermoplastic housing blends with standard interior finishes.

Key Features

• Dual adjustable LED lamp heads for flexible egress coverage from a single unit
• Operates on 120 or 277 VAC for compatibility with common commercial branch circuits
• Sealed nickel cadmium battery provides reliable backup power during outages
• Low 0.33-watt standby draw reduces operating costs over the life of the unit
• White thermoplastic housing is lightweight, durable, and suitable for interior environments
• Meets NFPA 101, NFPA 70 (NEC), OSHA, and UL 924 requirements for emergency lighting

Compatibility

Designed as an OEM-style replacement or new-installation emergency lighting unit for commercial and institutional egress lighting systems requiring a dual-head LED fixture rated for 120 or 277 VAC operation.

Installation Notes

Installation must be performed by a licensed electrician in accordance with NFPA 70 (NEC) Article 700 and the authority having jurisdiction. Disconnect and lock out all power to the circuit before wiring the unit. After installation, verify battery charging function and perform the required 30-second and 90-minute functional tests per NFPA 101 to confirm proper emergency operation. Do not install in wet or outdoor locations unless the unit is rated for that environment.
