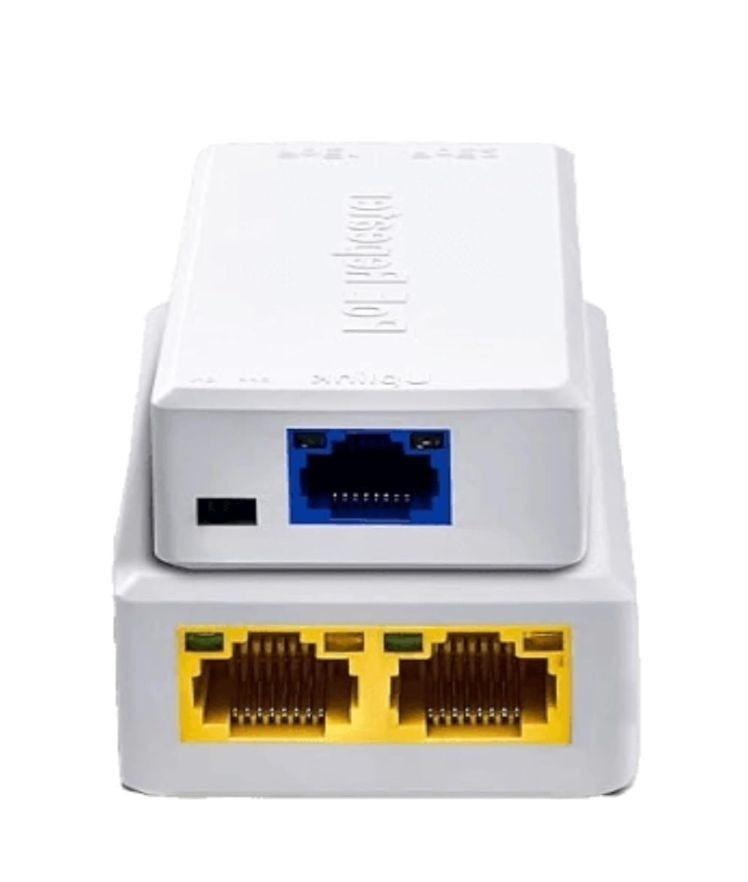

Lionbeam poe-1-2 Passive Poe Extender 2 Channel

Product Description

The LIONBEAM poe-1-2 is a two-channel passive Power-over-Ethernet extender designed to push both data and power beyond the standard 100-meter Ethernet cable limit. It accepts a single PoE input and distributes the signal across two output channels at 10/100M speeds, maintaining stable connectivity and sufficient power delivery to connected devices. Network technicians and low-voltage installers deploy this unit in commercial security, surveillance, and access control systems where field devices sit far from the nearest switch or injector. The passive design requires no external power supply at the extender itself, keeping the install footprint small.

This extender is suited for commercial and light-industrial network runs where IP cameras, access control readers, or similar 10/100M PoE-powered devices are located beyond standard Ethernet reach. It is particularly useful in retrofit scenarios where pulling additional power circuits or installing intermediate switches is not practical. The two-channel output allows a single extended run to serve two endpoints simultaneously, reducing overall cabling complexity in surveillance and security deployments.

Key Features

• Two-channel passive PoE extension for simultaneous connection of two network devices
• Supports 10/100M data transmission for IP cameras, access control readers, and similar devices
• Passive operation requires no dedicated power source at the extender unit
• Extends both power and data beyond standard 100-meter Ethernet cable limits
• Compact form factor reduces cabling requirements and eliminates the need for additional power outlets

Compatibility

Designed as a passive PoE extender compatible with standard 802.3af/at PoE-enabled switches and injectors supplying 10/100M network devices over extended cable runs.

Installation Notes

Installation is typically performed by low-voltage or network technicians following applicable TIA-568 structured cabling standards. Verify that the upstream PoE source provides adequate wattage to power all connected downstream devices plus any losses incurred over the extended cable run before commissioning. Use quality Cat5e or Cat6 cabling throughout the run to maintain signal integrity. Power down the PoE source before connecting or disconnecting the extender to avoid potential damage to connected equipment.

Technical Specifications

• Channels: 2
• Network Speed: 10/100M
• PoE Type: Passive

Standard Information

• Brand: LIONBEAM
• Manufacturer Part Number: poe-1-2
