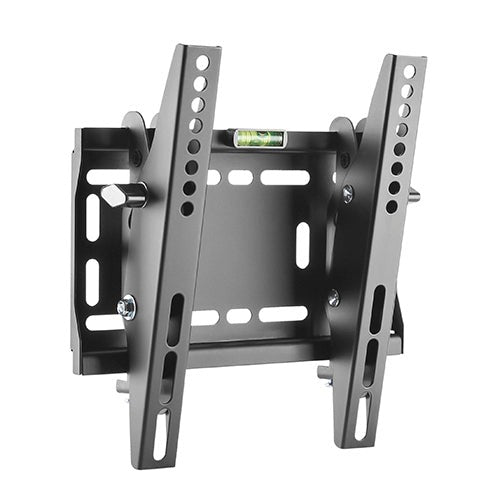

Lionbeam lbp42-44dt Tilt Tv Wall Mount 32-55 Inch 110 Lb

Product Description

The LIONBEAM lbp42-44dt is a tilt TV wall mount built for flat and curved screen televisions sized 32 to 55 inches. Constructed from cold-rolled steel with a matte black powder coat finish, it holds up to 110 pounds and keeps the TV profile within 2.2 inches of the wall. A fixed wall plate anchors to solid wall or double-stud framing on 16-inch spacing, while the detachable panel simplifies TV attachment and positioning. The mount ships with a hook-on bubble level to aid alignment during installation. GS certification confirms third-party strength testing to three times the rated load.

This mount suits residential and light commercial installs where a low-profile, secure TV bracket is needed without articulating arm complexity. Typical applications include bedroom, living room, waiting room, and conference room walls where a fixed-position display with tilt adjustment is preferred. The tilt range of plus 5 degrees to minus 10 degrees lets the installer angle the screen to reduce glare or correct sightlines for elevated wall placements. Flat and curved panel types are both supported.

Key Features

• Tilt adjustment range of plus 5 degrees to minus 10 degrees for glare control and sightline correction
• Rated to 110 pounds with GS-certified strength testing at three times the rated capacity
• Compatible with flat and curved TV panels from 32 to 55 inches
• VESA compatible patterns: 200x200, 400x200, 300x300, and 400x400 millimeters
• Detachable panel design simplifies TV attachment and wire routing during install
• Hook-on bubble level included for accurate wall alignment
• Matte black powder coat finish on 1.5mm cold-rolled steel construction

Compatibility

Designed to fit flat and curved televisions from 32 to 55 inches with VESA hole patterns up to 400x400 millimeters, mounted to solid wall or double-stud framing at 406mm stud spacing.

Installation Notes

Installation is performed by a qualified installer using standard hand tools. Before mounting, verify wall structure can support the rated load and locate studs or use appropriate anchors rated for the combined weight of the mount and TV. Power down and unplug the television before attaching it to the bracket. Follow local building codes for wall fastener requirements when mounting in commercial or multi-unit residential settings.

Technical Specifications

• Weight Capacity: 110 pounds
• Fit Screen Size: 32 to 55 inches
• Tilt Range: plus 5 degrees to minus 10 degrees
• VESA Compatible Patterns: 200x200, 400x200, 300x300, 400x400 (millimeters)
• Max Mounting Hole Spacing: 400x400 millimeters
• Overall Dimensions: 17.6 x 16.7 x 2.2 inches
• Wall Profile: 2.2 inches
• Material: Cold-rolled steel, plastic
• Metal Sheet Thickness: 1.5mm (0.059 inches) bracket arm and wall plate
• Surface Finish: Matte black powder coat
• Installation Type: Solid wall or double stud at 406mm spacing
• Curved TV Compatible: Yes
• Certification: GS

Standard Information

• Brand: LIONBEAM
• Manufacturer Part Number: lbp42-44dt
