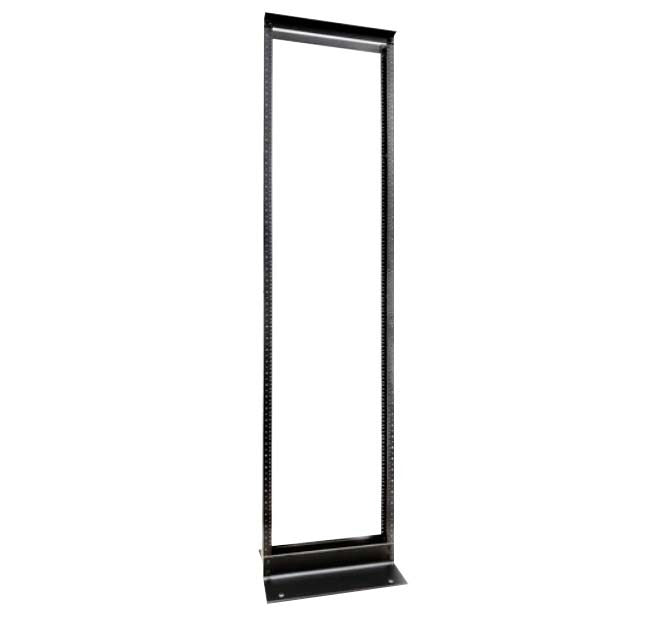

Lionbeam lb-rk2p-45-st 2 Post Steel Rack 45U

Product Description

The LIONBEAM lb-rk2p-45-st is a 2-post open-frame steel rack designed to mount and organize network, telecommunications, and data center equipment. Standing 7 feet tall with 45U of usable rack space, it provides a high-density mounting solution for patch panels, switches, servers, and cable management hardware. The rack uses 12-24 threaded screw holes, the standard fastener pattern for rackmount equipment. It is typically installed by network technicians, IT infrastructure specialists, and low-voltage contractors in server rooms, telecom closets, and equipment staging areas.

This 2-post rack is suited for lighter-duty open-frame applications where front-and-rear access is a priority. The 2-post configuration works well for patch panels, cable managers, 1U and 2U switches, and similar shallow equipment. The 45U capacity allows consolidation of a large number of devices within a single vertical footprint, making it a practical choice for medium to large telecom and network installations.

Key Features

• 45U of rack space provides high-density equipment mounting in a single vertical unit
• 2-post open-frame design allows unrestricted front and rear access to cabling and equipment
• 12-24 threaded screw hole pattern is compatible with standard rackmount hardware
• Steel construction offers structural rigidity for sustained equipment loads
• 7-foot height fits standard ceiling clearance in equipment rooms and telecom closets

Compatibility

Designed as an OEM-style open-frame mounting solution for standard 19-inch rackmount equipment using 12-24 fastener hardware.

Installation Notes

Installation is typically performed by low-voltage technicians or IT infrastructure contractors. Secure the rack base to the floor where required by local building or seismic codes before loading equipment. Use a level during installation to ensure vertical alignment before mounting devices. Always load heavier equipment at the bottom of the rack to maintain a low center of gravity and reduce tip risk.

Technical Specifications

• Rack Type: 2 Post Open Frame
• Rack Units: 45U
• Height: 7 feet
• Screw Hole Type: 12-24 Threaded
• Material: Steel

Standard Information

• Brand: LIONBEAM
• Manufacturer Part Number: lb-rk2p-45-st
