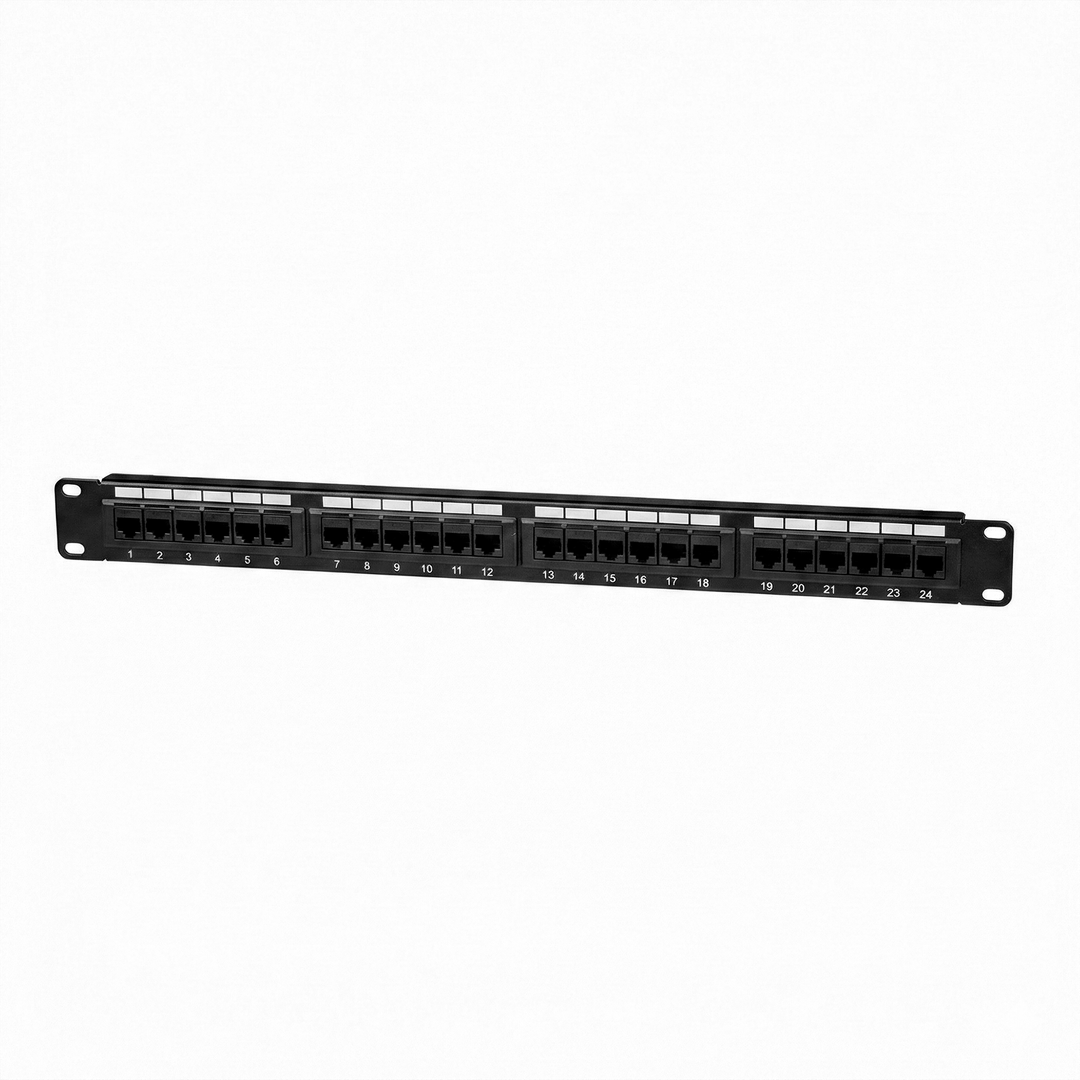

Lionbeam lb-pp5e24 Cat 5e 24 Port 1U Patch Panel

Product Description

The LIONBEAM lb-pp5e24 is a 24-port Cat 5e patch panel in a 1U rack-mount form factor, designed for structured cabling installations in 19-inch equipment racks. The panel provides 24 RJ45 ports across a single rack unit, allowing technicians to terminate and manage horizontal cabling runs at a central distribution point. Built on a steel frame with a black powder-coat finish, it is suited for the physical demands of both commercial and residential IT environments. Rear-facing IDC insulation displacement connectors support fast, tool-assisted terminations, and each port is labeled and color-coded to simplify identification and reduce wiring errors.

The lb-pp5e24 is intended for data closets, server rooms, and structured wiring enclosures where Cat 5e horizontal runs terminate before patching to switches or other active equipment. It supports Category 5e performance up to 100 MHz, making it compatible with gigabit Ethernet and Power over Ethernet (PoE) applications. Typical installations include commercial office networks, small to mid-size data centers, and residential structured cabling systems built around 19-inch rack infrastructure.

Key Features

• 24 RJ45 ports in a single 1U rack unit profile
• Supports Cat 5e cabling up to 100 MHz bandwidth
• Compatible with gigabit Ethernet and PoE applications
• Rear IDC termination connectors for efficient, reliable wiring
• Steel frame with black powder-coat finish for long-term durability
• Numbered and color-coded ports for straightforward identification

Compatibility

Designed as a standard 1U patch panel for 19-inch equipment racks using Category 5e cabling infrastructure.

Installation Notes

Installation is typically performed by a low-voltage cabling technician or network infrastructure installer. De-energize all active equipment in the rack before mounting and terminating the panel. IDC termination requires a 110-style punch-down tool; follow the wiring standard printed on the panel for either T568A or T568B termination. Installations in commercial environments should conform to applicable structured cabling standards such as ANSI/TIA-568.

Technical Specifications

• Port Count: 24
• Port Type: RJ45
• Cabling Category: Cat 5e
• Maximum Bandwidth: 100 MHz
• Form Factor: 1U
• Rack Compatibility: 19 inches
• Termination Type: IDC insulation displacement connector
• Frame Material: Steel
• Finish: Black powder coat

Standard Information

• Brand: LIONBEAM
• Manufacturer Part Number: lb-pp5e24
