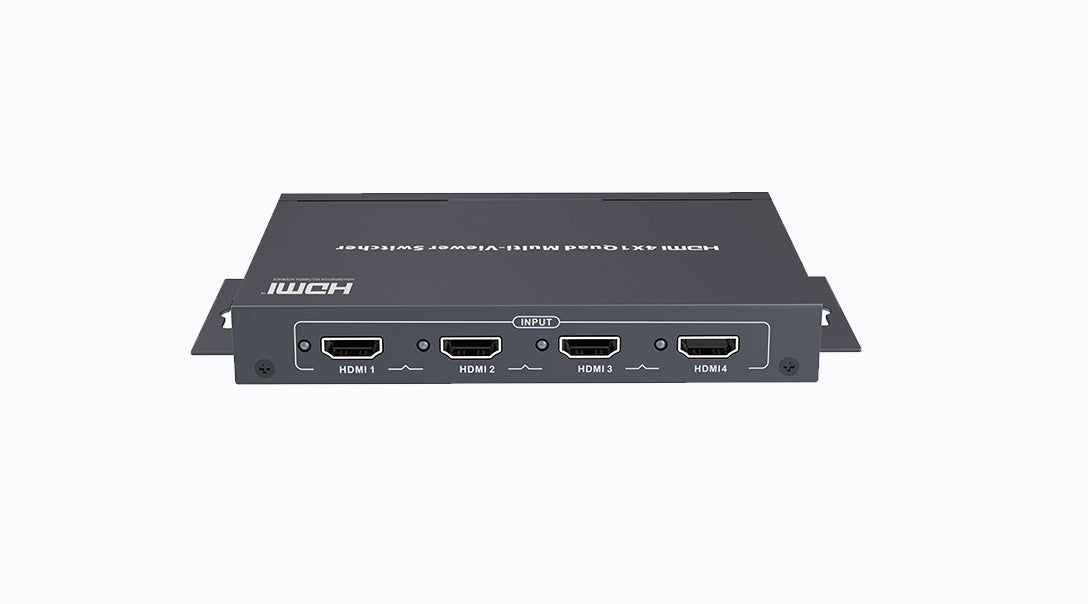

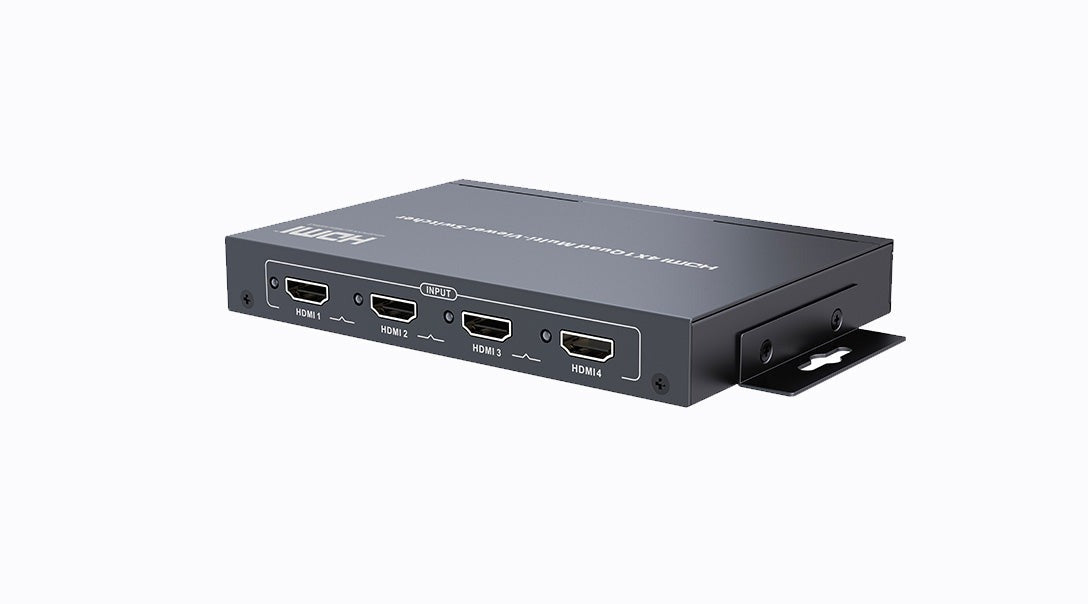

Lionbeam lb-hdmi-q4 Hdmi Multiviewer Switch 4x1

Product Description

The LIONBEAM lb-hdmi-q4 is a 4-input, 1-output HDMI multiviewer switch designed for AV installations where multiple HDMI sources must be monitored or displayed through a single output. The unit supports signal resolutions up to 1080p at 60Hz and offers three display modes: quad mode, full screen mode, and dual mode. Switching between modes is handled via the front-panel button or the included remote control. The metal casing provides durability in rack or wall-mount environments. Installation professionals and AV integrators deploy this switch in control rooms, security monitoring stations, and multi-source display setups.

The lb-hdmi-q4 suits residential and light commercial AV applications where a technician needs to consolidate four HDMI video sources onto one display without dedicated processing hardware. Typical use cases include surveillance monitor walls, broadcast preview stations, and multi-source conference room displays. The plug-and-play design reduces commissioning time. The wall-mountable enclosure allows flexible placement in equipment closets or on open wall surfaces near the display.

Key Features

• Supports 4 HDMI inputs and 1 HDMI output in a single unit
• Three display modes: quad, full screen, and dual
• HDMI signal resolution up to 1080p at 60Hz
• Seamless mode switching via front-panel button or remote control
• Metal casing for stable, durable performance in installed environments
• Wall-mountable design for flexible installation options
• Plug-and-play operation with no driver installation required

Compatibility

Designed as an OEM-style replacement or upgrade solution for standard HDMI multiviewer applications supporting sources and displays with HDMI connectivity at resolutions up to 1080p at 60Hz.

Installation Notes

Installation is typically performed by a licensed AV integrator or low-voltage technician. Power down all connected source devices and the display before making HDMI connections. Secure the unit to the wall mount or rack surface before connecting cables to avoid stress on the HDMI ports. Verify that all connected sources output a resolution at or below 1080p at 60Hz to ensure proper signal compatibility.

Technical Specifications

• Number of Inputs: 4 HDMI
• Number of Outputs: 1 HDMI
• Maximum Resolution: 1080p at 60Hz
• Display Modes: Quad, Full Screen, Dual
• Switching Method: Front-panel button, remote control
• Casing Material: Metal
• Mounting: Wall-mountable

Standard Information

• Brand: LIONBEAM
• Manufacturer Part Number: lb-hdmi-q4
