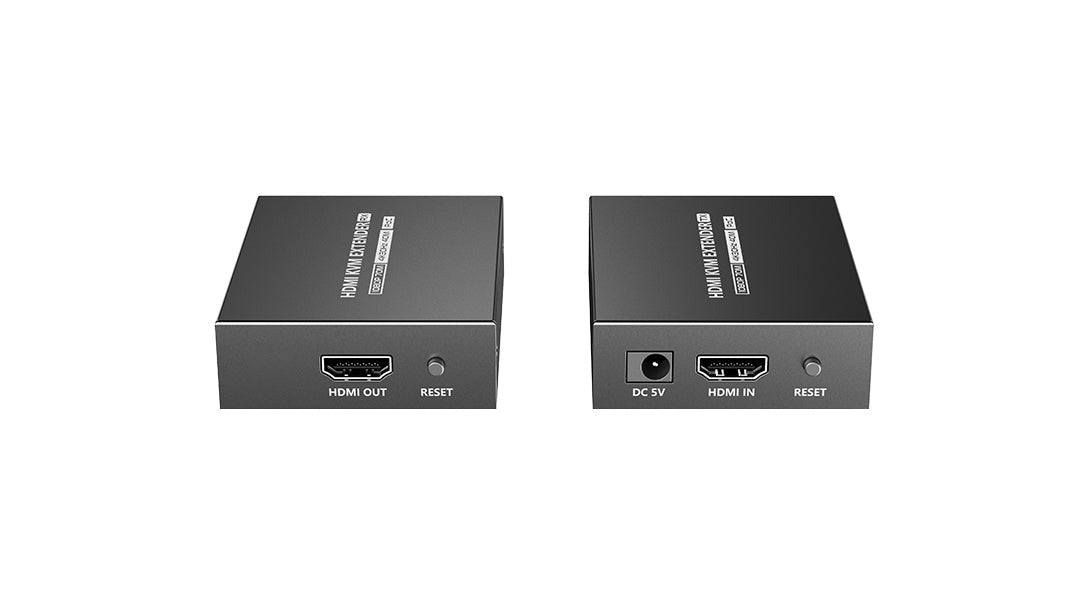

Lionbeam lb-hdmi-ext302 Hdmi Kvm Extender Cat6 1080P

Product Description

The LIONBEAM lb-hdmi-ext302 is an HDMI KVM extender designed to transmit video, audio, and keyboard/mouse control signals over standard Cat6, Cat6A, or Cat7 Ethernet cable. At 1080P resolution and 60Hz refresh rate, the unit reaches distances up to 229 feet (approximately 70 meters). At 4K resolution, the maximum transmission distance is 120 feet. The extender supports HDR and delivers an uncompressed, zero-latency signal path, making it appropriate for AV installations, digital signage, and workstation extension in commercial and light-industrial environments. Power over Cable (PoC) technology eliminates the need for a separate power supply at the receiver end — only the transmitter side requires power.

The lb-hdmi-ext302 is suited for commercial AV, broadcast, security monitoring, and IT infrastructure applications where a display or workstation must be located far from the source device. Installers deploy this unit in conference rooms, control rooms, retail displays, and server rack environments where running a dedicated HDMI cable is impractical. The KVM function allows keyboard and mouse signals to pass through the same Cat cable alongside the video feed, reducing cable runs and simplifying the installation.

Key Features

• 1080P at 60Hz transmission up to 229 feet over Cat6, Cat6A, or Cat7 cable
• 4K resolution transmission up to 120 feet
• HDR support for compatible source and display equipment
• Uncompressed, zero-latency signal path
• Power over Cable (PoC) — power required only at the TX (transmitter) side
• KVM support allows keyboard and mouse extension over the same cable run

Compatibility

Compatible with Cat6, Cat6A, and Cat7 Ethernet cable. Designed as an OEM-style extender for HDMI source devices and displays in residential and commercial AV installations.

Installation Notes

Installation is typically performed by a licensed AV technician or low-voltage electrician. Power down all source and display equipment before connecting or disconnecting the transmitter and receiver units. Use a continuous, solid-core or stranded Cat6, Cat6A, or Cat7 cable run without inline patch panels or couplers where possible, as connections can introduce signal degradation over longer distances. Local electrical codes, including applicable NEC low-voltage wiring requirements, should be observed for in-wall or plenum cable routing.

Technical Specifications

• Maximum Distance at 1080P: 229 feet (70 meters)
• Maximum Distance at 4K: 120 feet
• Supported Resolution: 1080P at 60Hz, 4K
• HDR Support: Yes
• Signal Compression: Uncompressed
• Latency: Zero latency
• Cable Type: Cat6, Cat6A, Cat7
• Power Requirement: TX side only (PoC)

Standard Information

• Brand: LIONBEAM
• Manufacturer Part Number: lb-hdmi-ext302
