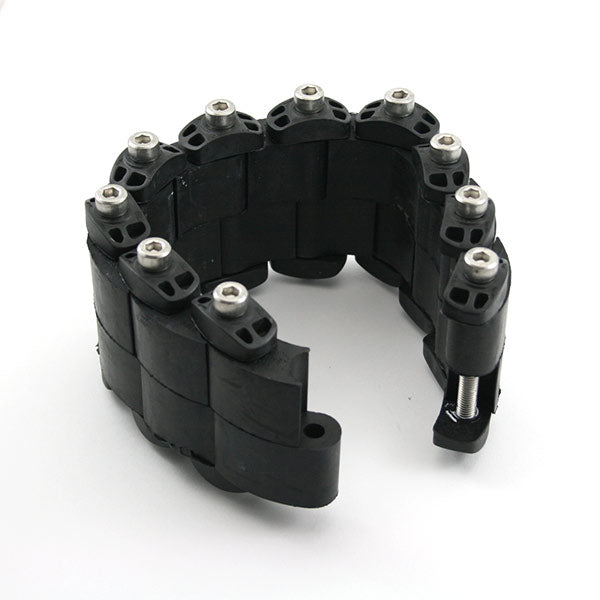

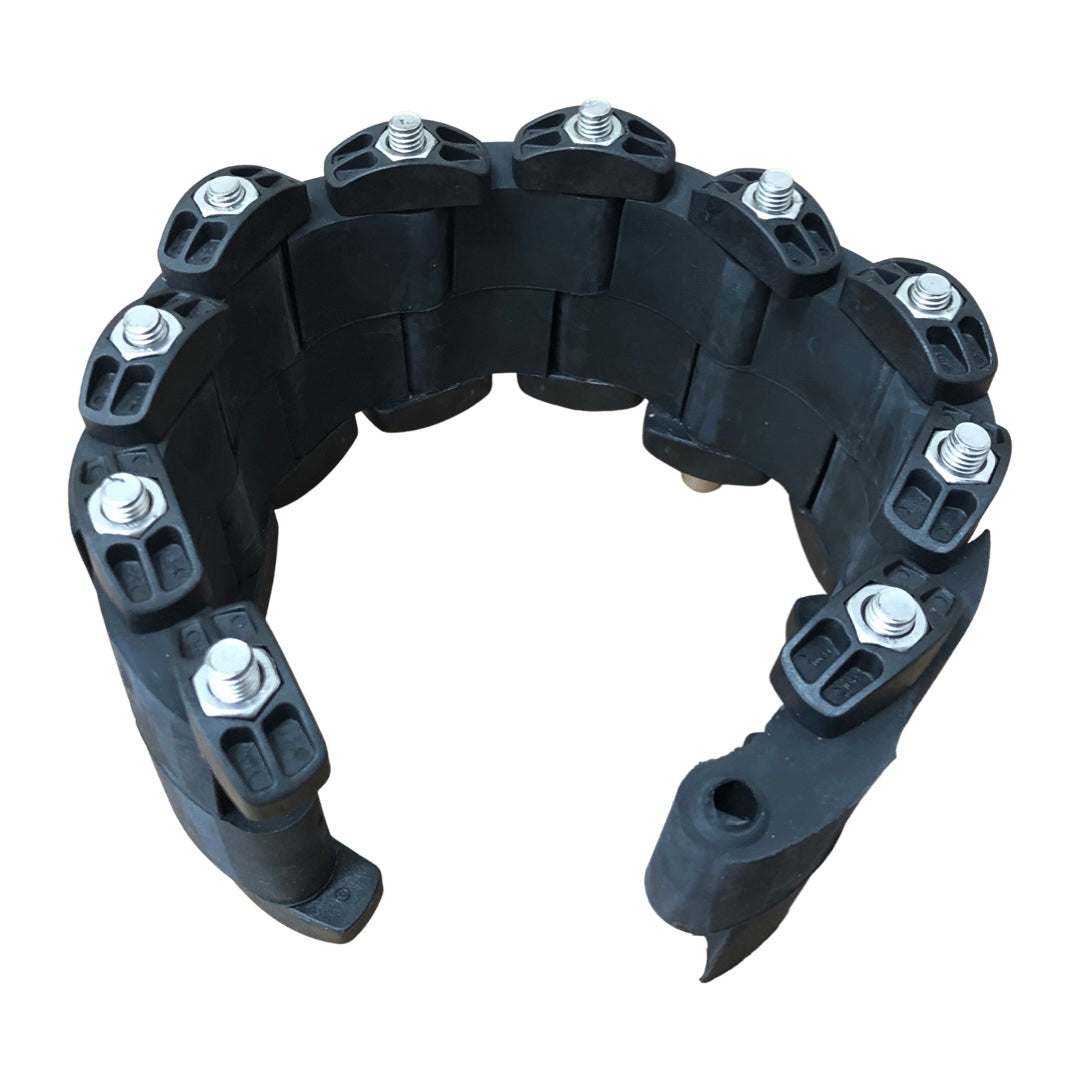

Link-Seal LS-315-S Link Seal, Stainless Steel

Product Description

LINK-SEAL LS-315-S Link Seals provide a fast and affordable method for sealing pipes of any size that pass through walls, floors, and ceilings. The S series includes stainless steel nuts and bolts. These seals are made with durable EPDM black rubber and withstand temperatures up to 175 degrees F. They provide a hydrostatic seal, extend seal life, and protect against corrosion.

• Install in up to 75% less time compared to lead-oakum joints, hand-fitted flashings, mastics, or casing boots.
• Rated at 20 psig (40ft of head), which exceeds the performance requirements of most applications.
• Designed for use as a permanent seal. Seal elements are specially compounded to resist aging and attack from ozone, sunlight, water, and a wide range of chemicals.

Product Highlights

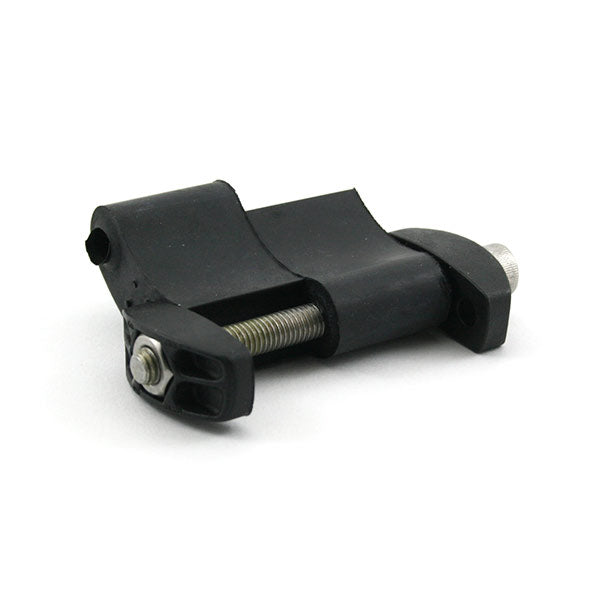

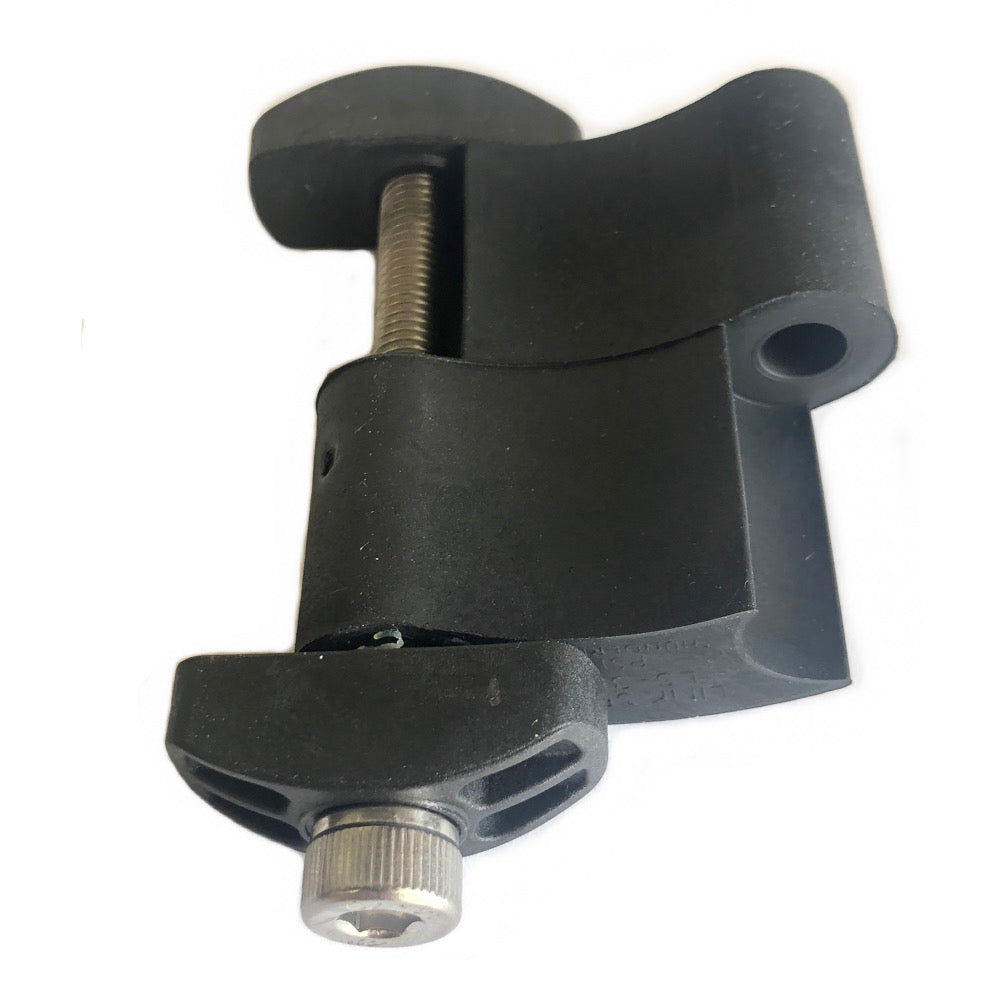

The LS-315-S is a modular seal with stainless steel hardware for sealing cylindrical objects through concrete walls. These seals are ISO approved.

Product Information

Standard Information

• Brand: LINK-SEAL
• Manufacturer Part Number: LS-315-S

Technical Specifications

• MPN: LS-315-S
• Manufacturer: Link Seal
• Material: Stainless Steel
• Seal Material: EPDM
• Hardware Material: S316 Stainless Steel and Zinc Dichromate Coated Steel
• Pressure resistant: 20psig (40 ft of head)
