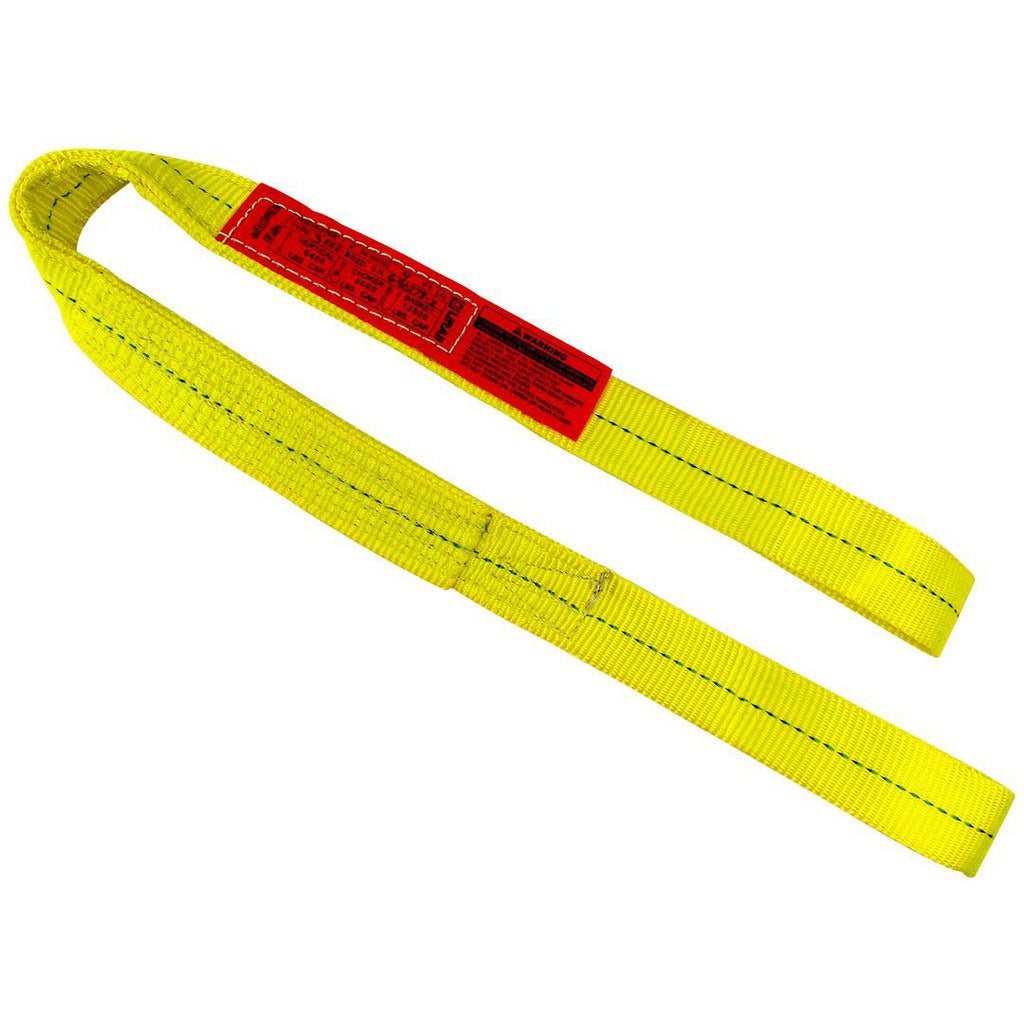

Lift-all EE1801DTX3 Eye Eye Polyester Web Sling 1 in 3 Ft

Product Description

The LIFT-ALL EE1801DTX3 is a single-leg, eye-and-eye polyester web sling designed for overhead lifting and rigging applications. Measuring 1 inch wide and 3 feet long, this Type 4 twisted-eye sling delivers a vertical rated capacity of 1,600 pounds and a choker capacity of 1,280 pounds. Constructed from abrasion-resistant polyester webbing, it handles a maximum working temperature of 200 degrees F. The yellow color coding aids in quick load-rating identification on the job site. Licensed riggers and material handlers in general industrial, construction, and manufacturing environments are the primary installers and users of this sling.

This sling is suited for light-duty vertical and choker hitches in single-leg rigging configurations. Typical applications include hoisting machinery components, pipe, structural steel, and fabricated assemblies in shop or field settings. The twisted-eye design allows the eye loops to seat naturally in hooks and shackles, reducing side-loading risk during the lift. At 0.4 pounds, it is easy to handle and store without adding significant rigging weight to the load.

Key Features

• Twisted eye-and-eye (Type 4) configuration seats cleanly in standard hooks and shackles
• 1,600 lb vertical rated capacity and 1,280 lb choker rated capacity
• Abrasion-resistant polyester webbing extends service life in high-contact lift cycles
• Rated to 200 degrees F maximum working temperature
• Yellow color coding for fast visual load-rating identification per industry standards
• Meets OSHA 1910.184, ASME B30.9, and WSTDA standards

Compatibility

Designed as an OEM-style single-leg polyester web sling for use with standard rigging hooks, shackles, and hoist rings rated at or above the sling working load limit.

Installation Notes

Rigging and overhead lifting operations should be performed by qualified riggers in accordance with OSHA 1910.184 and ASME B30.9 requirements. Inspect the sling for cuts, abrasions, chemical damage, and distorted eyes before each use, and remove from service immediately if any damage is found. Never exceed the rated capacity for the hitch type in use, and ensure the hook or shackle throat fully seats the sling eye to prevent unintended release during the lift. Do not use this sling in contact with sharp edges without appropriate edge protection.
