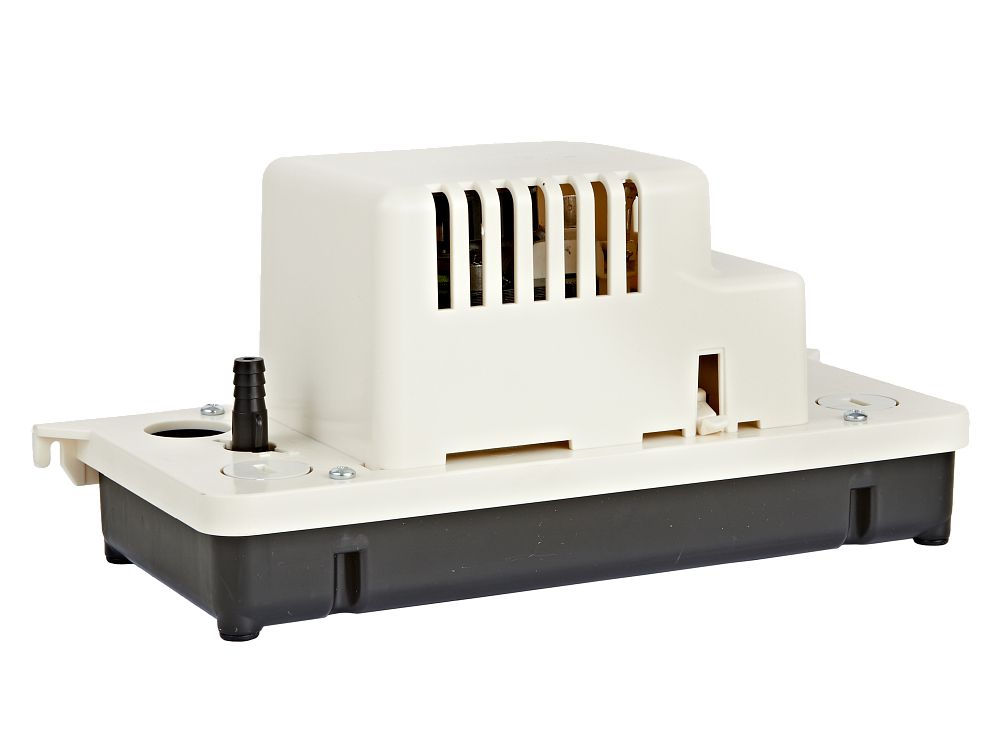

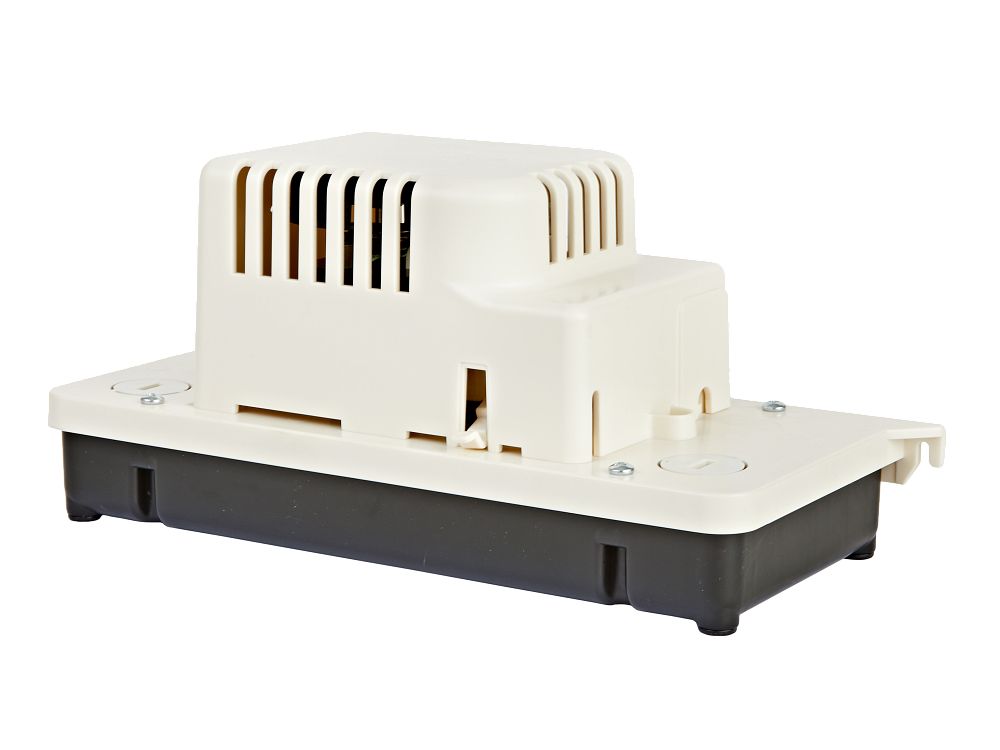

LID CORPORATION VCC20ULS Low-Profile Condensate Pump

Product Description

The LID CORPORATION VCC20ULS is a condensate pump suitable for automatic condensate collection and removal from HVAC systems. This pump works well in tight spaces where gravity drainage is not possible.

• 1/30 hp motor with automatic start and stop using a float switch.
• 1/2-gallon tank capacity for condensate collection.
• Includes thermal overload protection for motor safety.

Product Highlights

This condensate pump operates efficiently and provides safe removal of condensate in various HVAC applications.

Product Information

Standard Information

• Brand: LID CORPORATION
• MPN: VCC20ULS

Technical Specifications

• Capacity: 80 gallons per hour @ 1'
• Shut Off: 20' (6.1 m) at 115 V
• Max. Liquid Temperature: 120 °F (49 °C)
• Discharge Size: 3/8 barbed (9.5 mm)
• Impeller Material: Glass-filled polypropylene
• Electrical Requirements: 115 V, 60 Hz, 1.5 A
• Operation Type: Automatic
