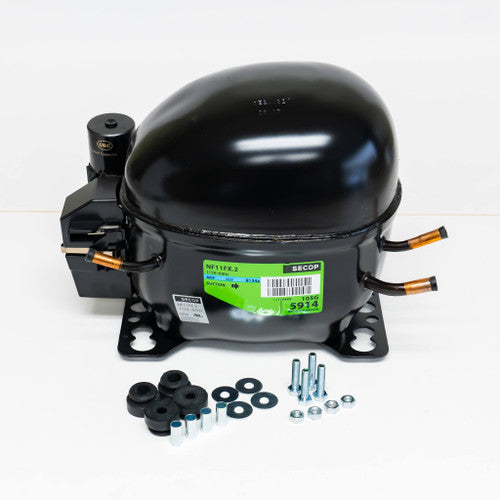

LID CORPORATION NF11FX Hermetic Refrigeration Compressor

Product Description

The LID CORPORATION NF11FX is a hermetic refrigeration compressor ideal for various refrigeration applications. This compressor utilizes R134a refrigerant and is suited for both low back pressure and high back pressure settings. It operates on a voltage range of 115 to 127 volts at 60 Hz, making it versatile for many environments. Included with the compressor are essential electrical components such as a starting relay and start capacitor, plus grommets and cord relief for installation.

• Uses R134a refrigerant
• Operates on 115 to 127 volts at 60 Hz
• Includes electrical components and mounting accessories

Product Highlights

Product Information

Standard Information

• Brand: LID CORPORATION
• MPN: NF11FX

Technical Specifications

• Refrigerant Type: R134a
• Cooling Capacity LBP: 1101 BTU/Hr. at -10 degrees F
• Cooling Capacity HBP: 4164 BTU/Hr. at +45 degrees F
• Horsepower: 1/3 HP
• Height: 8.0 inches
• Base Mount Length: 4 inches
• Base Mount Width: 6.5 inches
• Cooling Capacity: 4726 BTU/Hr
• Frequency: 60 Hz
• Line Connection Discharge I.D.: 1/4 inches
• Line Connection Suction I.D.: 5/16 inches
• Phase: 1
• Start Capacitor: 410/125 MFD/Volts
• Type of Compressor Oil: POE
• Width: 6.5 inches
• Displacement: 11.15 cm³
• Oil Charge: 320 L or Kg
• Oil Quantity: 320 cm³
• Net Weight: 10.00 lbs
