LID CORPORATION IGN6 Six-Tower Coil Pack

Product Description

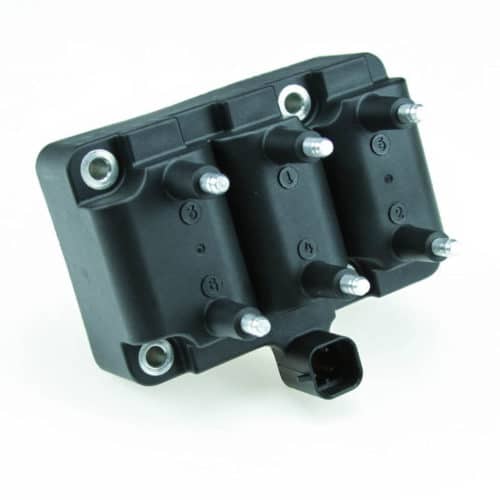

The LID CORPORATION IGN6 Six-Tower Coil Pack is designed for high performance. It is a 'wasted spark' style coil pack that resembles a stock Chrysler ignition coil, similar to those used in Dodge Intrepid models. This coil pack features a more powerful winding that can deliver significant spark energy.

• Can deliver up to fifty-eight milliJoules per spark with a compatible ignition module.
• Designed for use with HEI type plug wire boots.
• Stamped plug wire numbers for easy installation with firing orders 1-2-3-4-5-6 or 1-6-5-4-3-2.

Product Highlights

This coil pack provides fast and reliable ignition under various conditions, making it suitable for high-performance applications.

Product Information

Standard Information

• Brand: LID CORPORATION
• MPN: IGN6

Technical Specifications

• Primary Resistance: 0.66 ohms
• Primary Inductance: 7 mH
• Secondary Resistance: 10.2 k ohms
• Secondary Inductance: 44.5 H
• Output (no load): 40 kV minimum
• Output (50 pF load): 38 kV
• Output Energy: 51 mJ
• Reference Dwell: 3.4 ms
• Peak Secondary Current: 52 mA
• Arc Duration: 2.8 ms
• Turns Ratio: 62:1
• Length: 5.25 inches
• Width: 3.5 inches (excluding connector)
• Height: 3.5 inches
