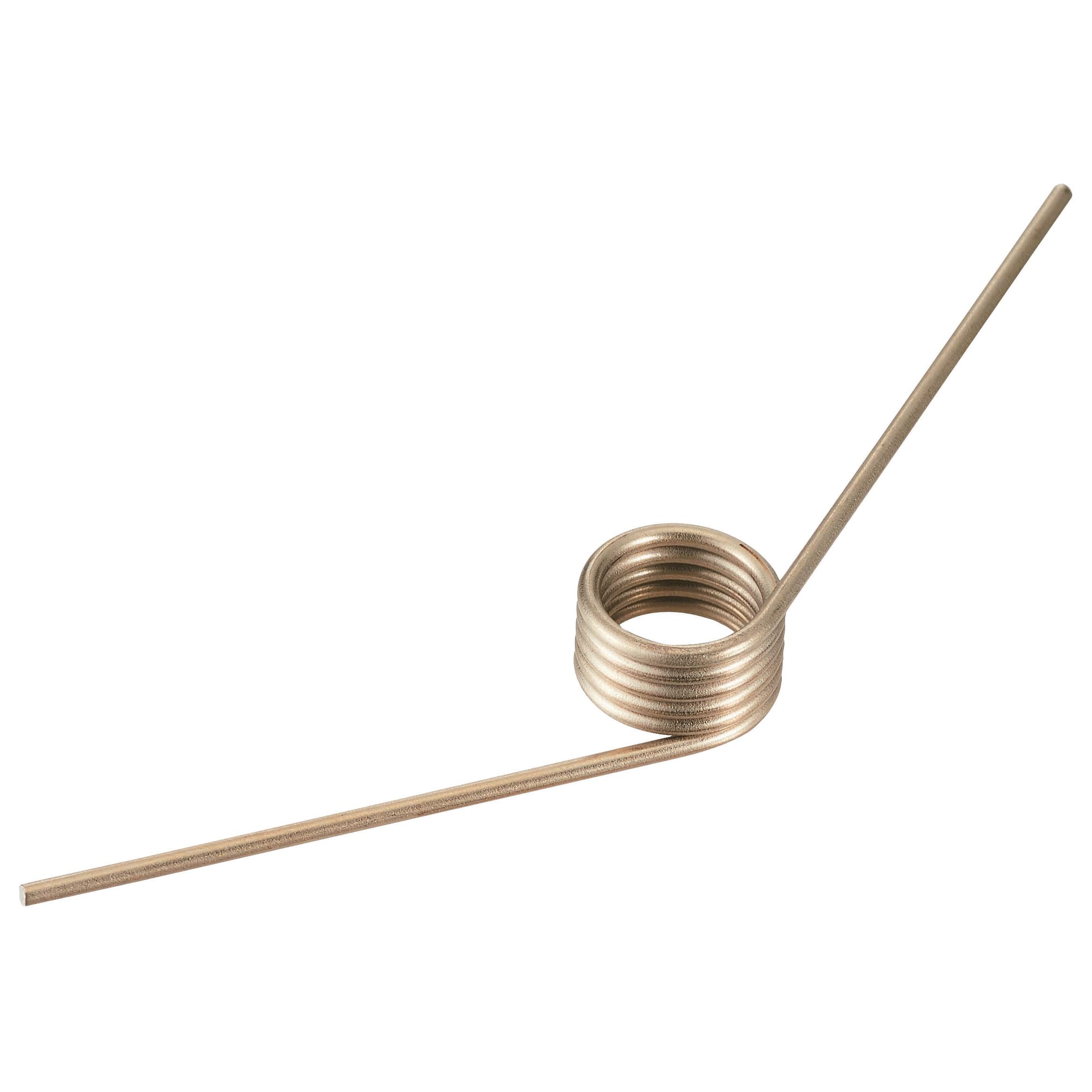

LID CORPORATION F67-0924 Torsion Spring

Product Description

The LID CORPORATION F67-0924 is a torsion spring designed for use in various applications needing torsional moment. This spring features a right-hand winding with a one hundred thirty-five degree angle. It is made from 304 stainless steel, providing durability and resistance to corrosion. With an internal diameter of nine millimeters, this spring is ideal for lids, clips, and similar components.

• Designed for applications requiring torsional moment.
• Features a right-hand winding with 135 degree coils.
• Constructed from 304 stainless steel.

Product Highlights

This torsion spring is suitable for various installations in mechanical systems, helping to maintain structural integrity and functionality.

Product Information

Standard Information

• Material: 304 Stainless Steel
• Country of Origin: Not Specified

Technical Specifications

• Internal Diameter: 9 mm
• Wire Diameter: 0.9 mm
• Number of Coils: 3
• Spring Constant: 1.08 N·mm/deg
• Arm Length: 36 mm
• Winding Angle: Right Winding 135 degree
• Operating Angle: 78 degree
• RoHS: 10
