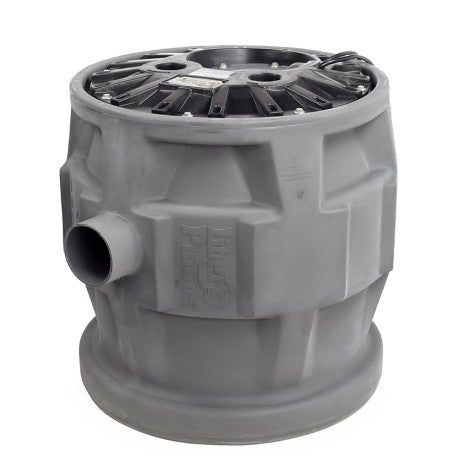

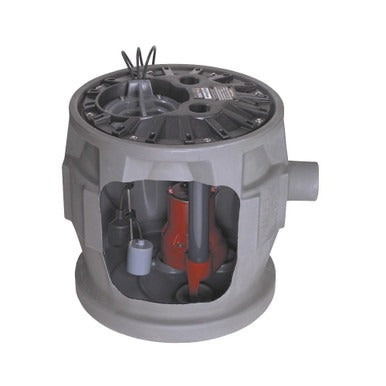

LIBERTY P382LE102 Pro380 Simplex Sewage Package with LE102M Pump

Product Description

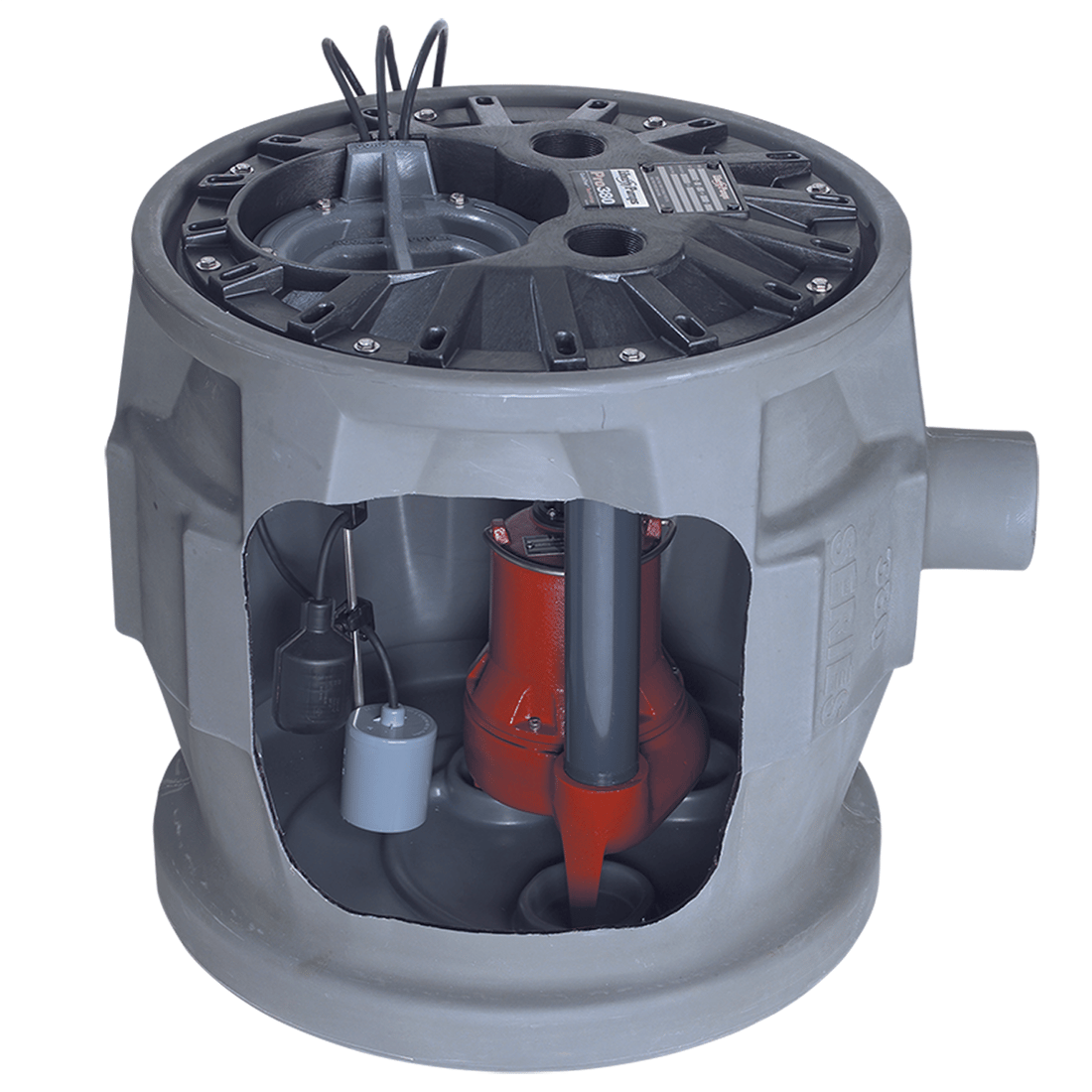

The Liberty P382LE102 Pro380 simplex sewage package is a complete system built for residential sewage ejection needs. This configuration includes a twenty-four by twenty-four inch polyethylene basin that holds forty-one gallons, making it effective in challenging soil conditions. The LE102M sewage pump features a two inch FNPT discharge for efficient waste removal. This system is designed for easy maintenance with QuickTree float technology, allowing for straightforward switch access.

• Includes a high-capacity basin measuring twenty-four by twenty-four inches.
• Equipped with a powerful LE102M sewage pump.
• Features QuickTree float system for simplified switch maintenance.

Product Highlights

The Liberty Pro380 sewage package is ideal for installations requiring reliable sewage ejection in residential settings.

Product Information

Standard Information

• Manufacturer Part Number: P382LE102
• Pump Application: Sewage

Technical Specifications

• Horsepower: 1 hp
• Input Voltage: 208-230V
• Pump Phase: 1
• Output Current: 8 A
• Discharge Size: 2 in
• Discharge Connection: FNPT
• Maximum Head: 36 ft
• Flow Rate: 109 gpm
• RPM: 3450
• Cord Length: 10 ft
• Basin Size: 24 Wide x 24 Deep
• Basin Capacity: 41 Gallons
• Pump Body Material: Cast Iron
• Basin Material: Polyethylene
• Weight: 86 lb
• Automatic Shut-Off: Yes
• Impeller: Two Vane Semi-Open
• Maximum Temperature: 104
• Pump Mounting: Free Standing
• Pump Motor Type: Thermally Protected
