LIBERTY FL32M Submersible Effluent Pump 1/3 HP 1-1/2 FNPT Replacement MPN

Product Description

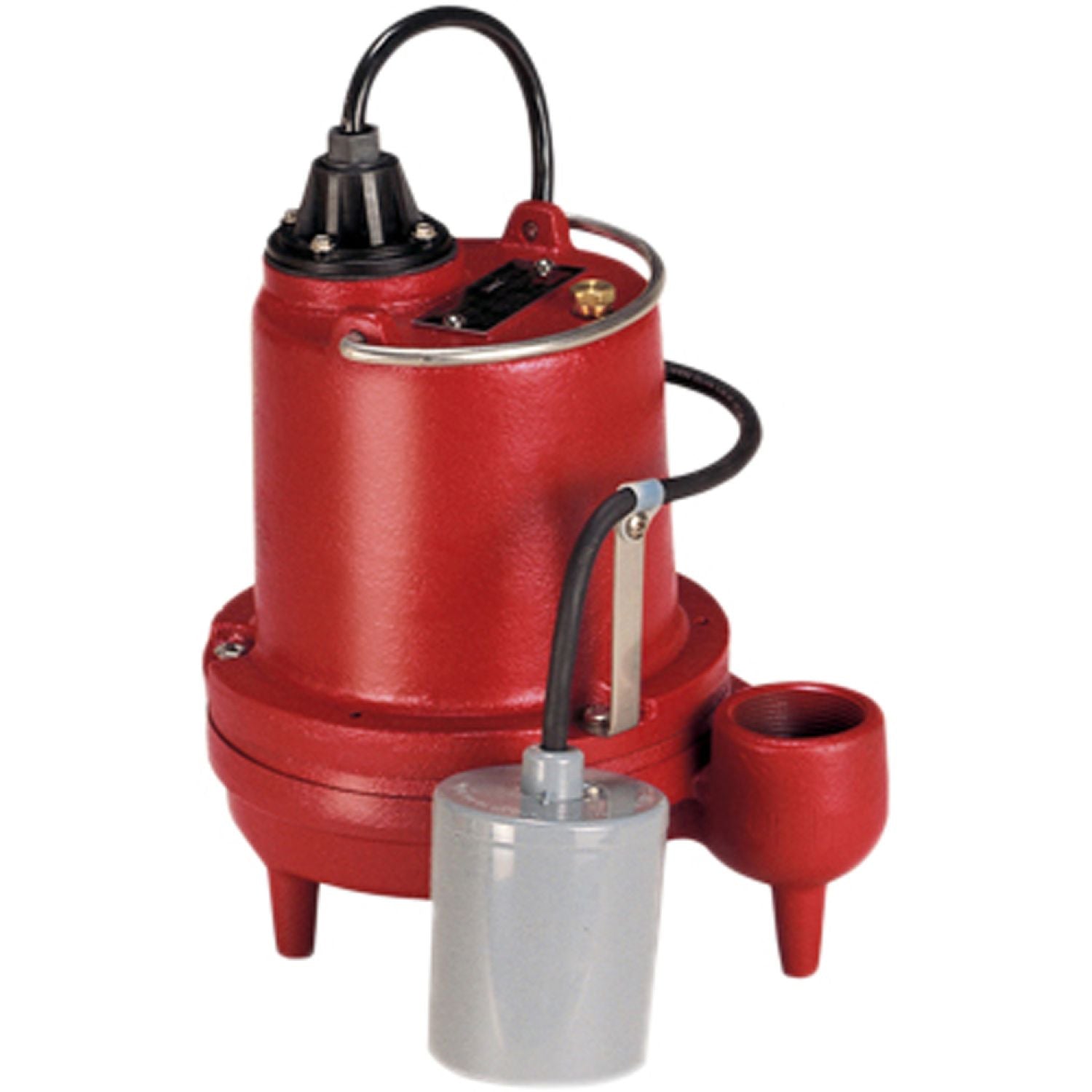

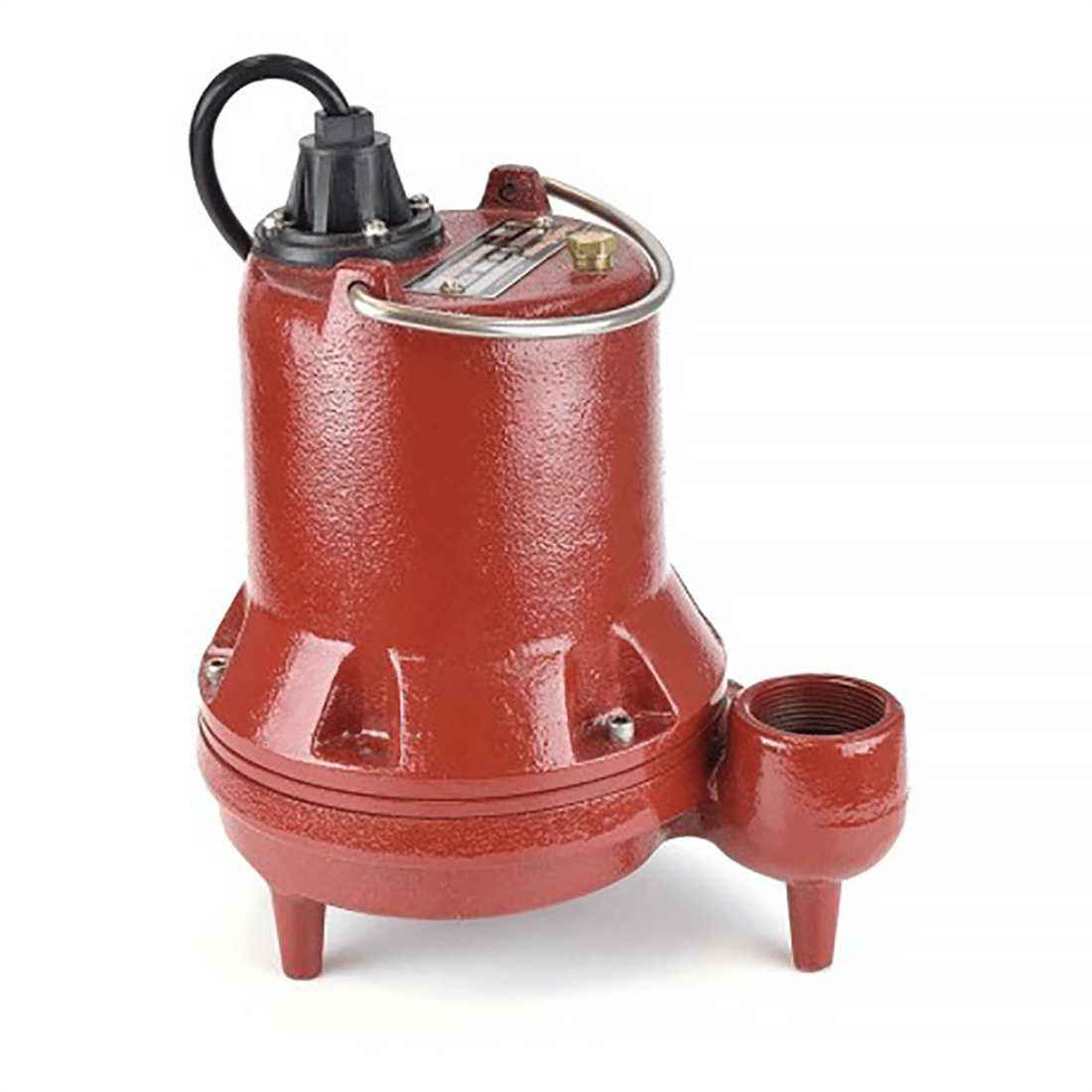

The LIBERTY FL32M is a submersible effluent pump ideal for low-head effluent pumping. It is constructed from cast iron with an epoxy powder coat for durability. The vortex style impeller made of high-temperature engineering polymer allows it to handle solids up to three-fourths of an inch. This pump is compatible with STEP, LPP, mound systems, and liquid waste transfer applications.

• Handles solids up to 3/4 inch.
• Includes quick-disconnect power cord for easy service.
• Features a robust 416 stainless steel rotor shaft.

Product Highlights

This pump can be used with any approved liquid level control or motor control. The design caters to various applications, making it versatile for residential and commercial use.

Product Information

Standard Information

• Brand: LIBERTY
• MPN: FL32M

Technical Specifications

• Horsepower: 1/3 HP
• Voltage: 208-230V
• Phase: 1
• Discharge Size: 1-1/2 FNPT
• Solids Handling: up to 3/4 inch
• Cord Length: 10 feet
• Motor Type: Oil-filled, thermally protected
• Impeller Type: Vortex style, engineered polymer
• Shaft Material: 416 stainless steel
• Maximum Fluid Temperature: 140°F
• Shut-off Head: 19 feet
• Amps: 6.6
• Hertz: 60 Hz
• Weight: 32 lbs
• Height: 9.6 inches
• Width: 9.8 inches
• Minimum Pit/Basin Diameter: 14 inches (Sump) and 18 inches (Effluent)
• Minimum Pit/Basin Depth: 18 inches (Sump) and 24 inches (Effluent)
• Pump Type: Effluent Pump
• Flow Rate: 59 GPM
