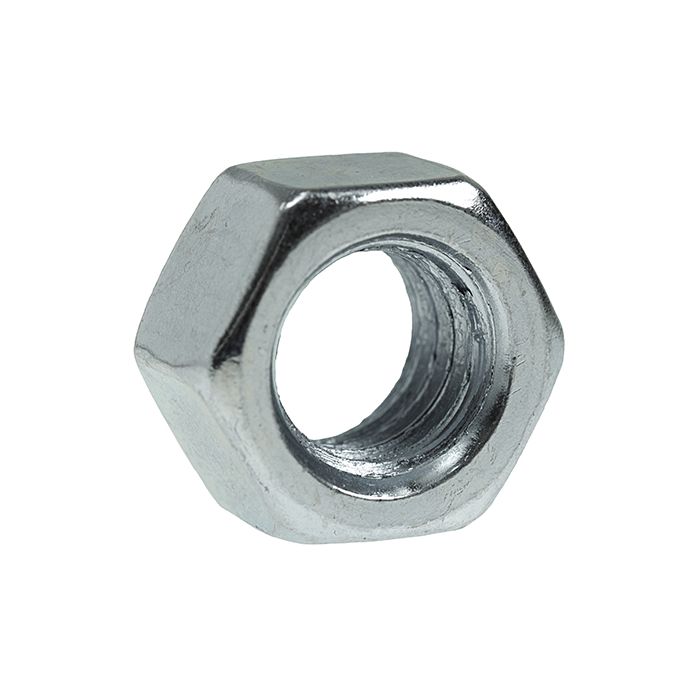

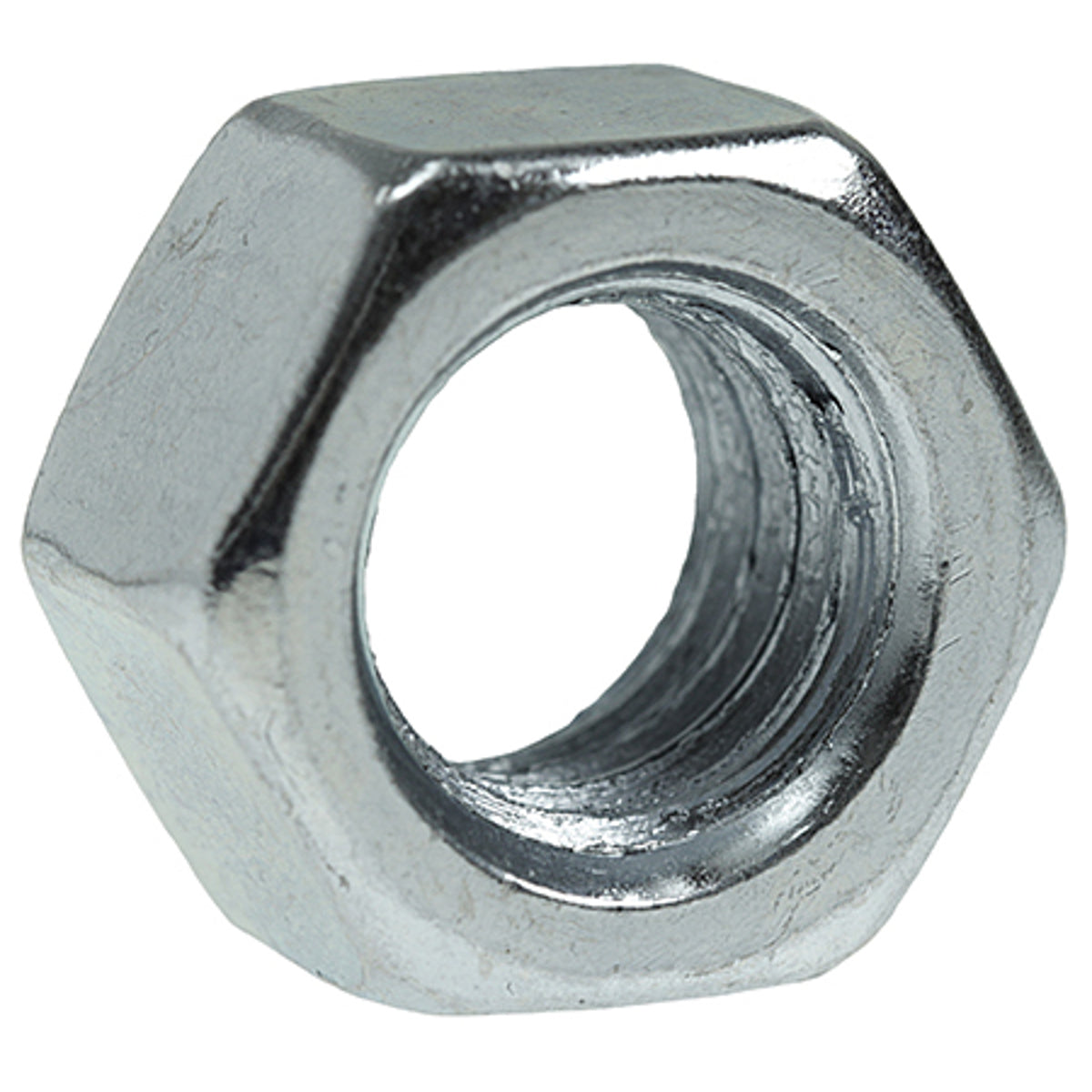

Lh Dottie HN38 Finished Hex Nut 3/8-16

Product Description

The LH DOTTIE HN38 is a finished hex nut with steel construction and a zinc plated finish, featuring a 3/8-16 in. thread size. These nuts are general purpose and used to connect metal and wood components with bolts, screws, studs, and threaded rods. They conform to SAE J995-2017 standards.

• Steel construction
• Zinc plated finish
• 3/8-16 in. thread size

Product Highlights

Finished hex nut with steel construction, zinc plated finish, and 3/8-16 in. thread size for general purpose applications.

Product Information

Standard Information

• Brand: LH DOTTIE
• Manufacturer Part Number: HN38
• Country of Origin: Multiple

Technical Specifications

• Catalog Number: HN38
• Manufacturer: LH Dottie
• Brand: LH DOTTIE
• Country of Origin: Multiple
• Made in USA: No
• Application: General Purpose
• Finish: Zinc Plated
• Special Features: Finished hex nuts are heavier (thicker) and are furnished in sizes 1/4 IN and up ; Zinc plated - general use ; Invincibox up to 1/2 IN
• UPC: 781002170457
• GTIN: 00781002170457
• Item Type: Finished Hex Nut
• Size: 3/8
• Thread Size: 3/8-16 IN
• Material: Steel
• Nominal Diameter: 3/8 Inch
• TPI: 16
• Diameter - Thread Size: 3/8-16
• Measurement System: Imperial
• Thread Type: 2B
• Type: Finished
• Nut Type: Hex
• Grade: 2
• Dia./Thread Size: 3/8''-16
• Width: 0.563'' to 0.551''
• Height: 0.337'' to 0.320''
• Fits Bolt Sizes: 3/8''
• Thread Pitch\Thread Per Inch: 16
• Carbon Steel: Carbon Steel
• Rockwell Hardness: HRC 32 max.
• UNSPSC: 31161727
• RoHS Compliant: Yes
• Meets/Exceeds: ASME B1.1
• ECCN: EAR99
