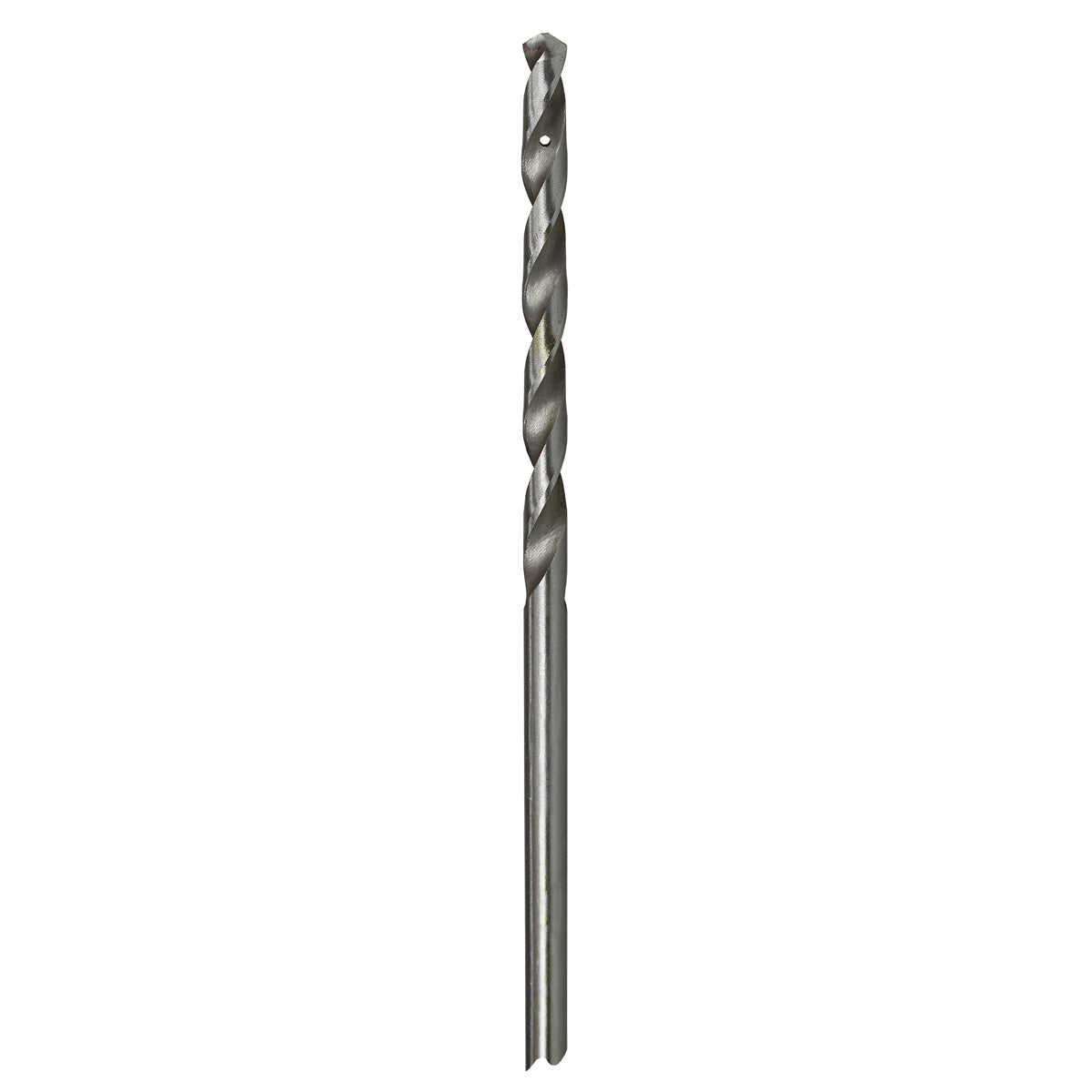

Lh Dottie BLH1412 Bell Hanger Bit 1/4 in. x 12 in.

Product Description

The LH DOTTIE BLH1412 bell hanger bit is designed for drilling and fishing small gauge wires through studs or headers. It features an aggressive point for fast drilling in wood and metal and a tapered design for quick chip removal. The bit has a 1/4 in. drill size and 12 in. overall length, suitable for telephone, security, and cable installations.

• Fish Hole in Flute for Pulling Wire
• Tapered for Quick Chip Clearance
• Aggressive Point for Fast Drilling In Wood & Metal

Product Highlights

Ideal for drilling small gauge wires, this bit features an aggressive point for fast drilling and a tapered design for quick chip removal.

Product Information

Standard Information

• Brand: LH DOTTIE
• Manufacturer Part Number: BLH1412
• Country of Origin: Multiple

Technical Specifications

• Catalog Number: BLH1412
• Manufacturer: LH Dottie
• Brand: LH DOTTIE
• Country of Origin: Multiple
• Made in USA: No
• Application: Telephone Installations, Security and Cable
• Special Features: Features: Fish Hole in Flute for Pulling Wire, Tapered for Quick Chip Clearance, Aggressive Point for Fast Drilling In Wood & Metal
• UPC: 781002217527
• GTIN: 00781002217527
• Item Type: Bell Hanger Bit
• Type: Bell Hanger
• Drill Size: 1/4 Inch
• Overall Length: 12 Inch
• Shank Type: Straight
• Manufacturer #: BLH1412
• Shank Size (in): 1/4''
• Chuck Size (in): 3/8''
• Bit Diameter (in): 1/4''
• Material: High Carbon Steel
• Finish: Black Oxide & Polished
• Coating: Two-Tone Powder
• Construction: One Piece
• Drill Point: 82
• Number of Flutes: One
• Flute Length: 3''
• Flute Type: Spiral
• RPM: up to 800
• Applications: Telephone, Security, and Cable Installations
• UNSPSC: 27112841
• RoHS Compliant: Yes
• Industry Standards: ANSI
• ECCN: EAR99
• Shank Size: 1/4 in.
• Brand Name: Dottie
• Manufacturer Part Number: BLH1412
• Product Model: BLH1412
