Product Description

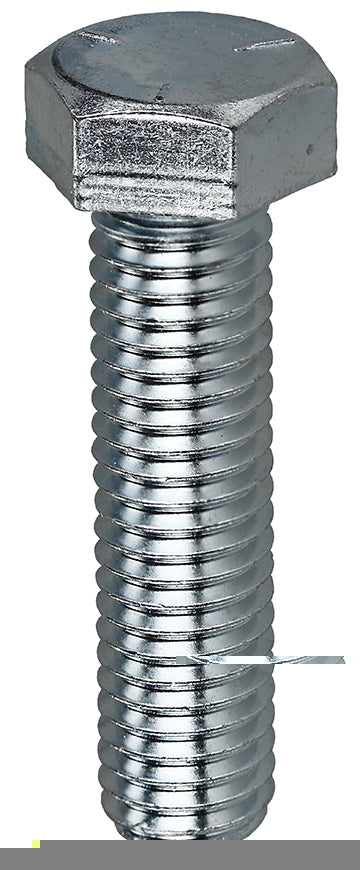

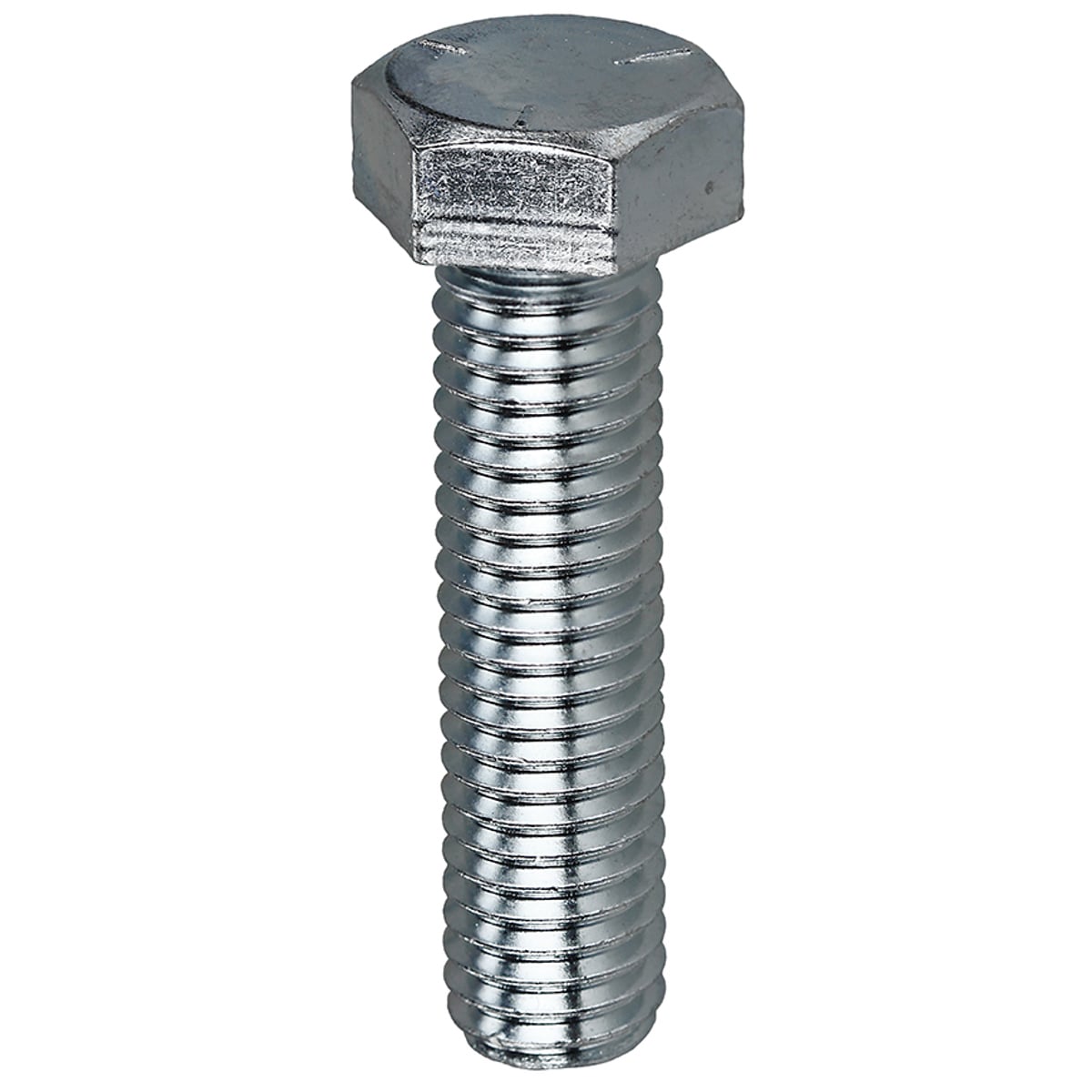

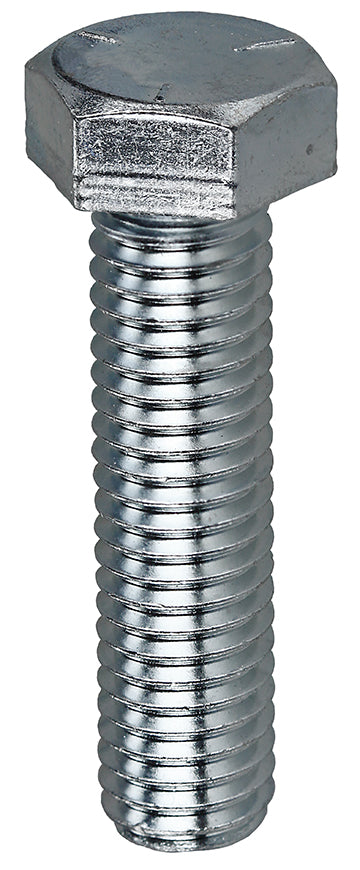

The LH Dottie 5MB1434 Cap Screw is a Grade 5 steel fastener with a zinc plated finish and a hex head type. It features a 1/4-20 inch thread size and a 3/4 inch length, designed for medium strength applications requiring controlled clamp force and high loads. This cap screw offers 120,000 PSI tensile strength and is suitable for industrial use.
- Features a partial thread design for specific applications
- Offers a high tensile strength of 120,000 PSI
- Constructed from Grade 5 steel for durability
Product Highlights
Zinc plated hex head cap screw for medium strength applications.
Product Information
Standard Information
-
Brand: LH DOTTIE
-
Manufacturer Part Number: 5MB1434
-
Country of Origin: Multiple
Technical Specifications
-
MPN: 5MB1434
-
Manufacturer: LH Dottie
-
Brand: LH Dottie
-
Finish: Zinc Plated
-
Material: Grade 5 Steel
-
Type: Cap Screw
-
Length: 3/4 Inch
-
Size: 1/4-20 x 3/4 Inch
-
Head Type: Hex
-
Grade: 5
-
Tensile Strength: 120,000 PSI
-
Thread Type: 2A
-
Point Type: Chamfered
-
Thread Size: 1/4-20
-
Hex Size: 7/16 Inch
-
Head Diameter: 0.438 to 0.428 Inch
-
Head Height: 0.163 to 0.150 Inch
-
Threads Per Inch: 20
-
Rockwell Hardness: HRC 34 - 25
-
UNSPSC: 31161620
-
RoHS Compliant: Yes
-
Standards Met: ASME B18.2.1, SAE J429
-
Application: Industrial Strength, High Controlled Clamp Forces, High Load Requirements
-
Country of Origin: China
