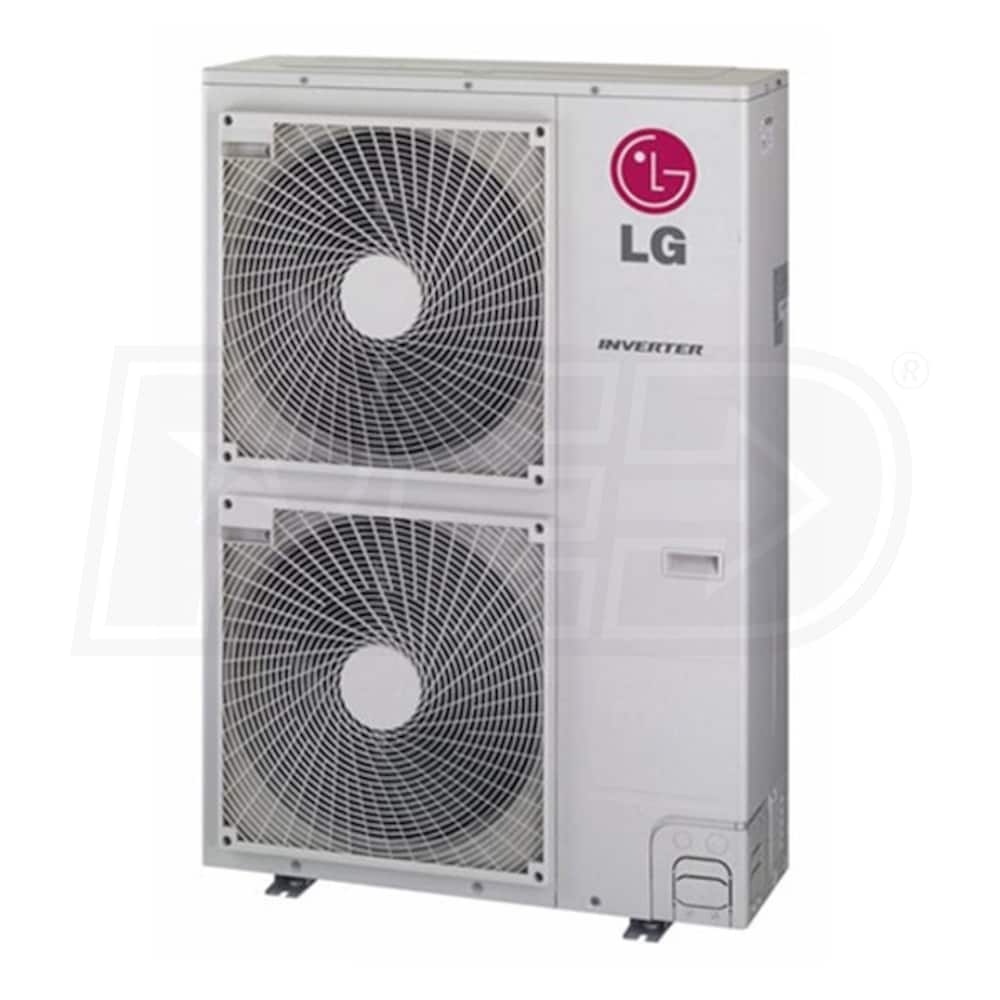

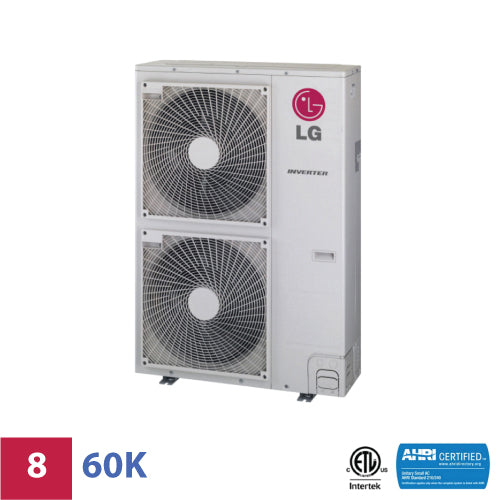

LG LMU600HV Multi F MAX Outdoor Condenser

Product Description

The LG LMU600HV is an outdoor condenser designed for multi-zone mini-split systems. It can heat and cool up to eight zones with the help of compatible indoor units and a branch box. The unit uses inverter technology, featuring an electronic expansion valve and variable speed compressor to control refrigerant flow. Corrosion protection is ensured with the Gold Fin coating on the heat exchanger. The design incorporates a brushless DC motor and twin rotary compressor.

• Outdoor condenser for multi-zone systems.
• Supports heating and cooling across eight zones.
• Inverter technology and Gold Fin coating included.

Product Highlights

This unit efficiently handles both heating and cooling requirements for residential or commercial applications.

Product Information

Standard Information

• Product Line: Multi F Max
• Type: Outdoor Condenser

Technical Specifications

• Operating Mode: Heating and Cooling
• Maximum Number of Zones: 8
• Multi-Zone Compatible: Yes
• Cooling BTU: 60000
• Heating BTU: 64000
• Refrigerant Type: R-410A
• Installation Location: Outdoor
• Branch Box Required: Yes
• Voltage: 208/230 Volts
• Frequency: 60 Hz
• Maximum Line Length: 475.7 Feet
• Gas Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Product Height: 54.354 Inches
• Product Width: 37.417 Inches
• Product Depth: 13 Inches
• Product Weight: 214 Pounds
• Maximum Sound Level: 58 dB
• ETL Listed: Yes
• UL Listed: Yes
• ISO Certified: Yes
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
• SEER Cooling: 20.5
• EER: 11.4
• MCA (A): 32.2
• MOP (A): 45
• Recommended Fuse Size (A): 40
