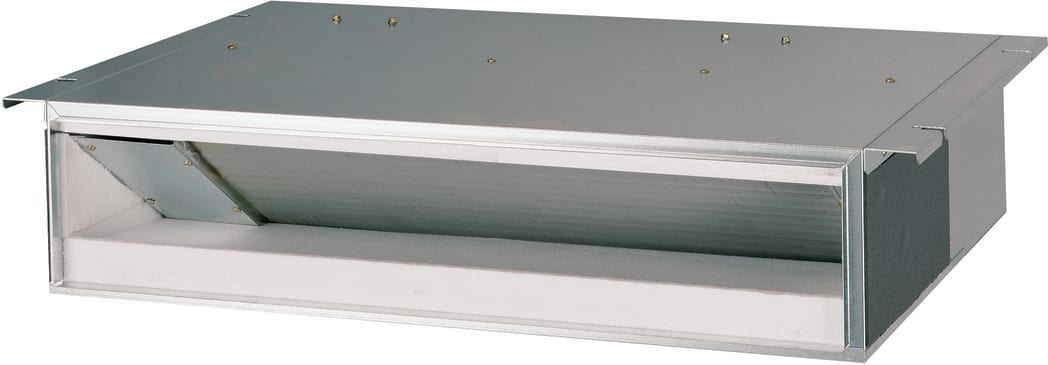

LG LMDN186HV 18,000 BTU Low Static Concealed Duct Indoor Unit

Product Description

The LG LMDN186HV is a mini-split indoor unit designed for low static pressure ducting. It is suitable for applications where a discreet installation is required. This unit allows for efficient heating and cooling in commercial HVAC settings.

• Concealed duct design for minimal visibility.
• Works well with low-static ducted systems.
• Compatible with LG Multi F multi-zone solutions.

Product Highlights

This indoor unit aids in creating comfortable environments without visible units inside the space.

Product Information

Standard Information

• Brand: LG
• MPN: LMDN186HV

Technical Specifications

• Product Type: Air Conditioner
• Type: Concealed Duct
• Operating Mode: Heating and Cooling
• Refrigerant Type: R-410A
• Indoor Unit Size: 18,000 BTU
• Maximum Air Flow: 530 CFM
• Minimum Air Flow: 353 CFM
• Minimum Sound Level: 31 dB
• Maximum Sound Level: 36 dB
• Gas Connection Size: 1/2 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 7.48 inches
• Product Width: 35.44 inches
• Product Depth: 27.56 inches
• Product Weight: 51 pounds
• Certifications: ETL Listed, UL Listed, ISO Certified
• Parts Warranty: 5 Years
