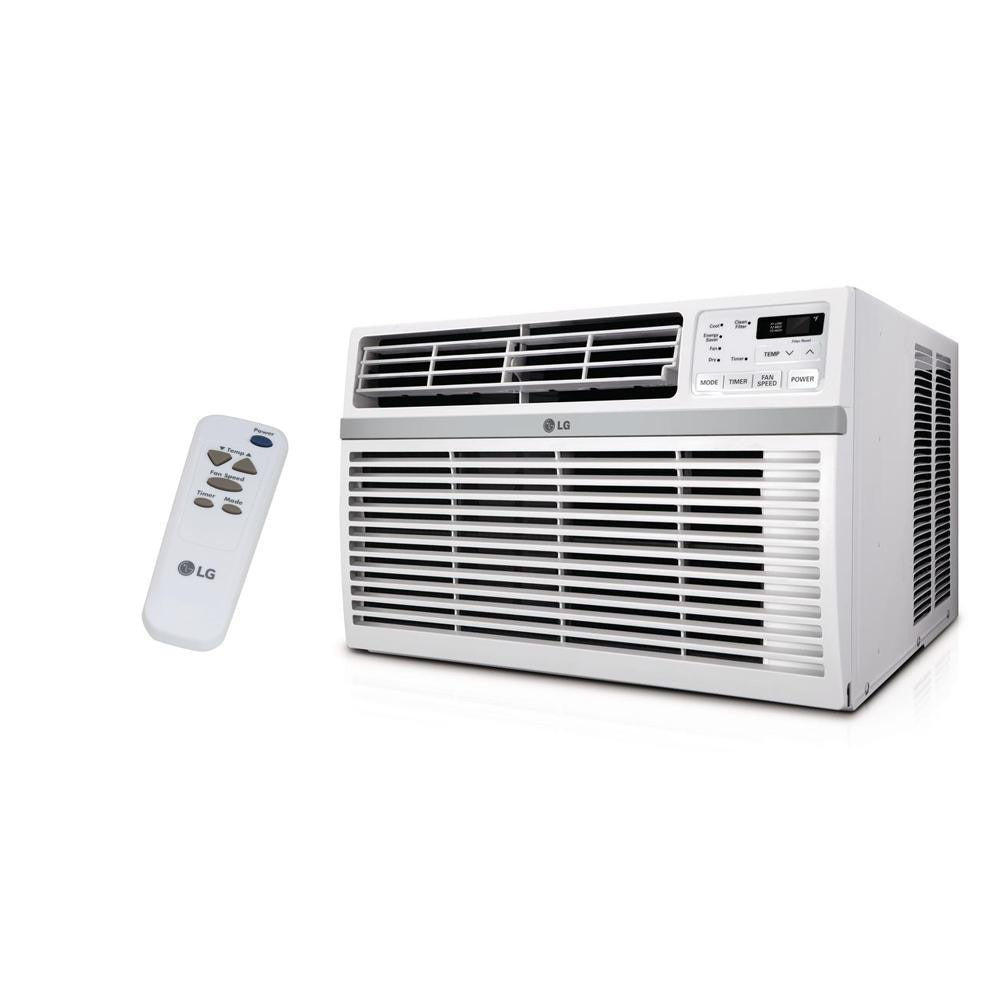

Lg Electronics LW2524RD Window Air Conditioner 24000 Btu

Product Description

The LG ELECTRONICS LW2524RD is a window-mount, cooling-only air conditioner rated at 24,000 BTU/h, designed for residential and light-commercial spaces up to 1,560 square feet. It operates on a 230/208-volt, 15-amp circuit and delivers an EER and CEER rating of 10.3, indicating solid energy efficiency for a unit of this capacity. Airflow is rated at 530 CFM across three fan speeds. The unit features a 24-hour on/off timer, four-way air direction control, and a power-failure auto-restart function. Installation and servicing are typically handled by licensed HVAC technicians or qualified electricians.

The LW2524RD is suited for single-zone cooling applications where a central or split-system installation is not practical or desired. Typical install scenarios include large rooms, open-plan living areas, server rooms, or commercial suites requiring dedicated supplemental cooling. The unit mounts in a standard double-hung or slider window opening and is cooled by an air-cooled vented method, exhausting condenser heat directly outside. It is for cooling-only use and does not function as a heat pump.

Key Features

• 24,000 BTU/h cooling capacity covers up to 1,560 square feet
• EER and CEER rating of 10.3 for energy-efficient operation
• Three cooling speeds and three fan-only speeds with Auto Cool mode
• Four-way air direction for even distribution across large spaces
• 24-hour on/off timer with remote control included
• Power-failure auto-restart resumes last settings after an outage

Compatibility

Designed for window installations requiring a 230/208-volt, 15-amp dedicated circuit. No specific OEM replacement compatibility was provided with this product data.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified electrician familiar with NEC requirements for dedicated branch circuits. Always shut off power at the breaker before making any electrical connections. Confirm the window opening and structural sill can support the unit weight of 130 pounds before mounting. Do not operate without the window mounting kit fully secured and all side curtains sealed to prevent hot air recirculation.
