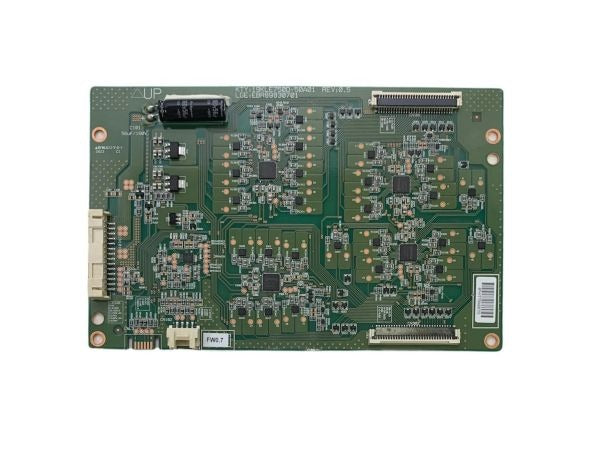

Lg ebr89830701 Led Pcb Driver Assembly

Product Description

The LG ebr89830701 is an LED PCB driver assembly designed to supply and regulate power to the LED backlight system in LG flat-panel televisions. The board receives a control signal from the main board and converts incoming electrical power into the precise voltage and current required to drive the LED backlight array. It continuously adjusts power output to maintain consistent LED brightness across the display. This assembly is typically serviced by electronics repair technicians and qualified AV service professionals performing backlight or power-stage repairs.

This driver assembly is intended for use in LG flat-panel televisions that utilize an LED backlight configuration. It mounts at the rear of the display panel and attaches to the internal frame structure. The part is appropriate for panel-level repairs where the LED driver stage has failed, resulting in a dim display, backlight flickering, or a no-backlight condition with the panel otherwise functional.

Key Features

• Converts and regulates input power to the correct voltage and current for the LED backlight array
• Receives control signals from the TV main board to modulate LED brightness
• Rear-mounted design attaches directly to the internal display frame
• OEM-specified assembly for accurate fitment and electrical compatibility

Compatibility

Designed as an OEM-style replacement LED PCB driver assembly for compatible LG flat-panel televisions with LED backlight systems. Confirm panel model and board revision before ordering.

Installation Notes

Installation should be performed by a qualified electronics technician familiar with flat-panel display servicing. Disconnect the television from mains power and allow capacitors to fully discharge before opening the chassis or handling any internal boards. Handle the PCB by its edges to avoid static discharge damage to components. Reconnect all ribbon cables and wire harnesses fully and in the correct orientation before restoring power.
