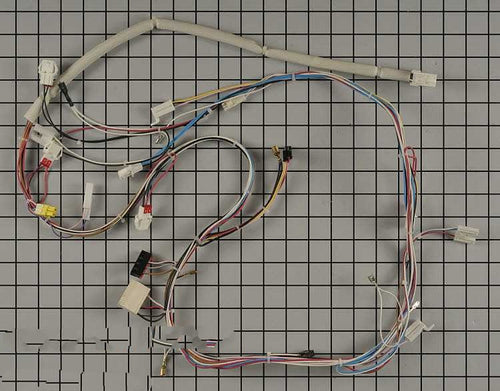

Lg ead63206002 Single Wire Harness Oven Range Part

Product Description

The LG ead63206002 is a single wire harness designed as a replacement electrical component for LG ovens and ranges. Wire harnesses route and protect the low-voltage and line-voltage wiring that connects control boards, heating elements, sensors, and other internal components. A failed or damaged harness can cause intermittent faults, error codes, or complete loss of function in the affected circuit. This part is sourced directly from LG and is intended to restore original wiring integrity in the appliance. Installation is typically performed by an appliance technician or experienced service professional.

This wire harness is intended for use in LG oven and range units as a service replacement part. It fits within the internal wiring assembly and connects specific electrical components within the appliance's circuit path. The exact position and circuit served will vary by model. Refer to the appliance's wiring diagram and service manual to confirm the correct harness location before installation.

Key Features

• OEM LG replacement single wire harness for oven and range applications
• Restores original wiring path and connector integrity
• Designed to match factory connector type and wire routing
• Direct replacement to maintain appliance electrical safety standards

Compatibility

Designed as an OEM-style replacement wire harness for LG oven and range appliances. Consult the appliance model and service documentation to confirm fitment before ordering.

Installation Notes

Disconnect power to the appliance at the circuit breaker or by unplugging the unit before beginning any wiring service. Wire harness replacement is typically performed by a licensed appliance technician following the manufacturer service manual and applicable local electrical codes. Do not splice, extend, or modify the harness connectors. Verify all connectors are fully seated and secured before restoring power.

Technical Specifications

• Part Type: Single Wire Harness
• Application: Oven and Range

Standard Information

• Brand: LG
• Manufacturer Part Number: ead63206002
