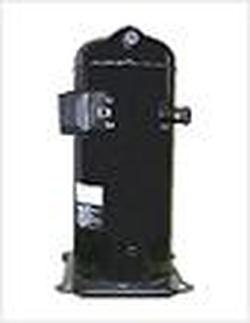

LG APA024KAB Scroll Compressor

Product Description

The LG APA024KAB Scroll Compressor is a reliable component for HVAC systems. It has a BTU output of twenty-two thousand four hundred and operates at sixty Hertz. This compressor is ideal for both residential and commercial applications, ensuring efficient cooling performance.

• Hermetic compressor housing
• Compatible with R-410A refrigerant
• Includes internal motor overload protection

Product Highlights

This scroll compressor provides a smooth and quiet operation while maintaining energy efficiency.

Product Information

Standard Information

• Brand: LG
• MPN: APA024KAB

Technical Specifications

• Weight: 57 pounds
• Motor HP: 1 8/9 HP
• Voltage: 208-230 VAC
• Height: 22 inches
• Length: 10.5 inches
• Width: 11 inches
• BTU Output: 22,400
• Compressor Type: Scroll
• Compressor Housing: Hermetic
• Refrigerant: R-410A
• Suction Line Size (OD): 3/4 inch
• Discharge Connection Size (OD): 1/2 inch
• Evaporating Temperature: 45°F (7.22°C)
• Condensing Temperature: 130°F (54.44°C)
• Cycle/Hertz: 60 Hz
• Locked Rotor Amps (LRA): 58
• Rated Load Amps (RLA): 11.4
• Oil Type: Polyolester (POE)
• Oil Charge Initial (oz.): 27.1 oz.
• Phase: Single
• Mounting Dimensions: 7.5 x 7.5 inches
• Protection: Internal motor overload protection
• Origin: Made in South Korea
