Leviton TSM10-1LI Preset Toggle Slide Dimmer 1000W REPLACEMENT MPN

Product Description

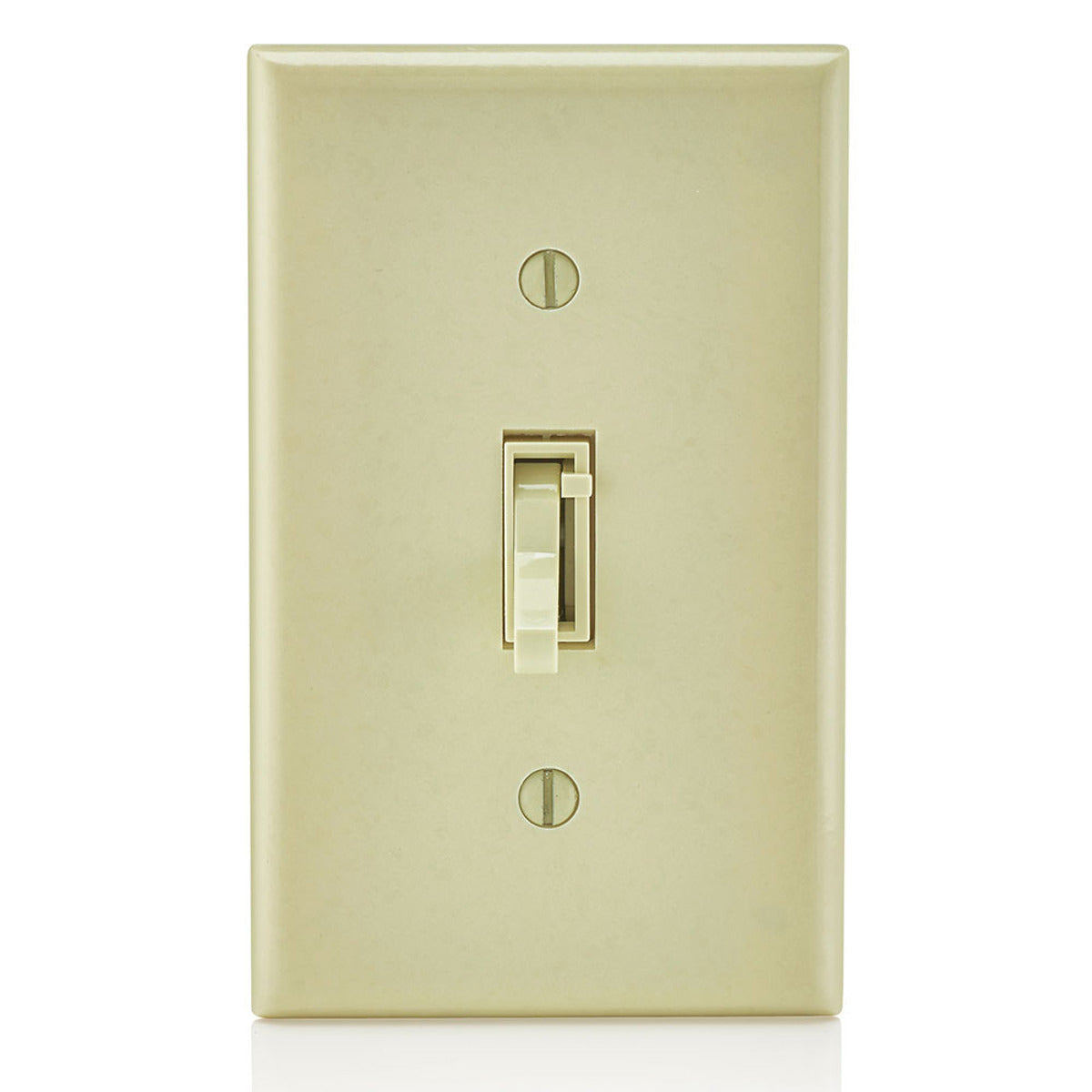

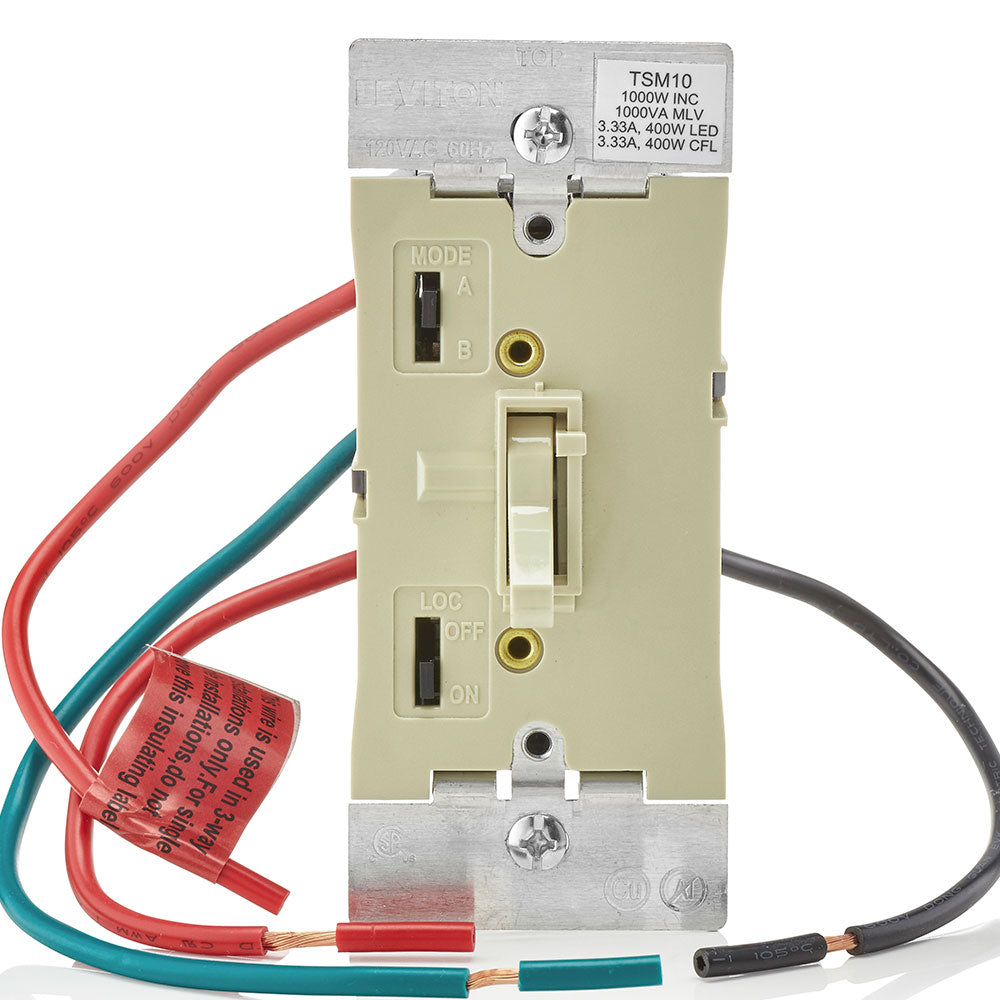

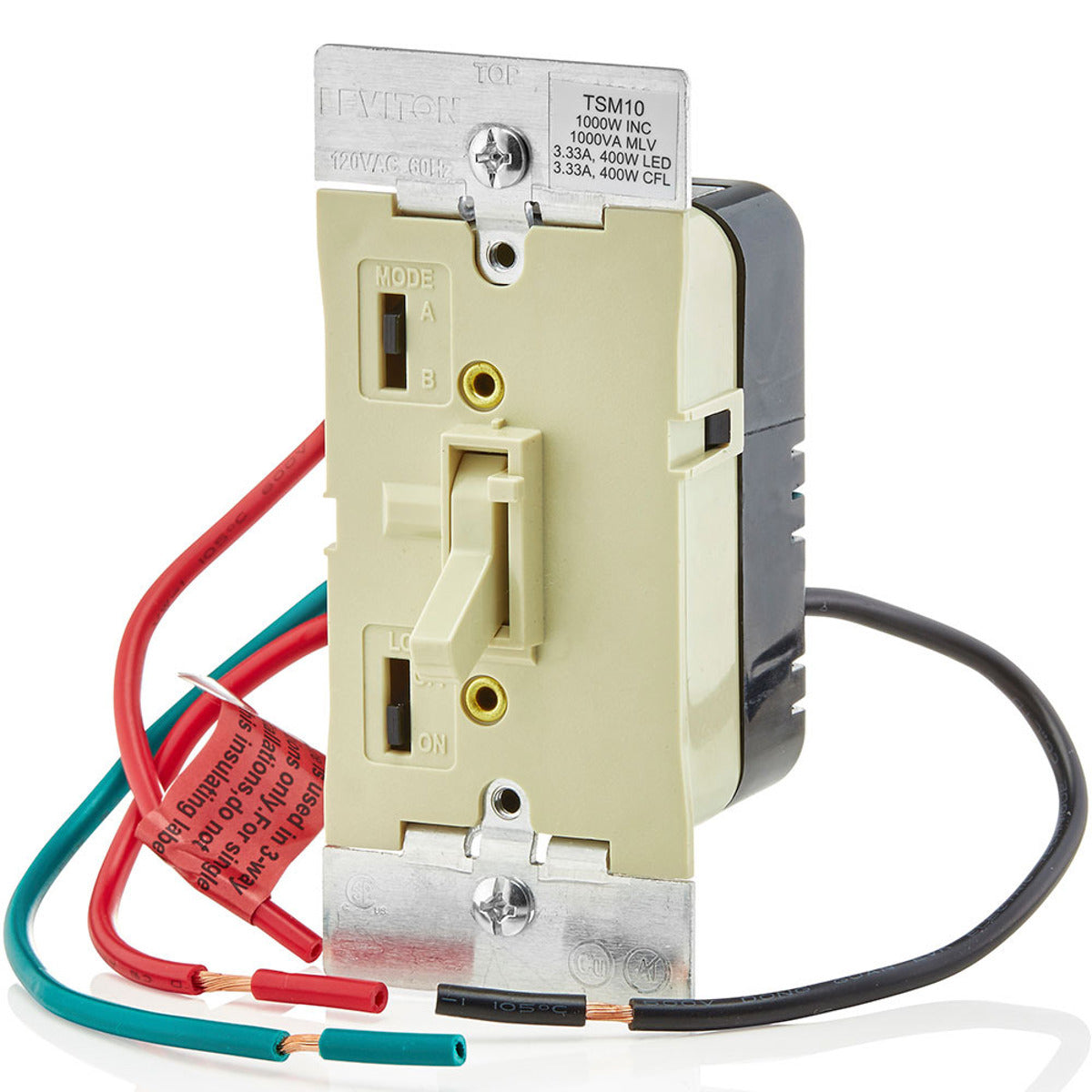

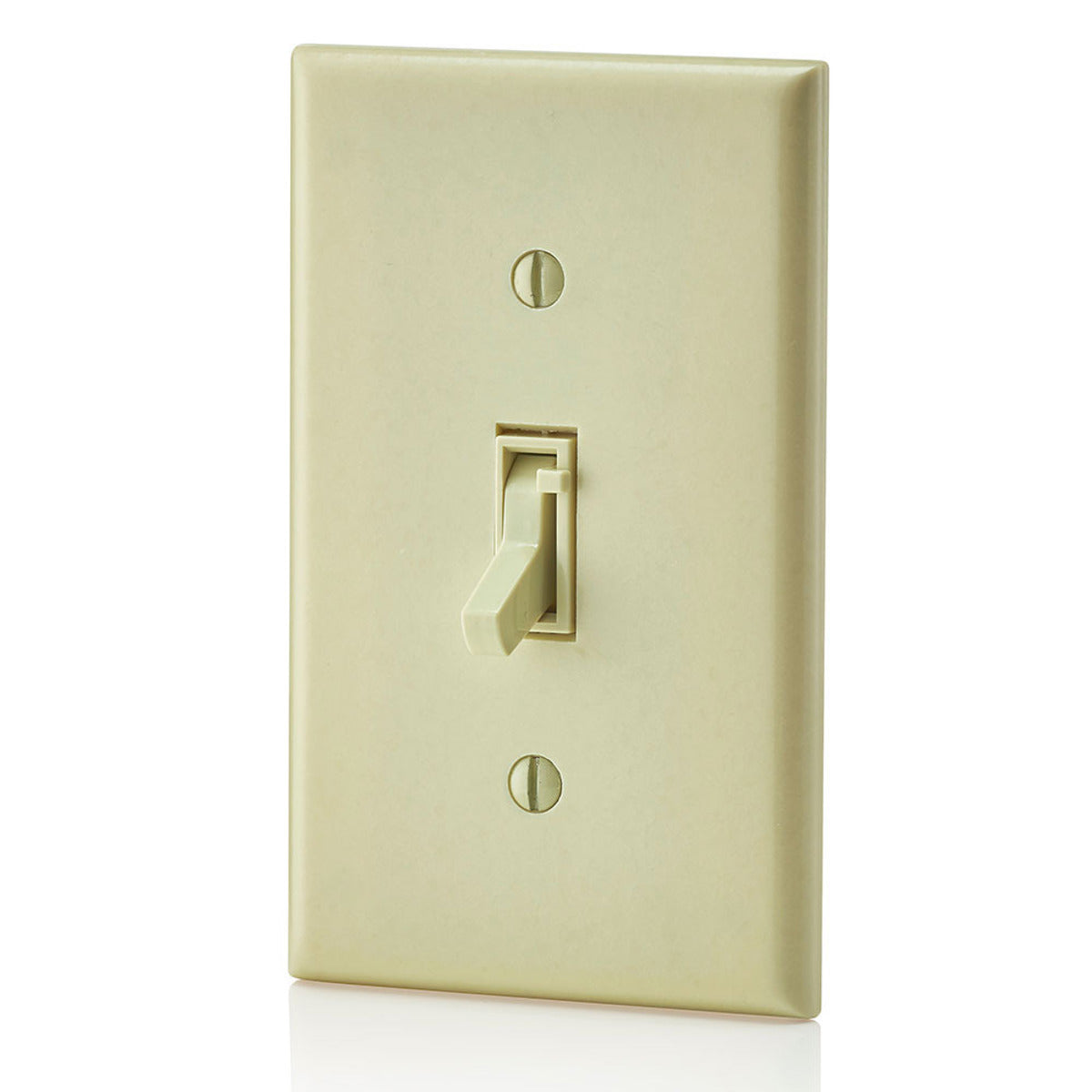

The LEVITON TSM10-1LI is a preset toggle slide dimmer designed for single pole or 3-way applications. It supports 1000W for incandescent/MLV and 400W for LED/CFL at 120VAC. This dimmer combines a toggle switch with a full-range slide bar for precise lighting control. Ideal for residential use, it enhances functionality without altering decor.

• Preset function to preserve selected dimming level.
• Suitable for multi-gang installations without fin removal.
• Compatible with incandescent, halogen, dimmable LEDs, and dimmable CFL loads.

Product Highlights

This dimmer features a slim design, built-in radio/TV interference filter, and microprocessor control for optimal performance with LED and CFL lamps.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: TSM10-1LI
• Country of Origin: China

Technical Specifications

• Catalog Number: TSM10-1LI
• Manufacturer: Leviton
• Brand: Leviton
• Country of Origin: China
• Made in USA: No
• Application: Residential
• Special Features: Preset
• UPC: 078477771747
• GTIN: 00078477771747
• Item Type: Dimmer
• Voltage Rating: 120 VAC
• Control: Toggle Preset Slide ON/OFF
• Frequency Rating: 60 Hz
• Lamp Type: CFL/Incandescent/LED/MLV
• Manufacturer Part Number: TSM10-1LI
• Mounting Type: Surface
• Number of Poles: 1
• Power Rating: 400/1000 W, 1000 VA
• Standards/Approvals: UL 1472|cCSAus 184.1|NOM Approved
• Temperature Rating: 0 to 55 deg C
• Type: 3-Way Electro-Mechanical
• Action: Toggle Switch for ON/OFF, slide bar for lighting level control
• Load Rating: 1000W Incandescent, 1000VA MLV, 400W LED and CFL
• Load Type: Incandescent, Halogen, Dimmable LED, Dimmable CFL
• Locator Light: Green locator light that can be disabled
• Phase Control: Forward phase control
• Preset: Slide bar preserves desired lighting level
• Protection: Radio/TV Filter
• Standards and Certifications: cCSAus, NOM
• Style Name: Toggle Slide
• Switch Type: Single-Pole & 3-Way
• Wallplate: Order Separately
• Dimensions: H: 4.13 in
• W: 1.75 in
• D: 1.32 in
• Rated Voltage: 120V
• Terminal: Push On
• Voltage: 120V AC
• Operation Mode: ON-OFF
• Smart Home Compatibility: Not Smart Home Compatible
• Compatible Devices: Dimmable LED, CFL, Incandescent, Halogen, Magnetic Low Voltage Bulbs
• Control Type: Slide Action Dimming
• Number of Positions: 2
• Wattage: 1000 watts
• Circuit Type: 3-way
• Connector Type: Quick Connect
• Material Type: Thermoplastic
• Contact Material: Brass
• Specification Met: CSA, cUL
• Model: TSM10-1LI
• MPN: TSM10-1LI
• Amperage (A): 0 A
• Color Family: White
• Color/Finish: Ivory
• Commercial/Residential: Residential
• Compatible Bulb Type: CFL,Halogen,Incandescent,LED
• Device Style Type: Dimmer w/o Wall Plate
• Dimmable Capability: Dimmable
• Dimmer Type: Slide,Toggle
• Durability: Not Applicable
• Electrical Features: Programmable
• Finish Type: Matte
• Function Type: Single Pole
• Included: No Additional Items Included
• Indoor/Outdoor: Indoor
• Maximum Amperage (A): 0 A
• In-Wall: In-Wall
• Package Quantity: 1
• Rating: General Purpose
• Switch Depth (in.): 1.4 in
• Switch Height (in.): 4.1 in
• Switch Style: Toggle On/Off, Mini-Slide Dimming
• Switch Width (in.): 1.8 in
• Wall Plate Configuration: Toggle
• Wattage (W): 1000 W
• Wattage Equivalence: 1000
• Zoro #: G404392791
• UPC #: 078477771747
• Item - Motion Sensing and Dimming: Dimmer
• Switch Style - Motion Sensing and Dimming: Slide, Toggle
• Switch Type - Motion Sensing and Dimming: 1-Pole, 3-Way
• Number of Gangs: 1
• Operating Voltage - Motion Sensing and Dimming: 120V AC
• Max. Capacity @ 120VAC: 1000VA (MLV), 1000W (Incandescent), 400W (CFL, LED)
• Color - Motion Sensing and Dimming: Ivory
• Description/Special Features: Built-in Radio/TV Interference Filter, Compact, Integrated Linear Full-Range Slide Control, Microprocessor Control Offers Flexibility, Programming Feature Allows Users to Modify the Dimming Range, Slim
• Installation Location - Motion Sensor: Wall Switch Box
• Lighting Technology: Fluorescent, Halogen, Incandescent, LED
• Item: Lighting Dimmer
• Wall Plate: Not Included
• Standards: cCSAus, NOM, RoHS Compliant
• Minimum Operating Temperature: 32 Degrees F
• Maximum Operating Temperature: 131 Degrees F
• Number of Switches: 1
• Illuminated: Yes
• Rated Frequency: 60 Hz
• Series: ToggleSlide
• Load Rating @ 120V AC: 1,000VA (MLV), 1,000W (Incandescent), 400W (CFL, LED)
• Dimming Type: Full Continuous Dimming
• Neutral Required: No
• Includes Wall Plate: Wall Plate Not Included
• Operating Voltage: 120V AC
• Overall Height: 4.1 in
• Overall Depth: 0.7 in
• Overall Width: 1.75 in
