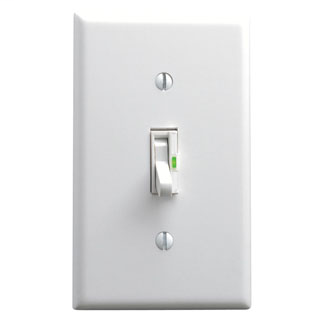

Leviton TGI061LW Toggletouch Dimmer 600W 120V

Product Description

The LEVITON TGI061LW is a digital preset dimmer designed for incandescent lighting loads in residential and light commercial applications. Rated at 600 watts and 120 volts AC at 60Hz, it uses a ToggleTouch control interface that lets the user switch lights on and off while returning to a previously set dim level each time. The switch is wired in a single-pole or 3-way configuration, making it suitable for lighting circuits controlled from one or two locations. A built-in LED locator light makes the switch easy to find in a dark room. The white finish suits standard decorator wallplates.

This dimmer is intended for single-gang wallbox installations controlling incandescent lamp loads up to 600 watts. It fits residential hallways, living rooms, stairwells, and similar spaces where 3-way dimming is needed. The preset feature holds the last-used dim level in memory, so the circuit returns to that level on the next activation without manual readjustment. Electricians and qualified installers handle this device in both new construction and retrofit wiring scenarios.

Key Features

• 600-watt maximum load rating for incandescent lighting
• 120 volt AC, 60Hz single-phase operation
• Single-pole and 3-way wiring compatibility for one- or two-location control
• Digital preset memory returns to last-used dim level on each activation
• ToggleTouch rocker interface separates on/off switching from dim-level setting
• LED locator light aids visibility in unlit spaces
• White finish for use with standard wallplates

Compatibility

Designed as an OEM-style replacement or new-installation dimmer for single-gang incandescent lighting circuits requiring single-pole or 3-way control at 120 volts AC.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Turn off the branch circuit breaker and verify the circuit is de-energized with a non-contact voltage tester before removing the existing switch or dimmer. This device is rated for incandescent loads only; verify lamp type compatibility before wiring. In a 3-way application, a compatible 3-way dimmer or switch is required at the second location.

Technical Specifications

• Load Type: Incandescent
• Maximum Load: 600 watts
• Voltage: 120 volts AC
• Frequency: 60Hz
• Wiring Configuration: Single-Pole / 3-Way
• Control Type: Digital Preset ToggleTouch
• Locator Light: LED
• Color: White
• UPC: 07847719357

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: TGI061LW
