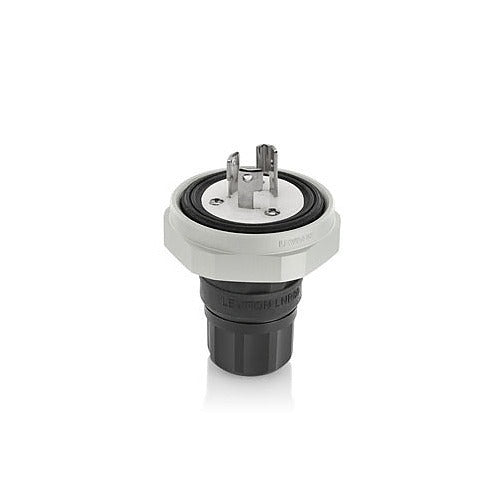

Leviton Telcom LNR80-7E Locking Plug Nema L7-15P 15A 277V

Product Description

The LEVITON TELCOM LNR80-7E is a NEMA L7-15P twist-locking plug rated for 15 amps at 277 volts. It is designed for use in single-phase electrical distribution systems where a secure, vibration-resistant connection is required. The L7-15P configuration provides a positive locking engagement that prevents accidental disconnection under load. This plug is typically installed by licensed electricians on power cords, equipment leads, and service connections in commercial and industrial environments where 277-volt single-phase circuits are common.

The LNR80-7E is suited for commercial lighting circuits, industrial equipment connections, and other applications that operate on 277-volt single-phase power. The NEMA L7-15P twist-lock standard is widely used in facilities where accidental cord pullout poses a safety or operational risk. This plug ships as a single unit and is intended for field-wiring by qualified electrical tradespeople.

Key Features

• NEMA L7-15P twist-locking configuration for secure, pull-resistant connections
• Rated 15 amps at 277 volts single-phase
• Field-wireable design for cord-end installation by electricians
• Sold individually as a single unit

Compatibility

Designed as an OEM-style replacement or field-install twist-locking plug for 277-volt single-phase circuits using the NEMA L7-15P standard.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit before wiring the plug. Ensure conductor terminations are properly torqued to the terminal screws per the manufacturer terminal markings and NEC requirements. Verify the receptacle at the mating end is also rated for the L7-15 configuration before energizing the circuit.
