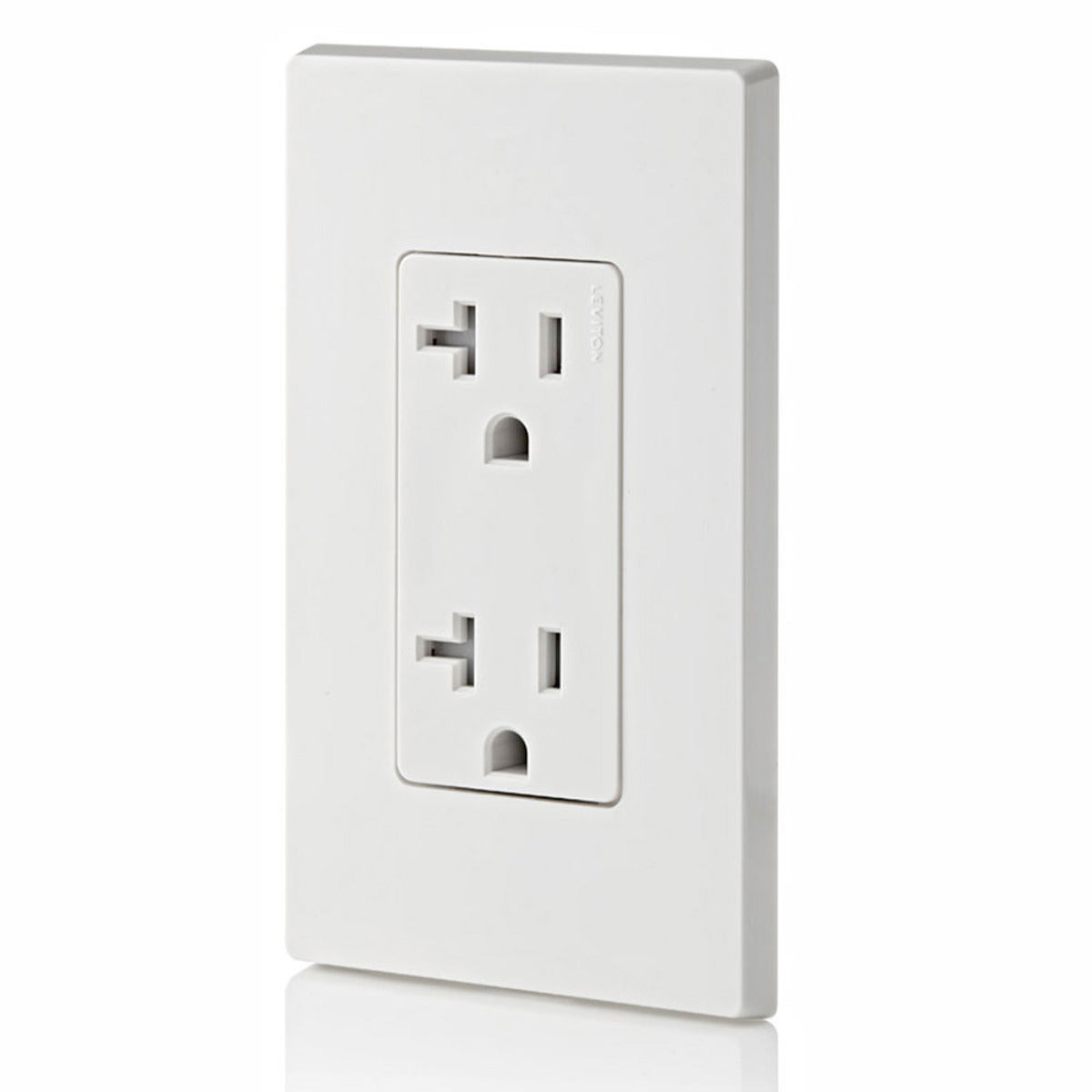

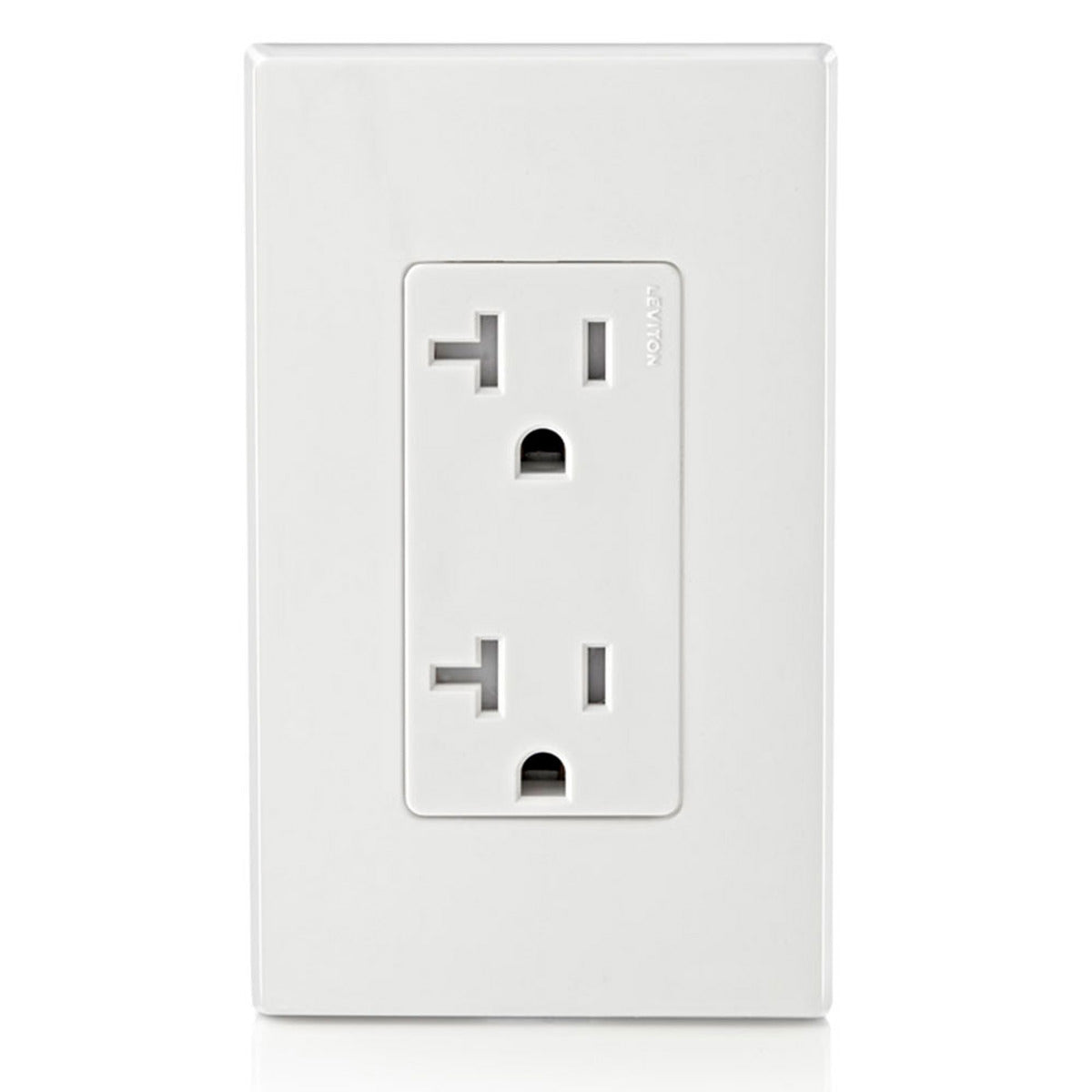

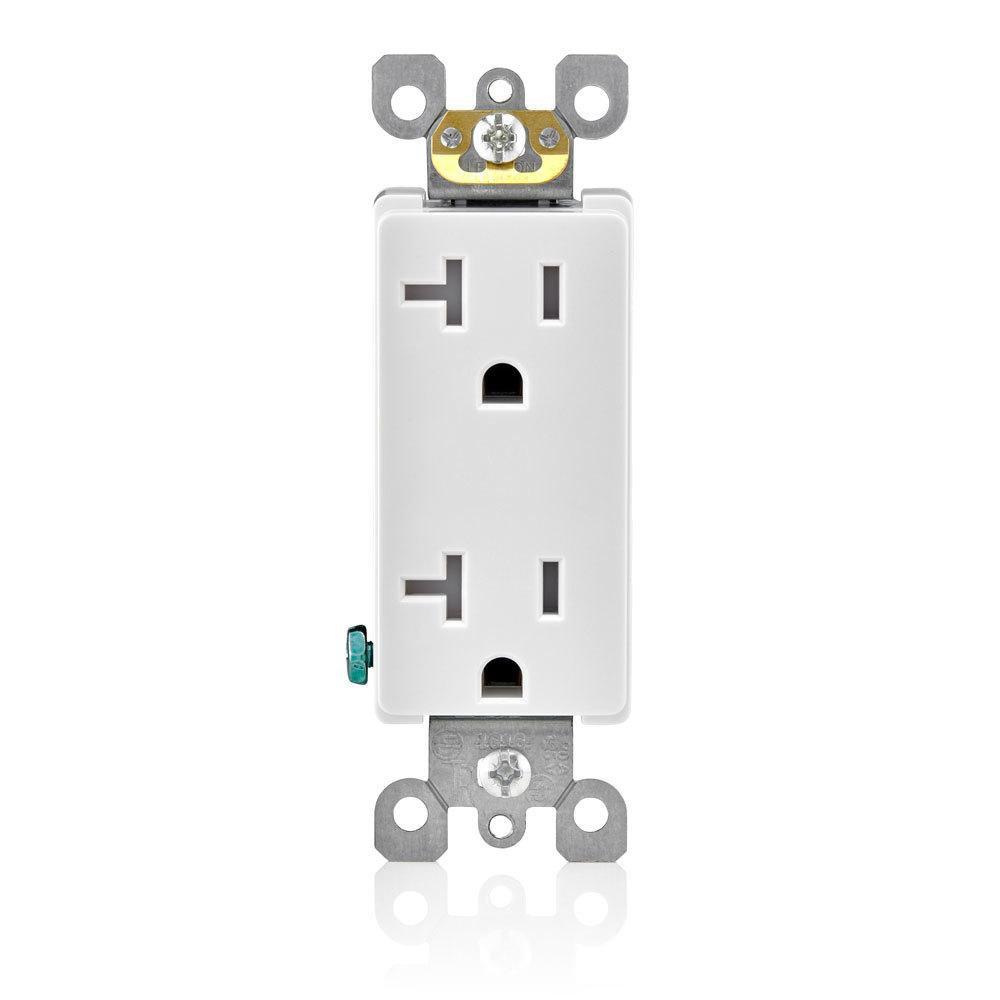

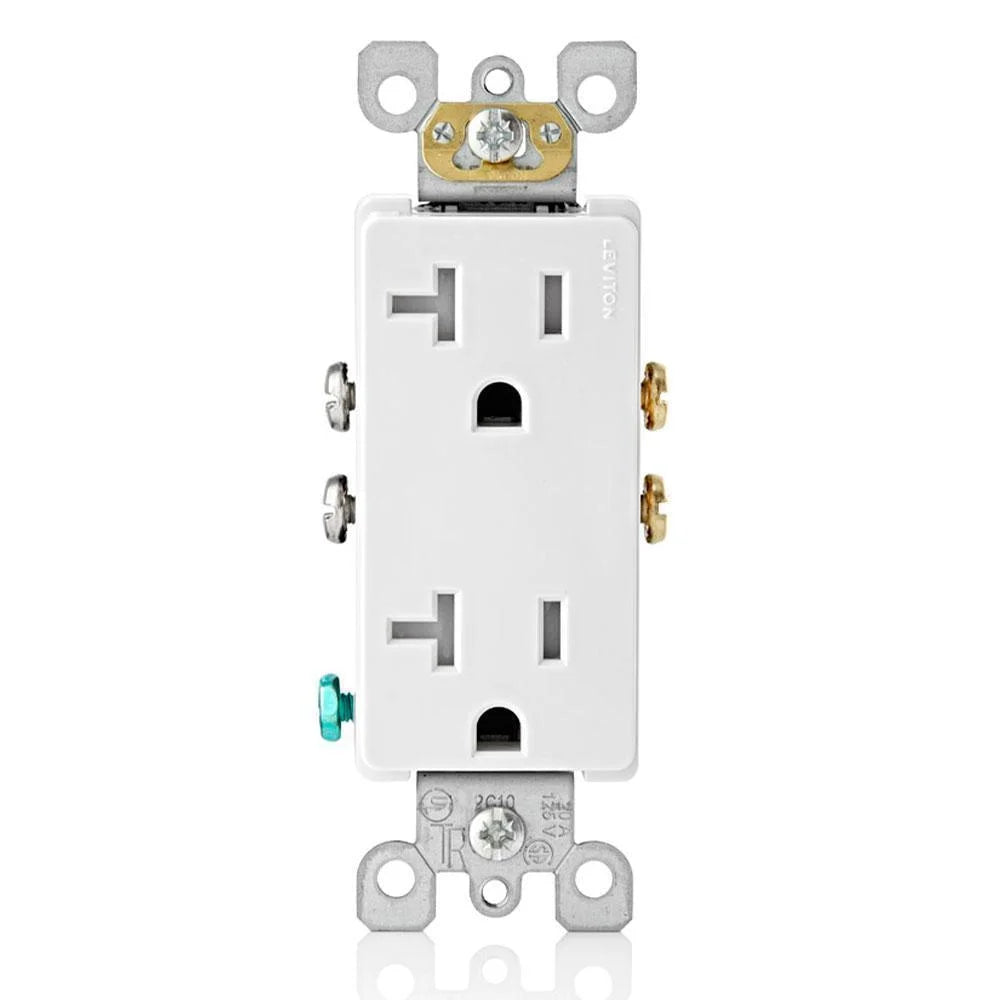

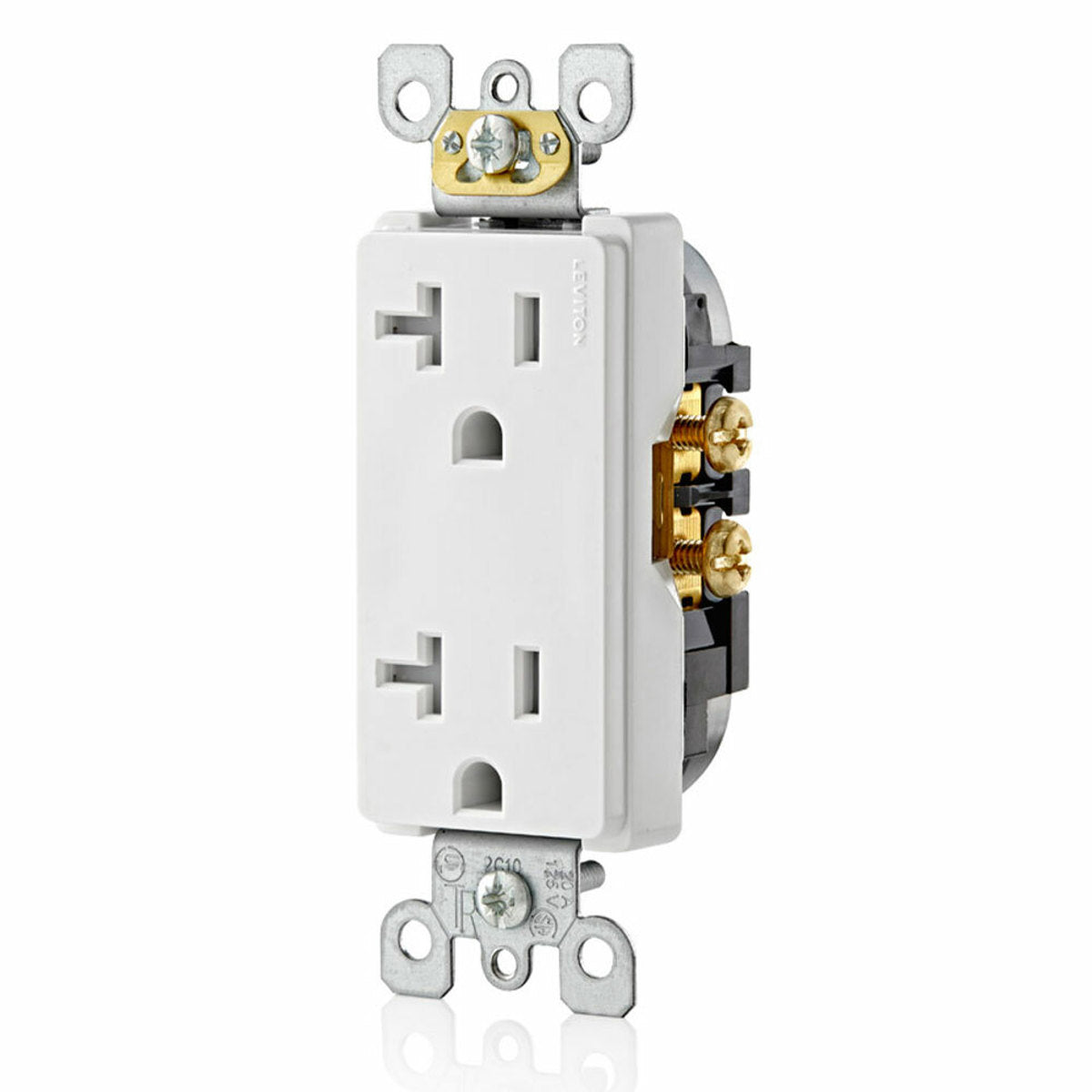

Leviton T5825-W Decora Duplex Receptacle 20 Amp

Product Description

The Leviton T5825-W is a Decora duplex receptacle designed for a chic appearance and durability. Its impact-resistant thermoplastic design ensures a long service life in various settings. This receptacle is ultrasonically welded and meets 2008 NEC requirements.

• Terminal screws accept up to #12 AWG copper or copper clad wire
• Features double wipe power contacts for reliable conductivity and plug retention
• Heavy gauge zinc plated steel mounting strap

Product Highlights

This tamper-resistant receptacle is suitable for homes, offices, and schools. It offers a shutter mechanism to block access to contacts, enhancing safety.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: T5825-W
• Country of Origin: CN

Technical Specifications

• UNSPSC Code: 39121400
• Type: 1-Phase Duplex Self-Grounding Tamper-Resistant Ultrasonically Welded
• Material: Thermoplastic
• Standard: NOM;CSA Certified (File 152105);UL (Listed)
• Connection: Quickwire Push-In and Side Wired
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Country of Origin: CN
• Environmental Conditions: Flammability (Rated V-2 per UL94)
• Grade: Commercial
• Temperature Rating: -40 to 60 deg C
• Terminal Type: Quickwire/Push-In/Side Wired
• NEMA Rating: NEMA 5-20R
• Wire Size: 14 AWG
• Application: Commercial
