Product Description

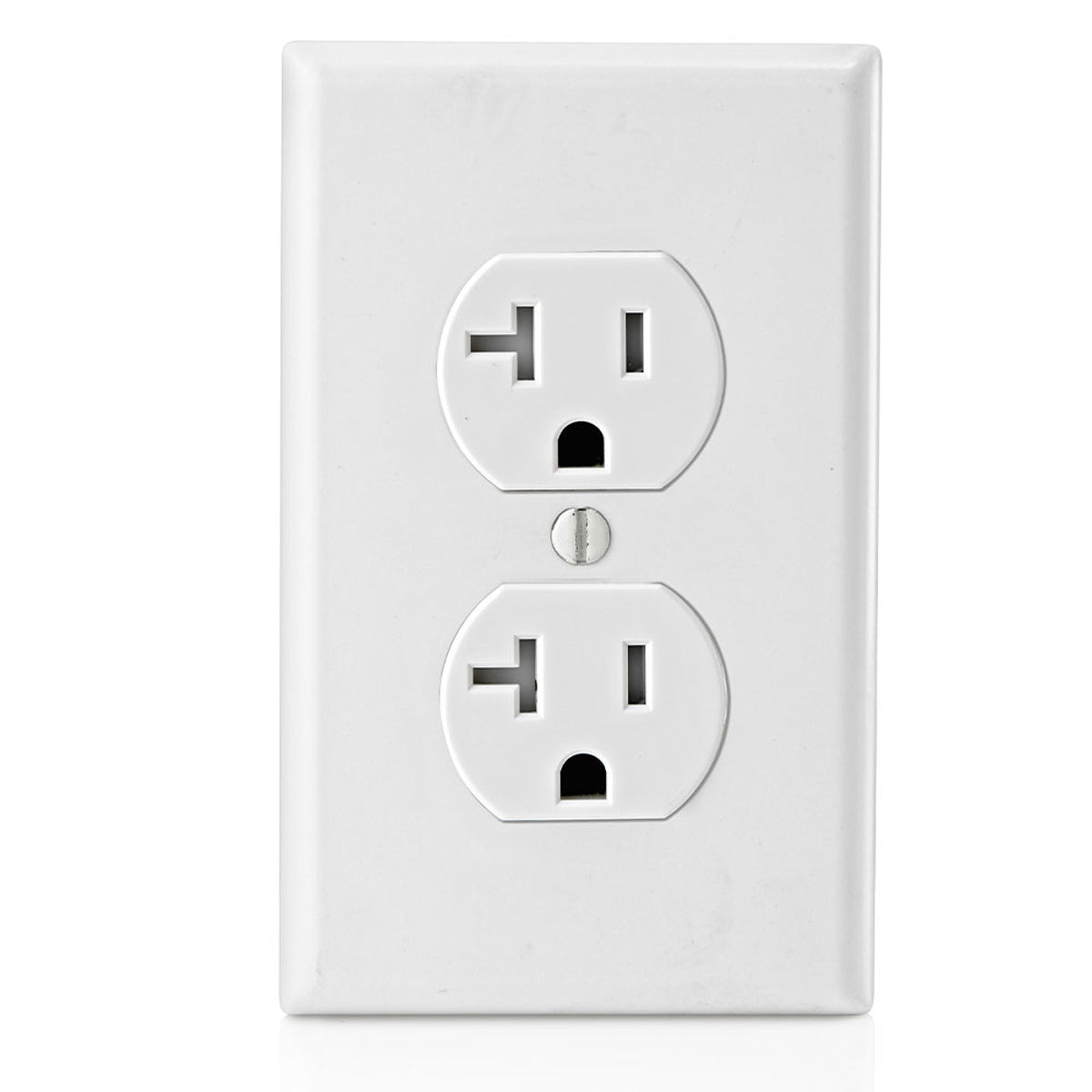

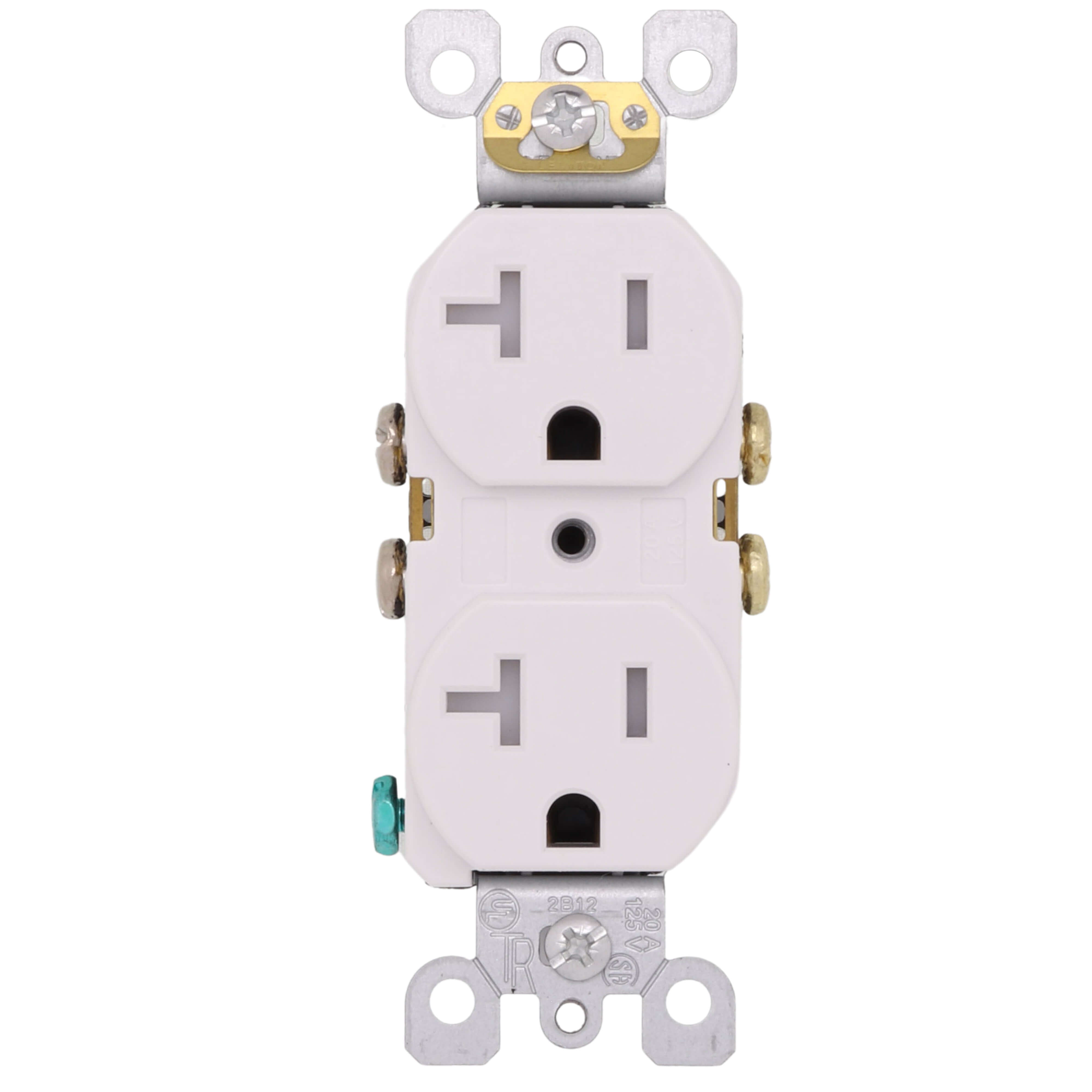

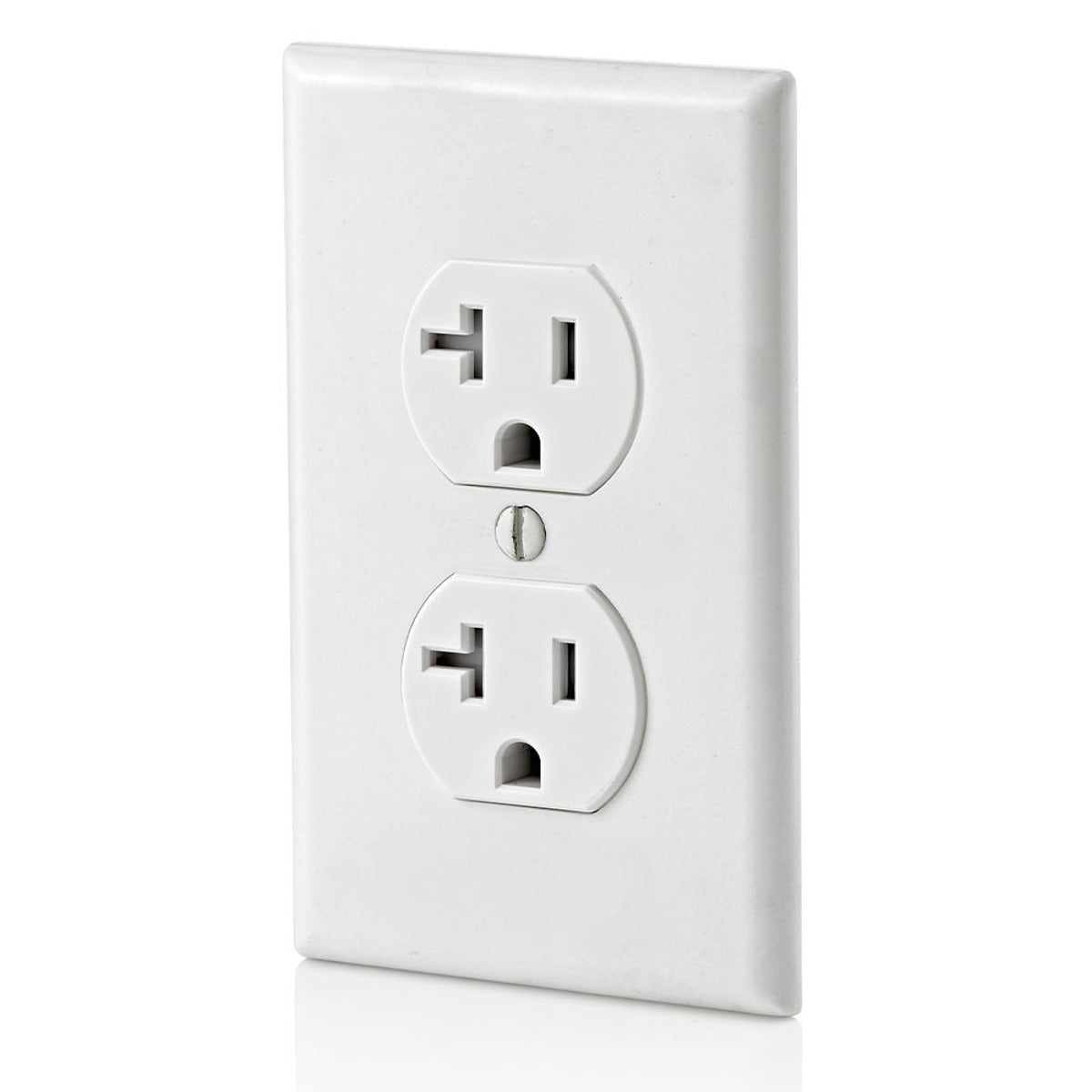

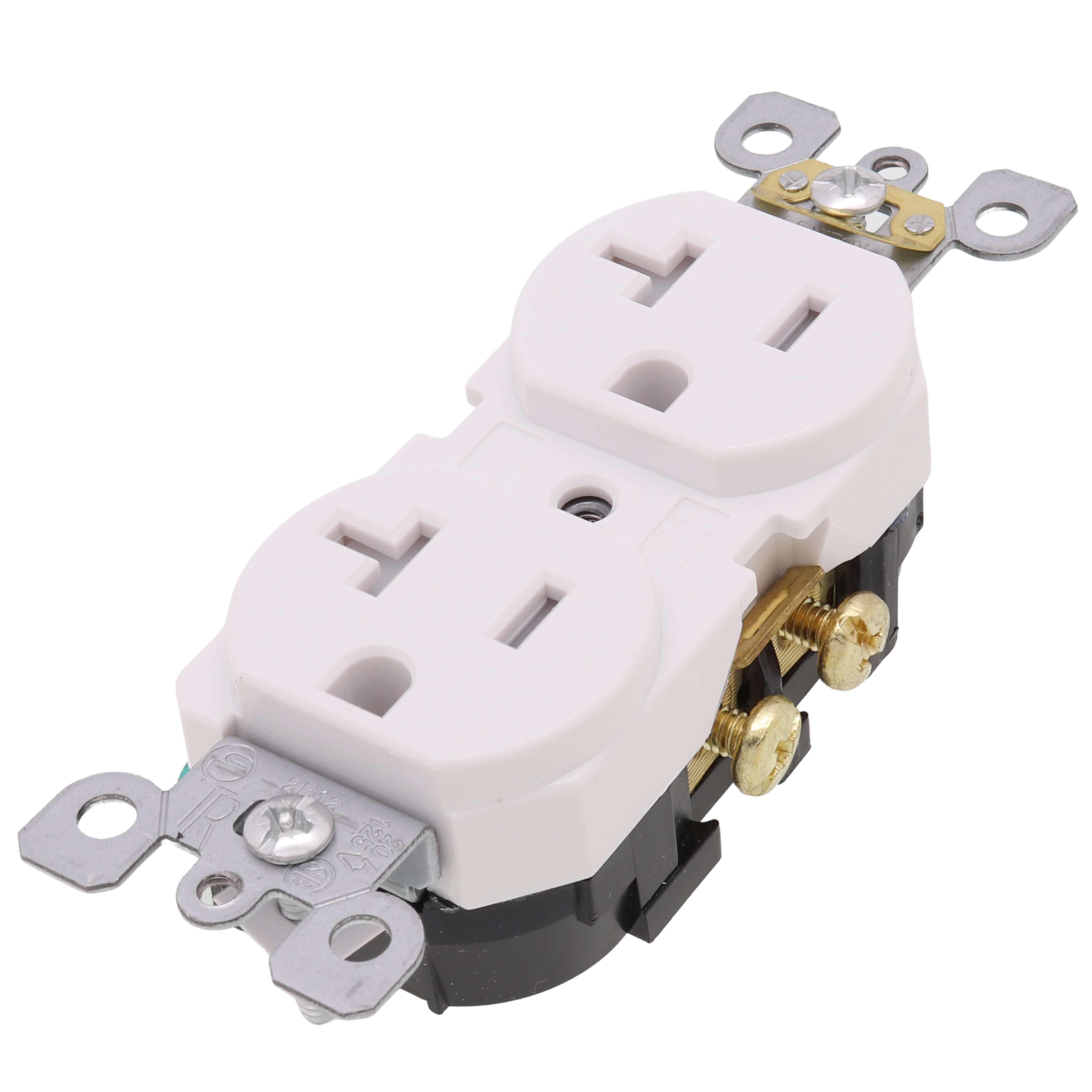

The Leviton T5820-W is a 20 Amp Tamper-Resistant Duplex Outlet designed for residential and commercial use. Constructed with impact-resistant thermoplastic nylon, this receptacle offers durability and a long service life. It is suitable for homes, offices, schools, and other settings. Side wiring allows for easy installation.
- 20 Amp, 125 VAC
- Tamper-resistant design
- Constructed with thermoplastic nylon
Product Highlights
This duplex outlet provides a safe and durable solution for residential and commercial applications, featuring tamper resistance and easy installation.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: T5820-W
-
Country of Origin: China
Technical Specifications
-
Amperage Rating: 20 A
-
Voltage Rating: 125 VAC
-
Type: Duplex Tamper Resistant
-
Color: White
-
Material: Thermoplastic Nylon
-
Number of Poles: 2
-
Number of Wires: 3
-
Grade: Commercial
-
NEMA Rating: NEMA 5-20R
-
Terminal Type: Side Wire
-
Temperature Rating: -40 to 60 deg C
-
Standard: UL, CSA, NOM
-
Connection: Screw terminal
-
Environmental Conditions: Dry Location
-
Blade Type: Straight Blade
-
Grounding: Self Grounding
-
Application: Commercial Applications
-

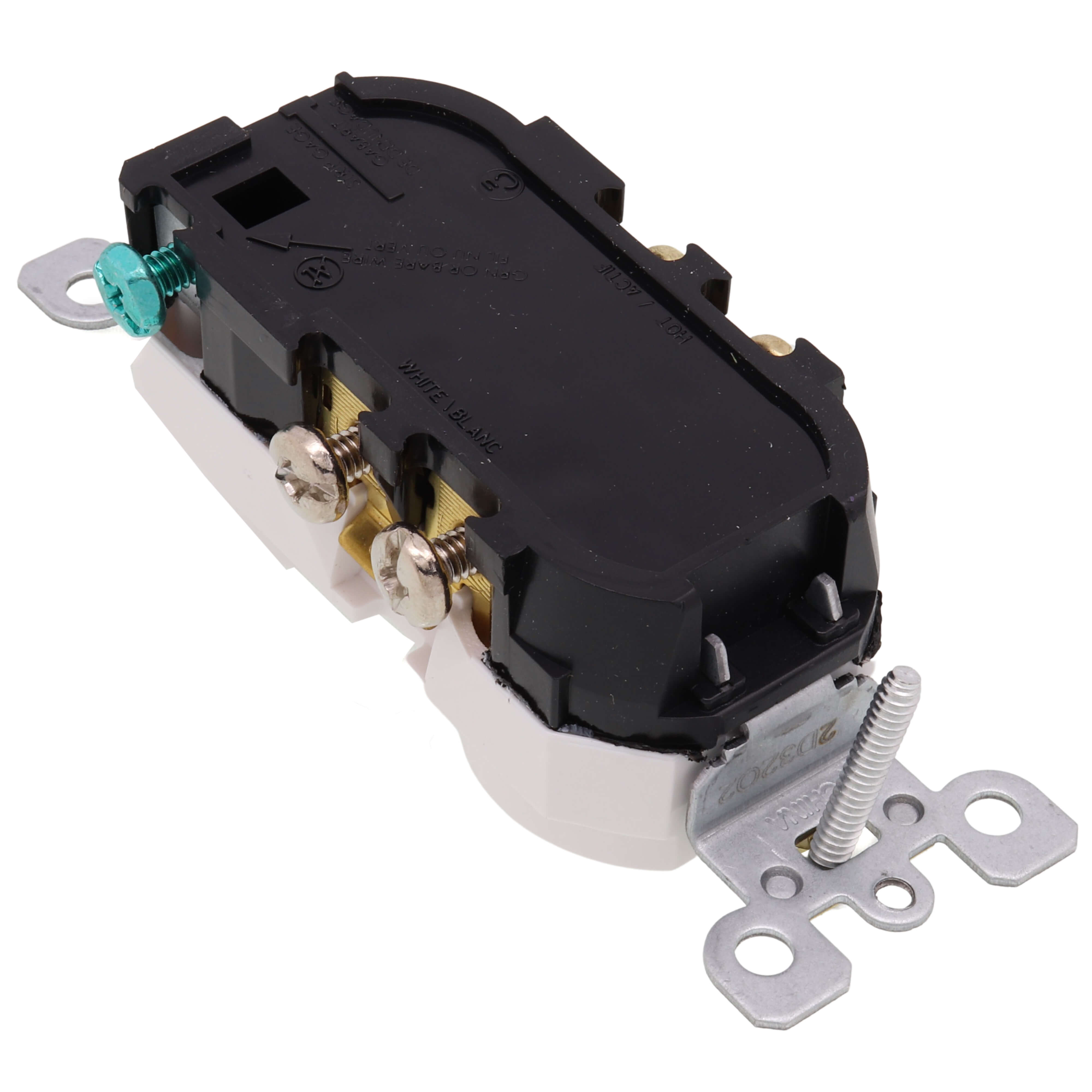

Terminal Accom.: Side wiring accepts #10 and #12 AWG copper (CU) or #10 copper clad (CC) wire
-
Torque Range: 14 - 18 in.-lbs
-
Operating Temperature: -40
C to 60
C
-
Certifications: UL, CSA, NOM
-
Wiring: Push-In, Side
-
Configuration: 5-20R
-
Constructional Feature: Tamper Resistant
-
Ground Type: Grounding
-
Poles: 2
-
Wires: 3
-
Feature: Tamper-Resistant
-
Termination: Side
-
Body Material: Thermoplastic Nylon
-
Face Material: Thermoplastic Nylon
-
Device Type: Duplex Receptacle
-
Product Type: Standard
-
Phase: Single
-
Polarized: Yes
-
Mount Type: Flush
-
Receptacle Type: Duplex
-
Housing Color: White
-
Current Rating: 20 A
-
Number of Outlets: 2
-
Wire Connection Type: Screw Terminals
-
Resistance Properties: Tamper Resistant
-
Connection Orientation: Straight
-
Number of Poles & Wires: 2 Pole / 3 Wire
-
Key Resistance Properties: Tamper Resistant
-
Includes Mounting Hardware: Yes
-
Amps - Plugs and Receptacles: 20 A
-
Item - Plugs and Receptacles: Duplex Receptacle Outlet
-
Color - Plugs and Receptacles: White
-
NEMA Receptacle Configuration: 5-20R
-
Voltage - Plugs and Receptacles: 125VAC
-
Additional Electrical Protection: Standard Protection
-
Additional Electrical Protections: Standard Protection
-
Outlet Type - Plugs and Receptacles: Duplex
-
Wiring Method - Plugs and Receptacles: Side
-
Tamper-Resistant: Tamper-Resistant
-
Finish: Matte
