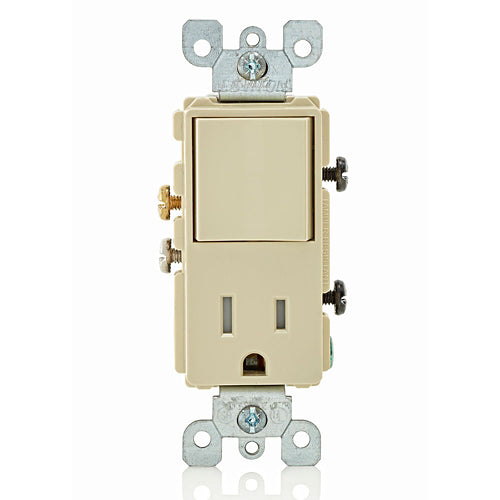

Leviton T5625-I Decora Switch TR Rcpt Cmbo 15A

Product Description

The Leviton T5625-I Decora Combination Receptacle Switch is tamper-resistant. Part of the 5625 series, it has electrical ratings of 12/15 A and 120/125 VAC at 60 Hz. This single-pole switch features a rocker actuator and a NEMA 5-15R enclosure for surface mounting. Constructed from thermoplastic in ivory.

• Shutter mechanism blocks access unless a 2 or 3-prong plug is inserted.
• TR symbol meets NEC® requirements.
• Heavy-duty construction offers long service life.

Product Highlights

The Leviton Decora Combination Switch is ideal for residential, commercial, hospital, and industrial applications. It is UL and CSA certified.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: T5625-I
• Country of Origin: Mexico

Technical Specifications

• Actuator: Rocker
• Application: Residential, Commercial, Hospital and Industrial Applications
• Electrical Ratings: 12/15 A, 120/125 VAC
• Enclosure: NEMA 5-15R
• Frequency Rating: 60 Hz
• Manufacturer Part Number: T5625-I
• Material: Thermoplastic
• Mounting: Surface
• Number of Poles: 1
• Series: 5625
• Standards/Approvals: UL E7458|CSA LR3413|CSA 152105|cCSAus 152105|NOM 057|NEC Certified
• Type: Tamper-Resistant
• Interface: Side Wired
• Grounding: Grounding
• Voltage: 120 VAC
• Amperage: 15 A
• HP Rating: 1-1/2HP-120V
• Termination: Side
• Body Material: Thermoplastic
• Actuator Material: Thermoplastic
• Standards and Certifications: UL/CSA
• NEMA Configuration: 5-15R
• Volts AC: 120
• Amps: 15
• Poles: 1
