Leviton T5325-W 15A Tamper-resistant Decora Duplex Receptacle

Product Description

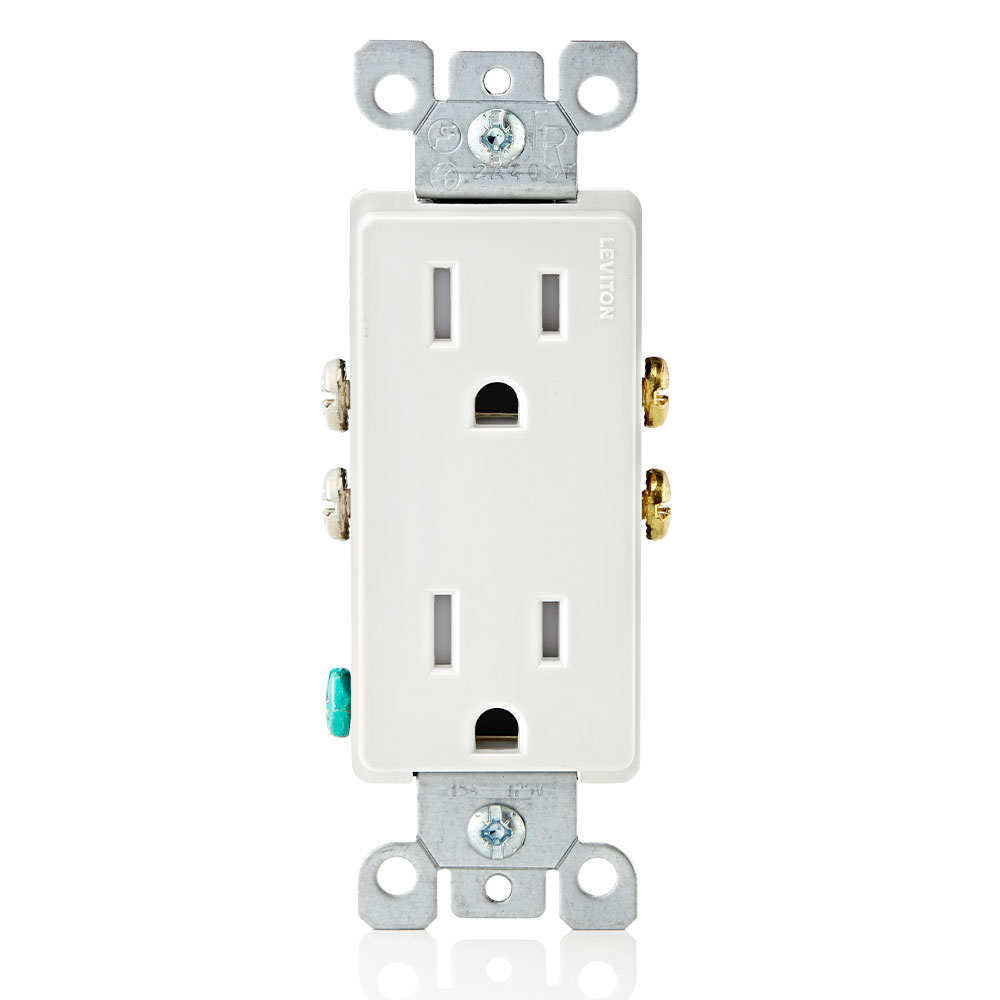

The LEVITON T5325-W is a 15 amp, 125 volt tamper-resistant Decora-style duplex receptacle designed for residential and light commercial electrical installations. Rated NEMA 5-15R, it features a 2-pole, 3-wire grounding configuration with straight blade contacts. The built-in tamper-resistant shutters block foreign object insertion into the slots, meeting NEC requirements for TR outlets in dwelling units. Quickwire push-in terminals and side-wiring options are both supported, giving electricians flexibility during rough-in and finish work. The white finish coordinates with standard Decora wallplates. UL and CSA listed.

This receptacle is suited for new construction and renovation projects in residential settings including bedrooms, living areas, kitchens, and bathrooms where NEC tamper-resistant requirements apply. It also fits light commercial applications such as offices and schools where code mandates TR-rated devices. The Decora form factor is compatible with standard decorator-style wallplates and gang boxes. Licensed electricians and qualified contractors are the primary installers for this device.

Key Features

• Tamper-resistant shutters meet NEC requirements for dwelling unit receptacles
• NEMA 5-15R rating: 15 amps at 125 volts, 2-pole, 3-wire grounding
• Quickwire push-in side terminals plus screw-side wiring for installation flexibility
• Straight blade contact design for standard 15A plug compatibility
• UL and CSA listed; NEC compliant
• 2-year limited warranty

Compatibility

Designed as an OEM-style replacement or new-installation device compatible with standard single-gang and multi-gang electrical boxes using the Decora form factor and standard decorator-style wallplates.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the NEC and applicable local electrical codes. De-energize the circuit at the breaker panel and verify the absence of voltage with a meter before wiring. The device supports both push-in and screw-terminal connections; follow NEC guidelines on conductor gauge and termination method for the circuit ampacity. Avoid backwiring aluminum conductors into push-in terminals.

Technical Specifications

• Amperage: 15 amps
• Voltage: 125 volts
• NEMA Configuration: 5-15R
• Poles: 2
• Wires: 3
• Blade Type: Straight blade
• Tamper-Resistant: Yes
• Wiring Method: Quickwire push-in side and screw terminal
• Color: White
• Certifications: UL, CSA
• Warranty: 2-year limited
• UPC: 078477381625

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: T5325-W
