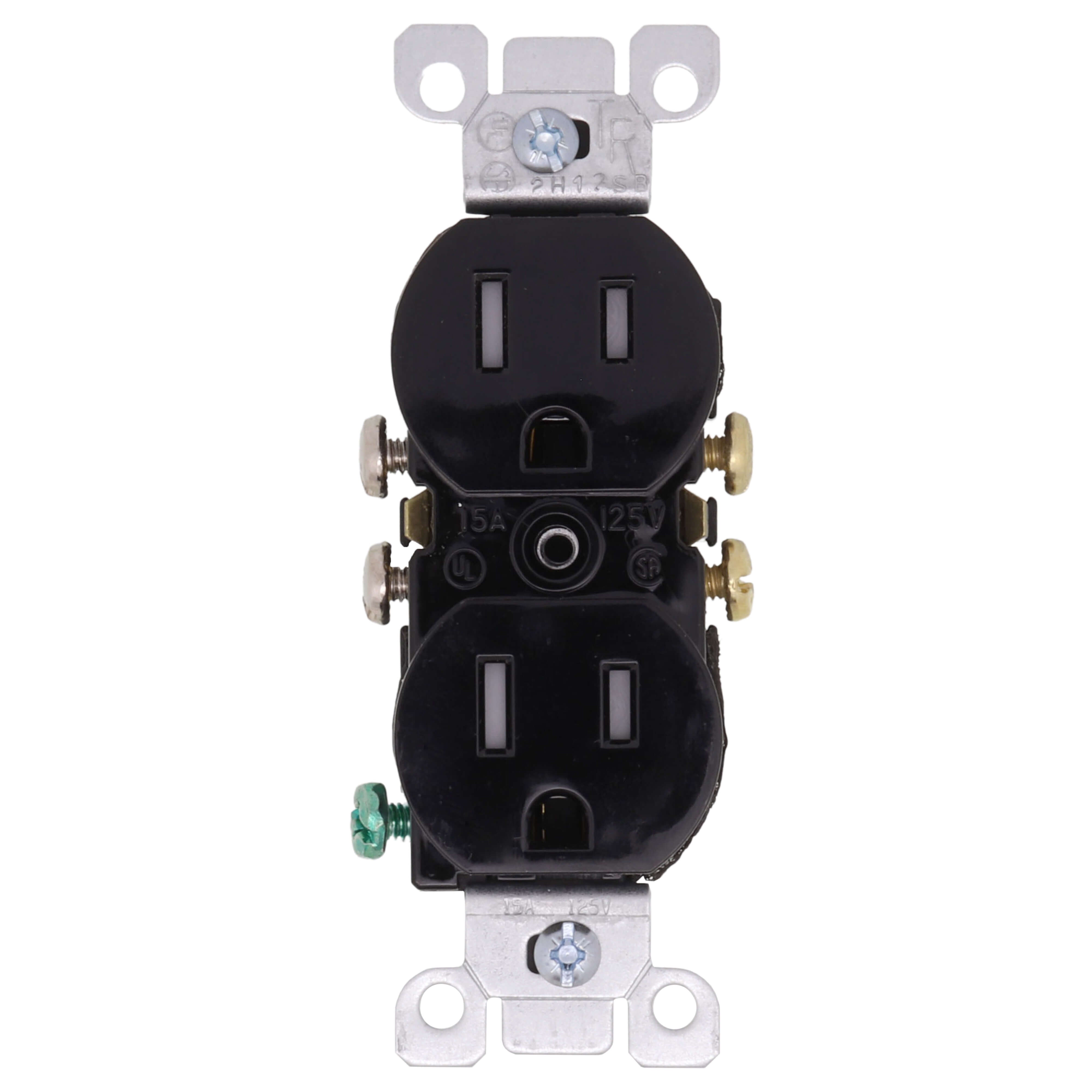

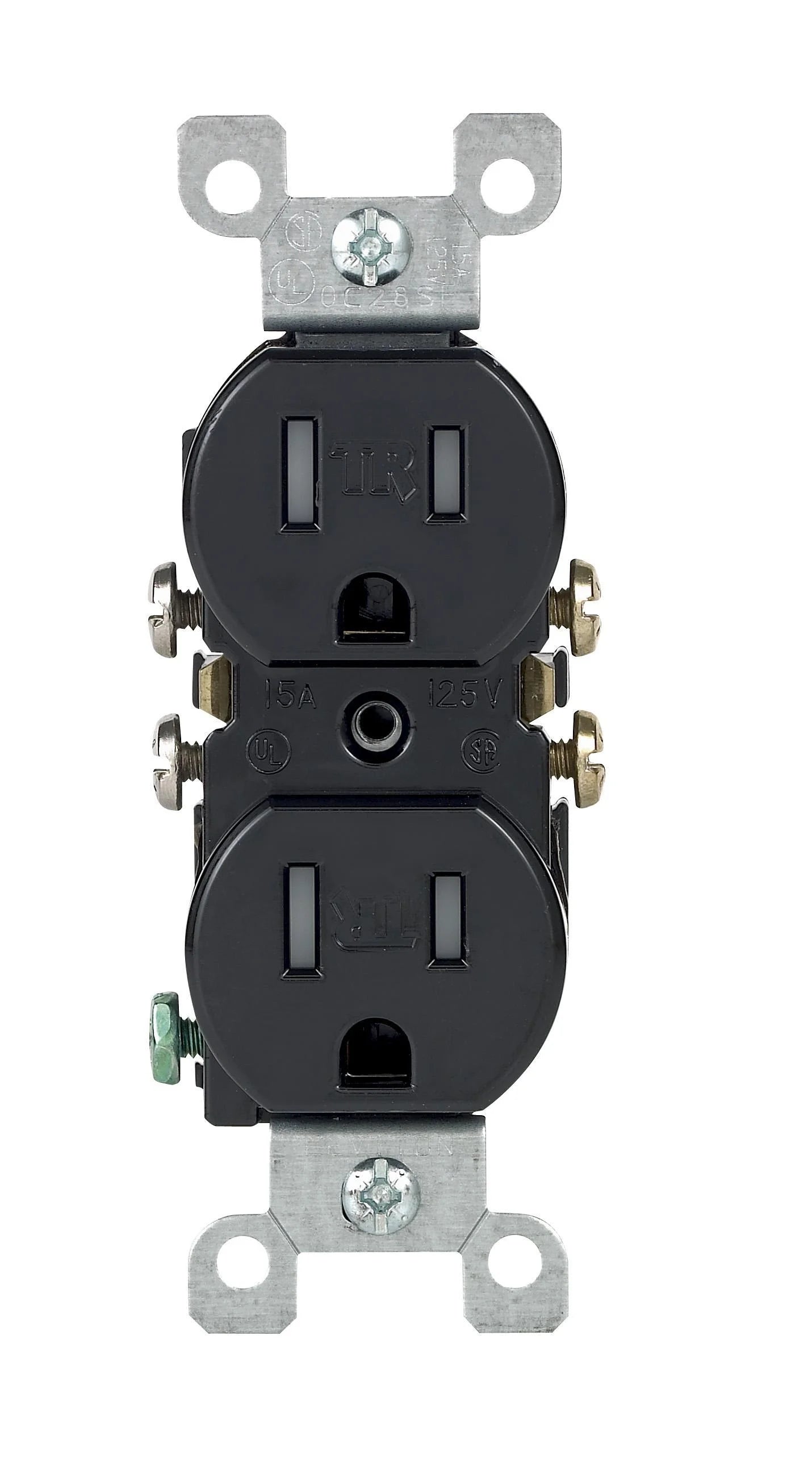

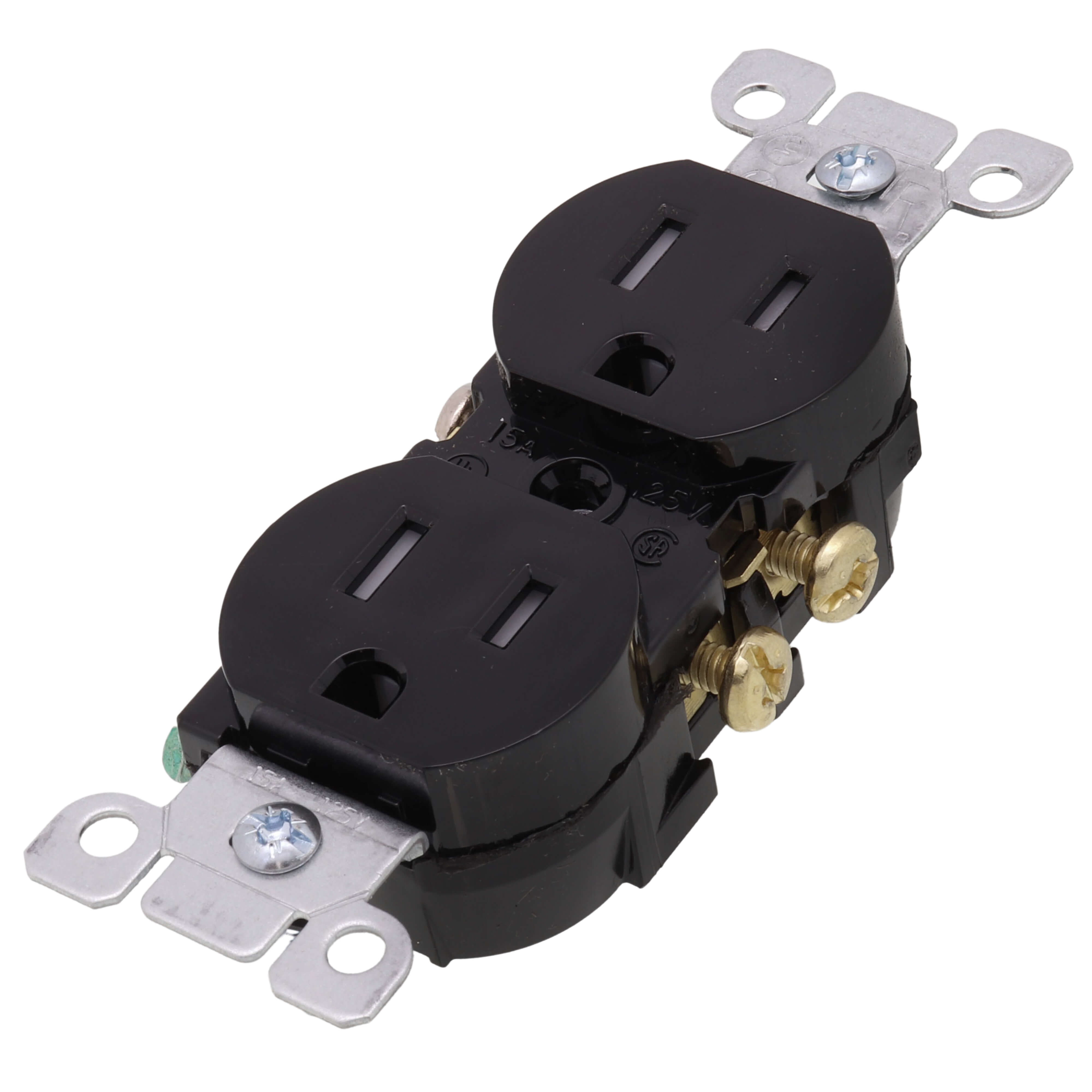

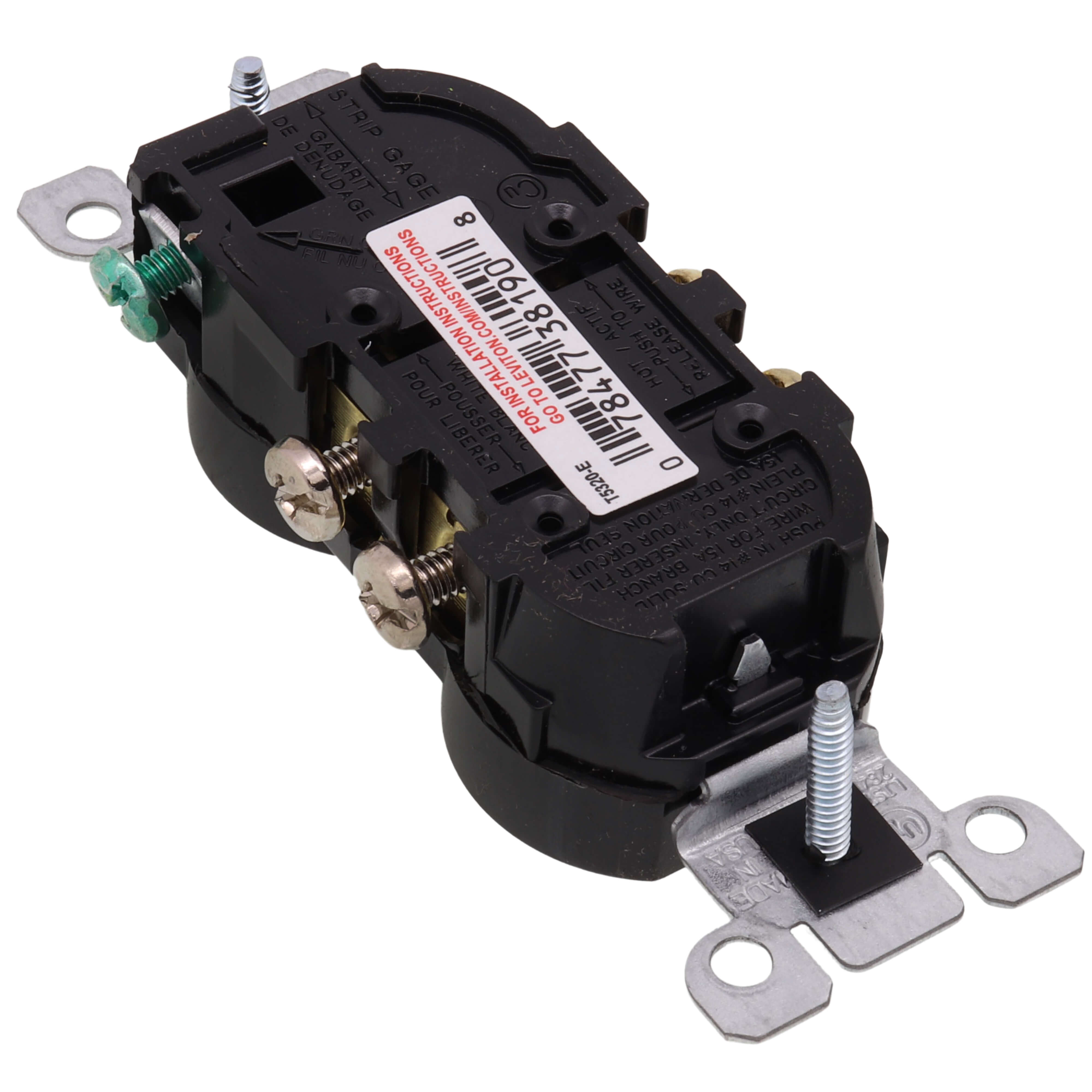

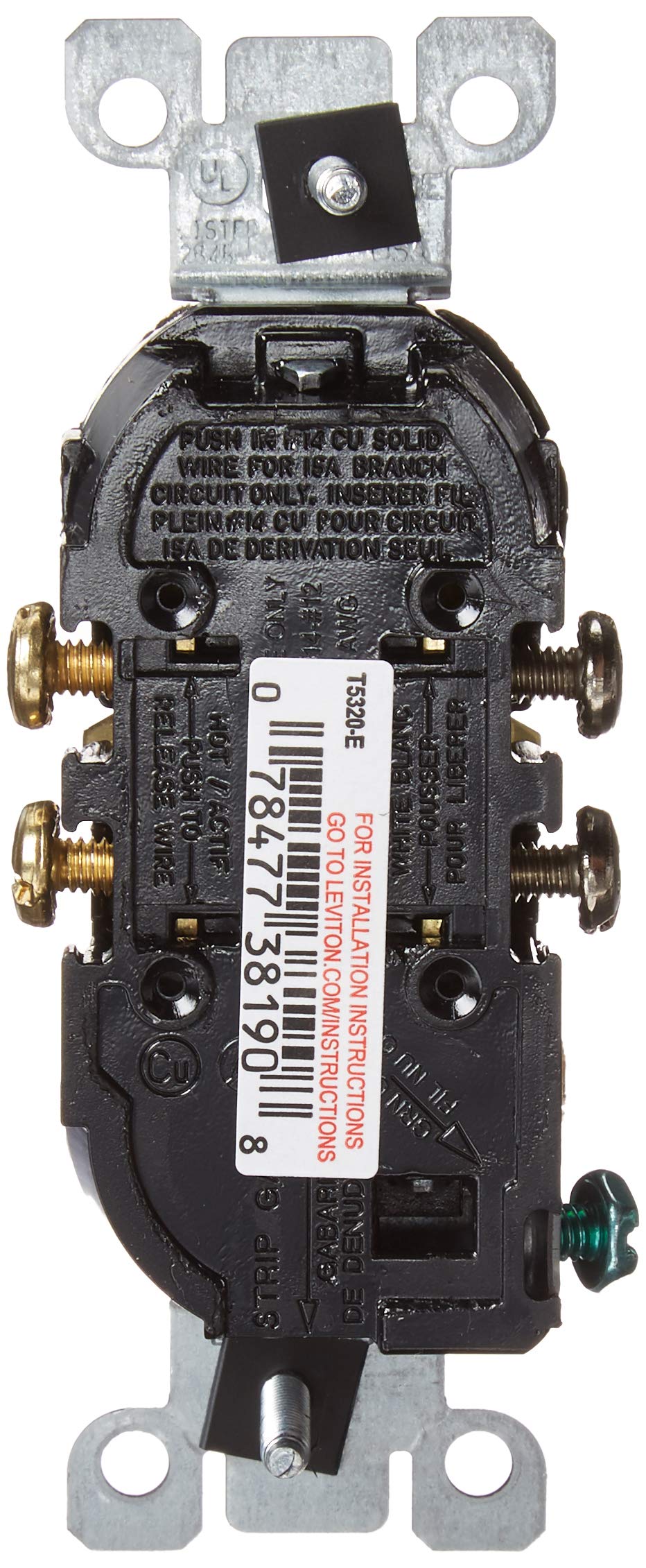

Leviton T5320-E Receptacle 15A 125VAC

Product Description

The Leviton T5320-E is a straight blade receptacle, designed for a chic appearance, quick installation and durability. Rated at 15A and 125VAC, this duplex grounding standard tamper-resistant receptacle features a thermoplastic design for long service life in homes, offices, schools and other settings. It is a 2-pole, 3-wire device with NEMA 5-15R NEMA rating.

• Shutter mechanism blocks access to contacts unless a 2 or 3-prong plug is inserted.
• Features break-off tabs for easy two-circuit conversion.
• Constructed with heavy-duty materials for long, trouble-free service life.

Product Highlights

The Leviton receptacle is ideal for residential applications. It offers tamper resistance and easy installation.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: T5320-E
• Country of Origin: USA

Technical Specifications

• Type: Duplex Grounding Standard Tamper-Resistant
• Grade: Residential
• Material: Thermoplastic
• NEMA Rating: NEMA 5-15R
• Manufacturer: LEVITON
• Terminal Type: Quick-Wire Push-In/Side Wire
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Mounting Type: Screw, Flush
• Standard: CSA,UL
• Grounding: Grounding
• Termination Type: Quickwire Push-In,Slide Wire
• Country of Origin: USA
• Application: Residential, Schools, Libraries, Childcare, Healthcare Facilities, Guest Rooms, Guest Suites, New or Renovated Single and Multi-Family Housing
• Compatibility: Straight Blade Device
