Leviton T5020-GY Receptacle 20 Amp, 125 Volt

Product Description

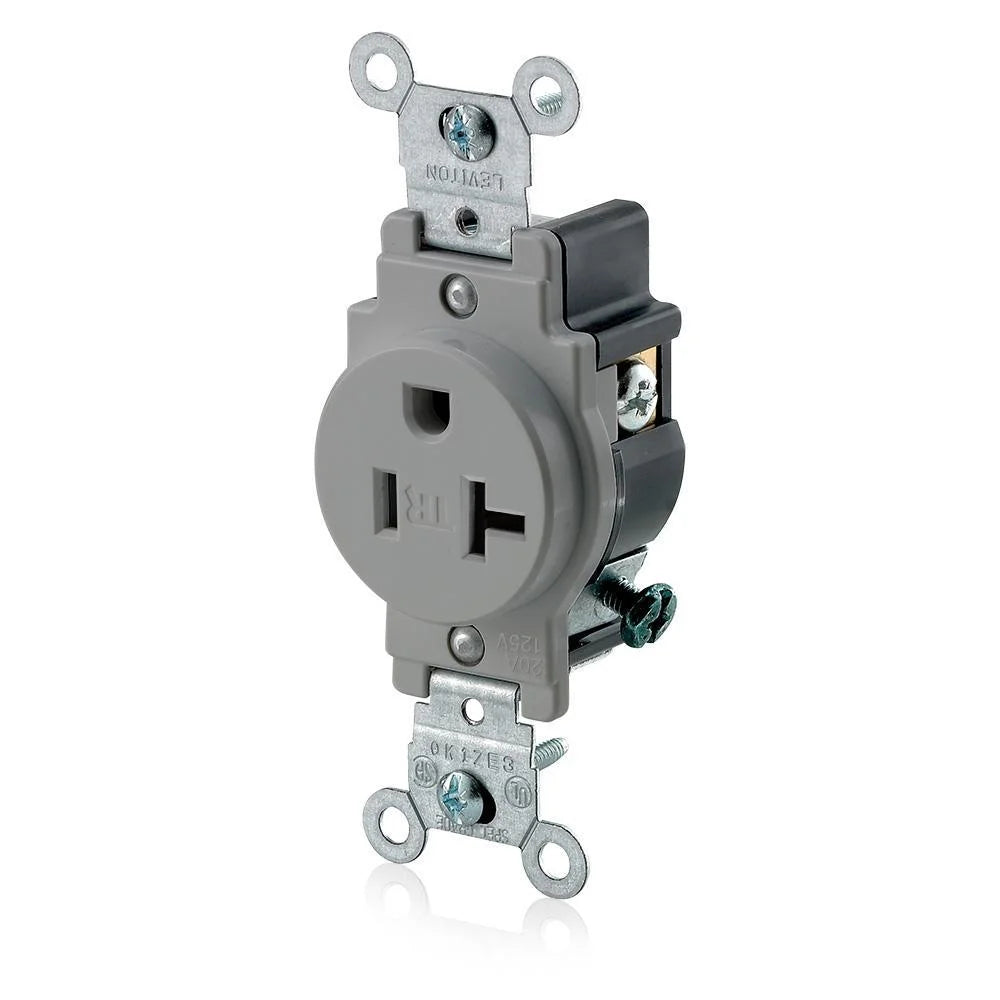

The LEVITON T5020-GY is a 20 Amp, 125 Volt, NEMA 5-20R, narrow body single receptacle with a straight blade. This tamper-resistant, commercial-grade receptacle is grounding and features back and side wiring with a steel strap. It is suitable for commercial applications.

• Tamper-Resistant
• Self-Grounding
• Straight Blade

Product Highlights

This receptacle features a narrow body, straight blade, and is tamper-resistant for safety.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: T5020-GY
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: T5020-GY
• Manufacturer: Leviton
• Brand: Leviton
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 20 A
• Application: Commercial
• Special Features: Tamper-Resistant
• Standard: UL498
• UPC: 078477760949
• GTIN: 00078477760949
• Item Type: Receptacle
• Voltage Rating: 125 VAC
• Poles: 2
• Wires: 3
• NEMA Rating: 5-20R
• Grade: Commercial Grade
• Temperature: -40 to 60 deg C
• Terminal: Back/Side Wire Terminal
• Horsepower: 1 hp
• Material: Thermoplastic Nylon
• Terminal Type: Back/Side Wire
• Type: Self-Grounding Single Smooth Face Standard Tamper-Resistant
• Operating Temperature: -40 C to 60 C
• Dielectric Voltage: Withstands 2000V per UL498
• Pole: 2
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Wire: 3
• Body Material: Thermoplastic Nylon
• Clamp Nuts: Zinc-Plated Steel
• Face Material: Thermoplastic Nylon
• Ground Clips: Brass-Plated
• Grounding Screw: Brass 8-32
• Line Contacts: Brass Triple-Wipe
• Strap Material: Zinc-Plated Steel
• Terminal Screws: Brass 10-32
• Product ID: Ratings are permanently marked on device
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Back and Side Wire
• Device Type: Single Receptacle Outlet
• Feature: Tamper-Resistant,Smooth Face
• NEMA: WD-6
• ANSI: C-73
• CSA C22.2 No. 42: File 152105
• NOM: 057
• UL498: File E13399
