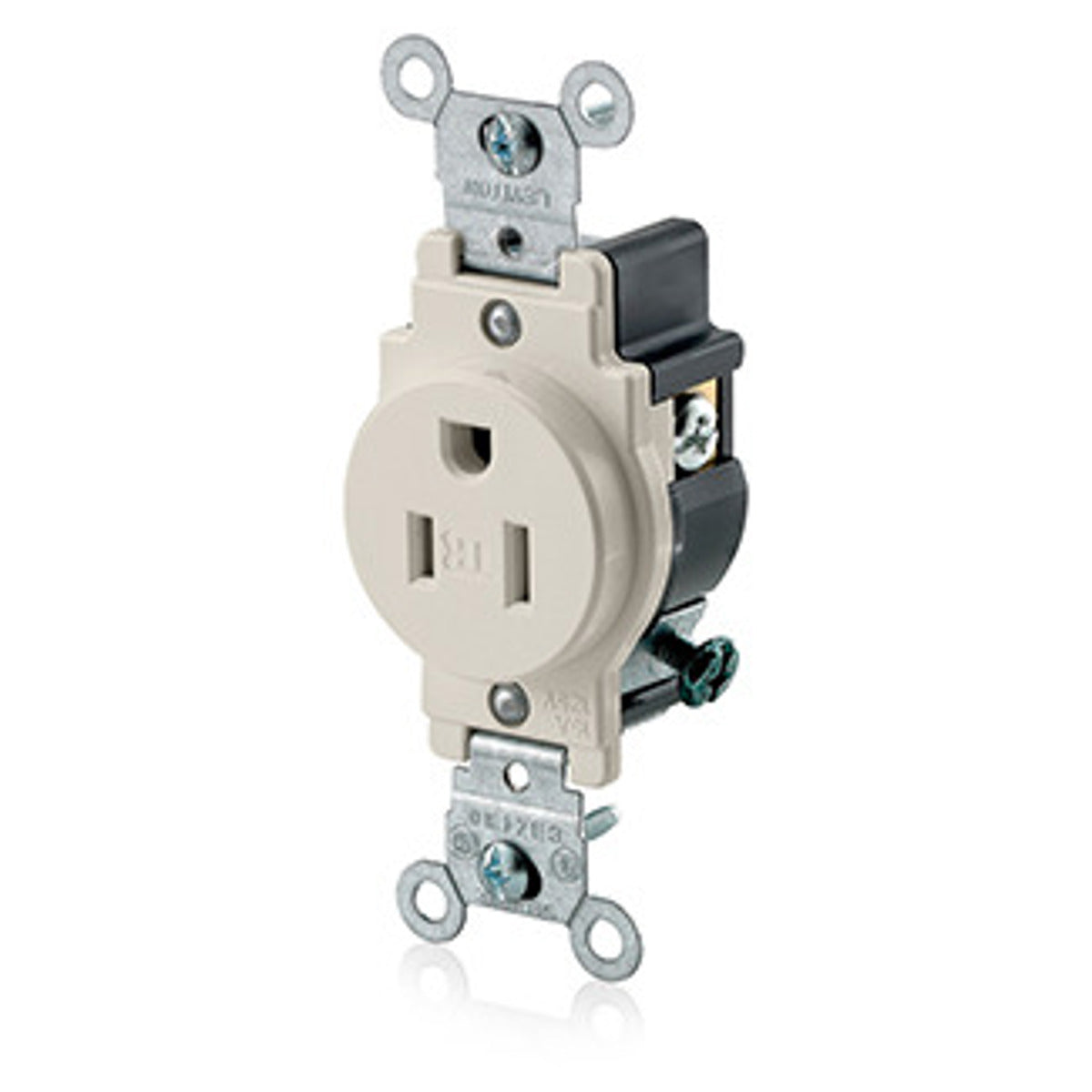

Leviton T5015-T Receptacle 125 VAC 15 A 1/2 hp

Brand: LEVITON
SKU: T5015-T
Availability: In Stock

Ships same day if ordered by 12 pm

$23.68
$23.68
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Leviton T5015-T is a straight blade receptacle, 1-phase grounding single tamper resistant, with a voltage of 125 VAC and a current of 15 A. This commercial grade receptacle is made of thermoplastic and is suitable for commercial and institutional applications. Dimensions are 46 in H x 1.31 in W x 16 in D.

  • Manufactured to withstand the demands of commercial and institutional applications
  • Thermoplastic nylon face
  • #8-32 brass grounding screws

Product Highlights

Leviton commercial receptacles provide long lasting service life and are a cost saving alternative to the industrial devices.

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: T5015-T
  • Country of Origin: Mexico
Technical Specifications
Type
1-Phase Grounding Single Tamper Resistant
Grade
Commercial
Material
Thermoplastic
Horsepower
1/2 hp
NEMA Rating
5-15R
Manufacturer
LEVITON
Terminal Type
Side Wire
Voltage Rating
125 VAC
Amperage Rating
15 A
Number of Poles
2
Number of Wires
3
Temperature Rating
-40 to 60 deg C
NEMA
WD-6
Standard
NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)
Country of Origin
Mexico
Application
Commercial
Mounting
Wall
Phase
1
Wire Size
14-10 AWG
Dielectric Strength
2000 V Minimum
Operating Temperature
-40 degrees C
Environmental Conditions
Flammability (Rated V-2 Per UL94)
AC Horsepower Ratings At Rated Voltage
1/2 HP
Current Limiting
Full Rated Current
Dielectric Voltage
Withstands 2000V per UL498
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Body Material
Thermoplastic Nylon
Clamp Nuts
Zinc-Plated Steel
Face Material
Thermoplastic Nylon
Ground Clips
Brass-Plated
Grounding Screw
Brass 8-32
Line Contacts
Brass Triple-Wipe
Strap Material
Zinc-Plated Steel
Terminal Screws
Brass 10-32
Product ID
Ratings are permanently marked on device
Terminal Accom.
14-10 AWG
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Termination
Side Wire
Device Type
Single Receptacle Outlet
Feature
Tamper-Resistant,Smooth Face
ANSI
C-73
CSA C22.2 No. 42
File 152105
NOM
057
UL498
File E13399
