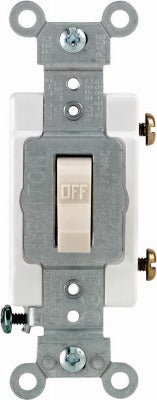

Leviton S06-CS115-2TS 15A Single Pole Toggle Switch 10 Pack

Product Description

The LEVITON MFG CO S06-CS115-2TS is a single pole toggle switch rated at 15 amps, designed for controlling one lighting fixture or load from a single location. Built to commercial specification grade, this switch is intended for demanding installations where long service life and reliable performance are required. Key construction features include large silver-cadmium oxide contacts for extended contact life, captive mounting screws that speed up installation, and large-head terminal screws backed out and staked to allow fast side wiring with copper wire up to No. 10 gauge. This package contains 10 switches per unit.

This switch is engineered for commercial and institutional applications. Typical installation environments include municipal facilities, government buildings, hospitals, schools, office buildings, malls, and department stores. The heavy-gauge rust-resistant steel mounting strap and break-off plaster ears allow for precise alignment in standard single-gang wall boxes. Licensed electricians and commercial electrical contractors are the primary installers for this product in new construction and retrofit projects.

Key Features

• Commercial specification grade construction for high-demand environments
• Large silver-cadmium oxide contacts for long contact life
• Captive mounting screws for fast, secure installation
• Large-head terminal screws backed out and staked for side wiring up to No. 10 copper wire
• Heavy-gauge rust-resistant steel mounting strap with break-off plaster ears for best alignment
• UL listed for safety compliance
• Limited 10-year warranty

Compatibility

Designed as a commercial specification grade single pole toggle switch for standard single-gang electrical boxes in commercial and institutional wiring applications.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Always shut off circuit breaker power to the circuit before beginning any wiring work and verify the circuit is de-energized with a voltage tester before making connections. Side wiring supports copper conductors up to No. 10 gauge using the large-head terminal screws. Do not exceed the 15-amp rating of this device.
