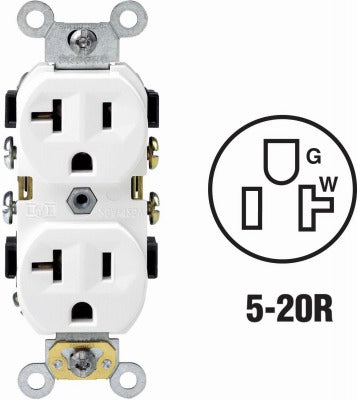

Leviton S02-0BR20-0WS 20A Commercial Duplex Outlet White 10-pack

Product Description

The LEVITON MFG CO S02-0BR20-0WS is a commercial-grade 20-amp duplex electrical outlet designed for demanding residential and light commercial wiring applications. Built with a shallow profile to maximize wiring room inside the box, this receptacle features large-head terminal screws and back-wiring clamps that accept up to No. 10 copper wire. Triple wire power contacts deliver maximum conductivity and reliable plug retention over repeated use cycles. Captive mounting screws speed up installation, and a heavy-gauge rust-resistant steel mounting strap adds long-term durability. This package includes 10 outlets. The unit carries UL listing and is backed by a limited 10-year warranty.

This receptacle is suited for commercial and residential electrical installations where code-grade performance and fast rough-in are required. The shallow box design is especially useful in retrofit work where box depth is limited. Washer-type break-off plaster ears allow flush alignment with wall surfaces, and break-off tabs enable easy conversion to a 2-circuit configuration when split-circuit wiring is needed. Licensed electricians typically specify this outlet for office buildouts, multi-family housing, and light commercial tenant improvements.

Key Features

• Shallow design provides maximum wiring room inside standard electrical boxes
• Side wired with large-head terminal screws and back-wiring clamps accepting up to No. 10 copper wire
• Triple wire power contacts for enhanced conductivity and plug retention
• Captive mounting screws for faster installation and reduced hardware loss
• Washer-type break-off plaster ears for flush wall alignment
• Break-off tabs allow easy 2-circuit conversion
• Heavy-gauge rust-resistant steel mounting strap

Compatibility

Designed as a commercial-grade 20-amp duplex receptacle for use in standard single-gang electrical boxes in residential and light commercial wiring systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the breaker panel and verify zero voltage with a meter before beginning any wiring work. Side-wiring with terminal screws is recommended for commercial-grade reliability over back-stab connections. Confirm proper grounding continuity before restoring power.
