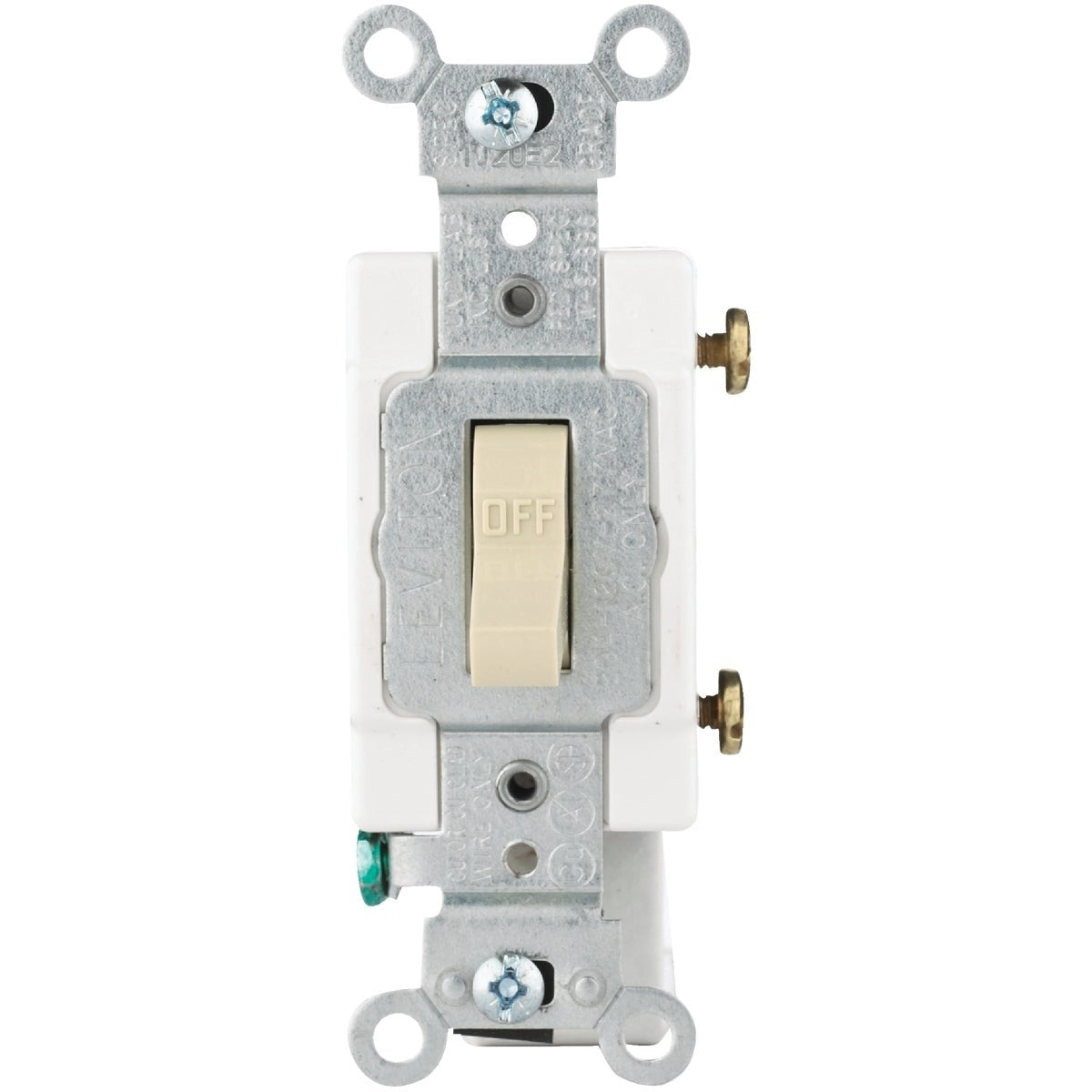

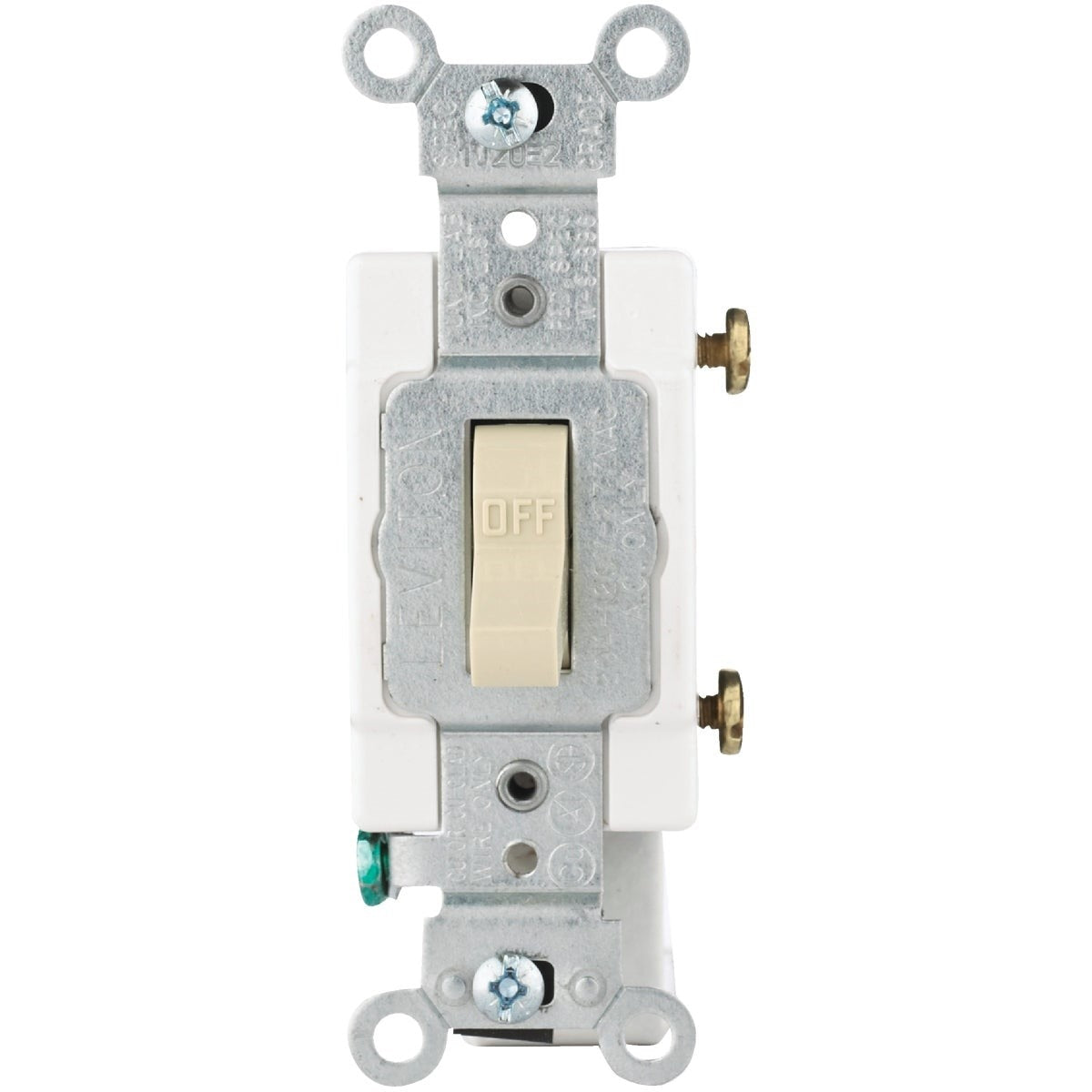

Leviton S01-CS115-2IS 15A Single Pole Toggle Switch Ivory

Product Description

The LEVITON S01-CS115-2IS is a commercial specification-grade single pole toggle switch rated at 15 amps for controlling one fixture or load from a single location. Built for demanding commercial environments, it features large silver-cadmium oxide contacts for extended contact life and heavy-gauge rust-resistant steel mounting strap construction. Captive mounting screws speed up installation, and large-head terminal screws are backed out and staked for fast side wiring of up to No. 10 copper wire. Licensed electricians install this switch in new construction and retrofit projects where commercial-grade durability is required.

This switch is suited for commercial and light industrial applications including municipal facilities, government buildings, hospitals, schools, office buildings, malls, and department stores. The break-off plaster ears allow for best box alignment across a range of wall assembly types, making it a practical choice for both new construction and renovation work. The ivory finish is a standard neutral color that coordinates with commercial wallplate selections in most commercial interiors.

Key Features

• Commercial specification grade construction for high-use environments
• Silver-cadmium oxide contacts rated for long service life
• Captive mounting screws and pre-backed terminal screws for fast installation
• Accepts up to No. 10 copper wire on side-wired terminals
• Heavy-gauge rust-resistant steel mounting strap with break-off plaster ears
• UL listed and backed by a limited 10-year warranty

Compatibility

Designed as a commercial specification-grade single pole toggle switch for standard single-gang wallbox installations controlling one circuit from one location.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Always shut off circuit power at the breaker panel and verify the circuit is de-energized with a non-contact voltage tester before beginning wiring. Single pole switches interrupt only the hot conductor and must be wired accordingly. Do not exceed the 15-amp rating of this device.

Technical Specifications

• Amperage: 15 amps
• Switch Type: Single Pole Toggle
• Grade: Commercial Specification
• Wire Compatibility: Up to No. 10 copper wire
• Mounting Strap Material: Heavy-gauge rust-resistant steel
• Color: Ivory
• Weight: 0.173 pounds
• Certifications: UL Listed
• Warranty: Limited 10-year

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: S01-CS115-2IS
